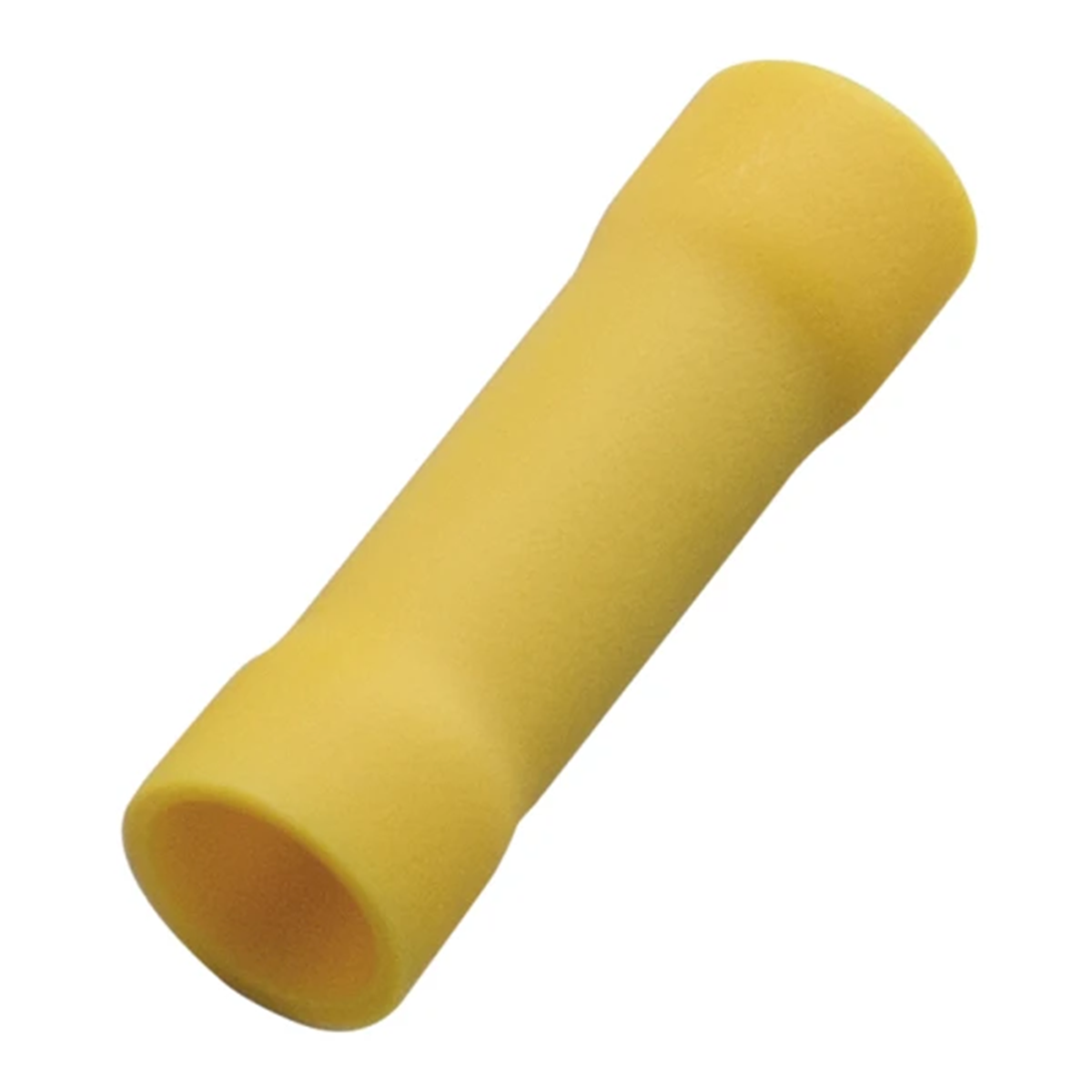

Insulator connecting terminal. 4.0-6mm 260354

local index:
TCI016HAUP
Catalog No:
260354
EAN code:
4011923089122
Manufacturer: HAUPA
Length [mm]: 26.7
Sleeve length [mm]: 15
Inner diameter [mm]: 3.4
Price:
13,58 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description



HTI - ferrule terminals color series I (French) • isolated
• made of electrolytic copper, tinned
• Dimensions according to DIN 46228. Part 4
• series of Colors I, French

Technical data

  • Length [mm]
    26.7
  • Inner diameter [mm]
    3.4
  • Sleeve length [mm]
    15
  • Outer diameter [mm]
    6.8

Other technical data

  • Nominal cross section
    4 ... 6.0 mm²
  • Sleeve form
    Long
  • Suitable for stranded conductors
    No
  • Suitable for high temperatures (to 650 °C)
    No
  • Suitable for round conductors
    Yes
  • Material
    Copper
  • Colour insulation
    Yellow
  • Type of connection
    Percussion connector
  • Oil stop/centre bar
    No
  • Model
    DIN-version
  • Suitable for solid conductors
    No
  • Suitable for fine strand conductors
    Yes
  • Suitable for insulated varnish
    No
  • Suitable for flat conductors
    No
  • Insulation
    Polyvinyl chloride (PVC)
  • Voltage level
    Up to 600 V
  • For pull protected connections
    No
