insulation sleeve 0.5-1.0/5.2x0.8 260400

local index:
TCI096HAUP
Catalog No:
260400
EAN code:
4011923089313
Manufacturer: HAUPA
Length [mm]: 18.7
Color: Red
Mesh diameter [mm]: 5.5
Price:
9,80 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

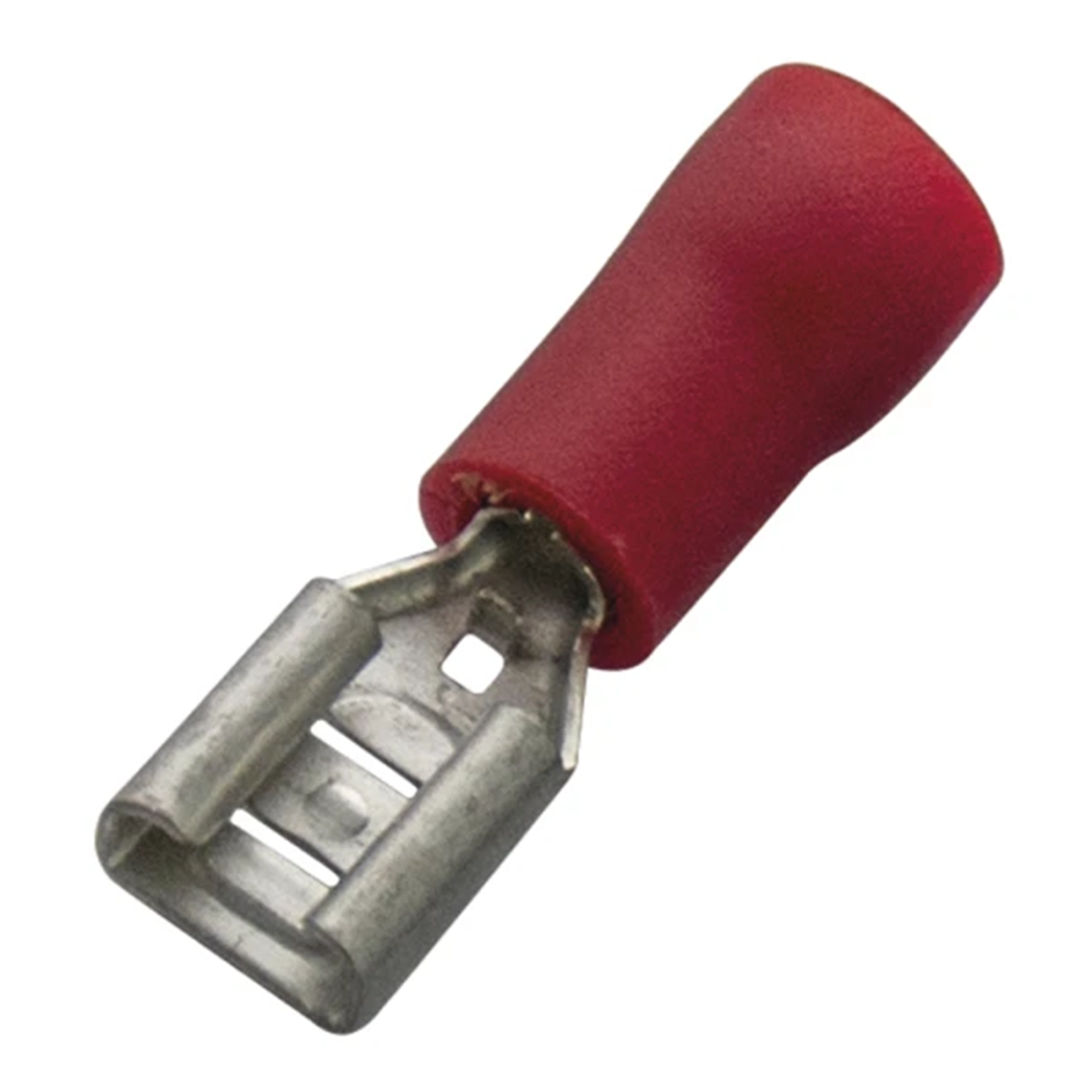

Insulated connector terminal made of electrolytic copper tin-plated PVC insulation Easy Entry elongated insulating sleeve

Technical data

  • Length [mm]
    18.7
  • Mesh diameter [mm]
    5.5
  • Package height [mm]
    50
  • Package weight [kg]
    0.3
  • Socket size
    5.2x0.8
  • cross section [mm²]
    1
  • Insulation material
    Partially insulated
  • Color
    Red
  • Outer diameter [mm]
    3.5
  • Package width [mm]
    50
  • Package length [mm]
    50
  • Plug length [mm]
    6.4
  • Accurate color
    Red
  • Wire cross-section [mm²]
    1

Other technical data

  • Model
    Bushing
  • Insulation
    Partially isolated
  • Material insulation
    Polyvinyl chloride (PVC)
  • Nominal cross section
    0.5 ... 1.0 mm²
  • Colour insulation
    Red
  • Material
    Brass
