Insulated spade terminals 1.5-2.5 M3 260710

local index:
TCI150HAUP
Catalog No:
260710
EAN code:
4011923105211
Manufacturer: HAUPA
Length [mm]: 23
Shape: Spade
Hole diameter [mm]: 3.2
Price:
8,15 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

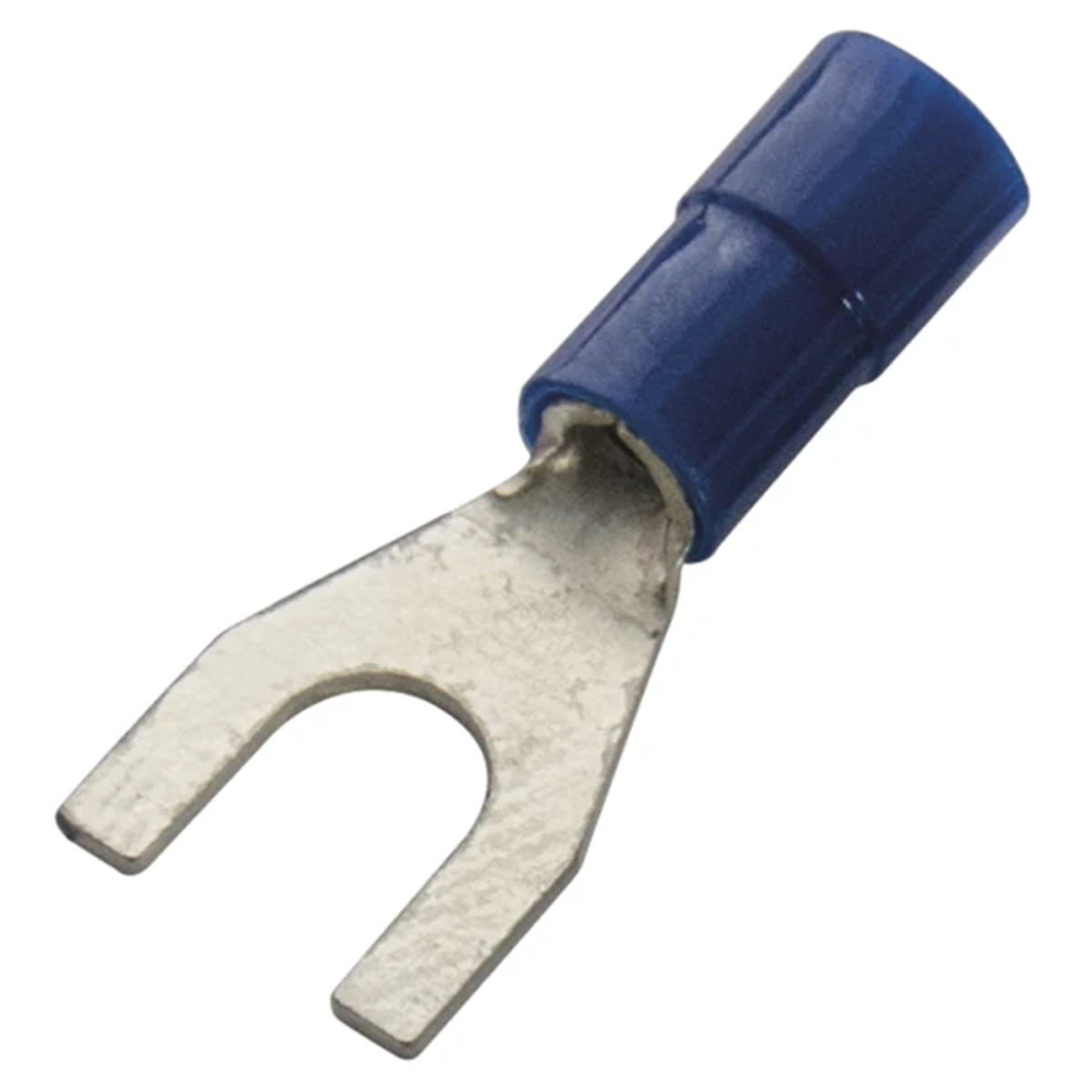

Crimp cable lug for copper conductors, electrolytic copper insulated spade lug DIN 46237 nylon insulated Easy Entry

Technical data

  • Length [mm]
    23
  • Hole diameter [mm]
    3.2
  • With insulation
    Yes
  • Package width [mm]
    20
  • Package length [mm]
    40
  • cross section [mm²]
    2.5
  • Shape
    Spade
  • Outer diameter [mm]
    2.45
  • Package height [mm]
    20
  • Package weight [kg]
    0.4
  • DIN compliant
    Yes
  • Wire cross-section [mm²]
    2.5

Other technical data

  • Bolt dimension (metric)
    3
  • Nominal cross section
    1.5 ... 2.5 mm²
  • Flange shape
    Fork shape
