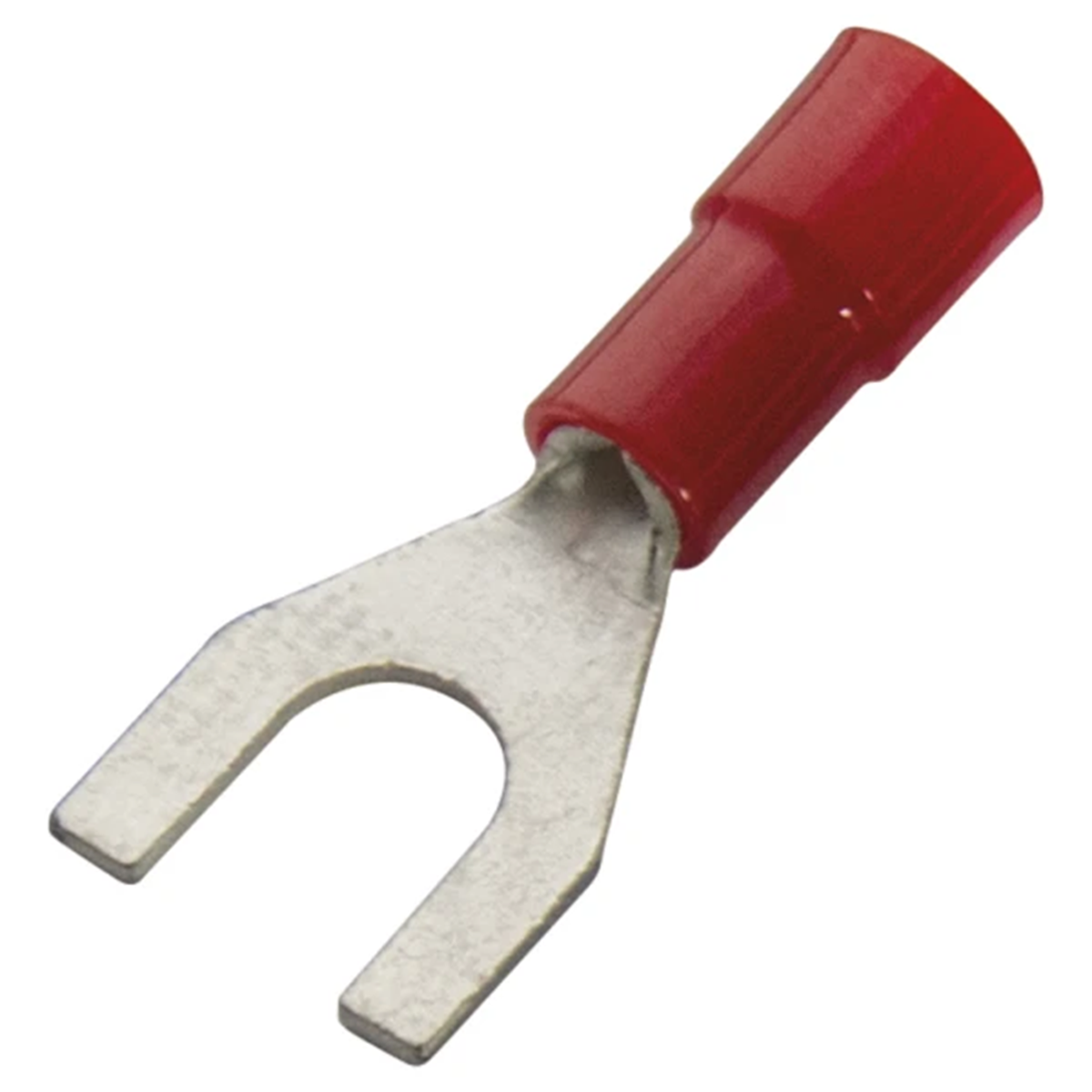

Insulated spade terminals 0.25-1.5 M3.5 260702

local index:
TCI146HAUP
Catalog No:
260702
EAN code:
4011923105174
Manufacturer: HAUPA
Length [mm]: 19.4
Shape: Spade
Hole diameter [mm]: 3.7
Price:
8,31 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Crimp cable lug for copper conductors, fork insulated made of electrolytic copper DIN 46237 nylon insulated Easy Entry

Technical data

  • Length [mm]
    19.4
  • Hole diameter [mm]
    3.7
  • With insulation
    Yes
  • Package width [mm]
    20
  • Package length [mm]
    40
  • cross section [mm²]
    1.5
  • Shape
    Spade
  • Outer diameter [mm]
    1.95
  • Package height [mm]
    20
  • Package weight [kg]
    0.4
  • DIN compliant
    Yes
  • Wire cross-section [mm²]
    1.5

Other technical data

  • Bolt dimension (metric)
    3.5
  • Nominal cross section
    0.5 ... 1.0 mm²
  • Flange shape
    Fork shape
