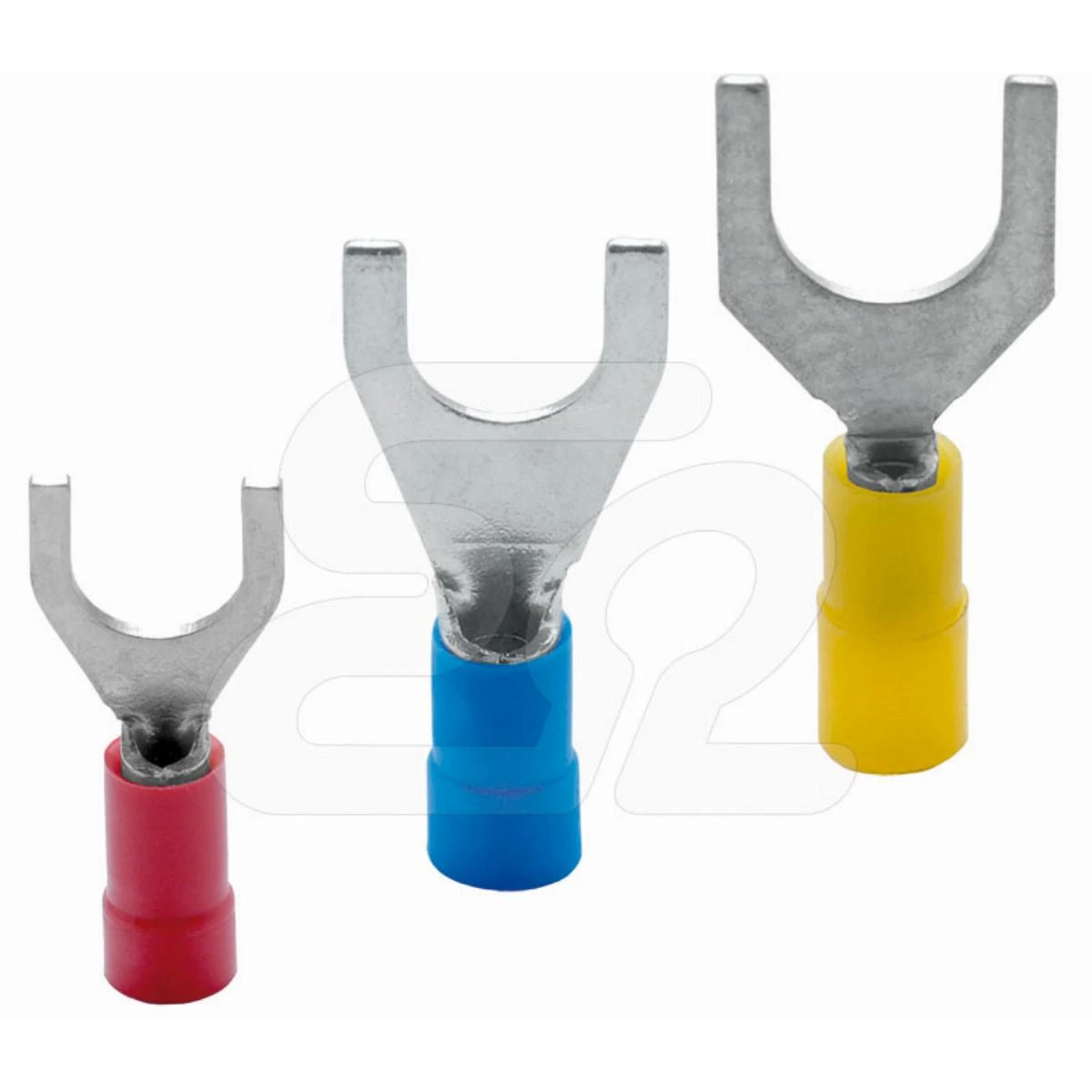

Insulated spade cable terminal KWI 6/8 100 pcs E09KO-02030102700

local index:
TCI157ERGO
Catalog No:
E09KO-02030102700
EAN code:
5900003123100
Manufacturer: ERGOM
Length to center of hole [mm]: 25
Sleeve length [mm]: 6
Thickness [mm]: 1
Price:
18,03 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Accessible 15 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Insulated spade cable terminal KWI 6/8 from the manufacturer ERGOM. The product catalog number is E09KO-02030102700.

  • Cu fork terminal according to DIN with polyamide insulating sleeve marked with screw size and wire cross-section on the fin.
  • Insulating sleeve: increases the vibration resistance of the connection, reduces the risk of a short-circuit, facilitates cable assembly.
  • The color of the sleeve makes it easier to identify the cross-section.

Technical data

  • Length to center of hole [mm]
    25
  • Thickness [mm]
    1
  • Material
    Copper
  • Type
    fork
  • Inner diameter [mm]
    3.6
  • cross section [mm²]
    4 6
  • Wire cross-section [mm²]
    6
  • PKWIU
    27.33.13.0
  • Sleeve length [mm]
    6
  • Color
    Yellow
  • short name
    APR 6/8
  • Flange width [mm]
    14
  • Execution
    AND
  • Insulation material
    Polyamide 6.6
  • Coverage
    Tin plated

Other technical data

  • Bolt dimension (metric)
    8
  • According to DIN
    Yes
  • Flange shape
    Fork shape
  • Nominal cross section
    4 ... 6 mm²

Manufacturer details

Bulk packaging

A kind of package Sztuka
Quantity 1 pkg.
Weight (kg) 0,218
Width (m) 0,010
Length (m) 0,010
Depth (m) 0,010
