Insulated spade cable terminal KWI 6/3.5 100 pcs E09KO-02030102300
local index:
TCI168ERGO
Catalog No:
E09KO-02030102300
EAN code:
5900003122981
Price:
19,50 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

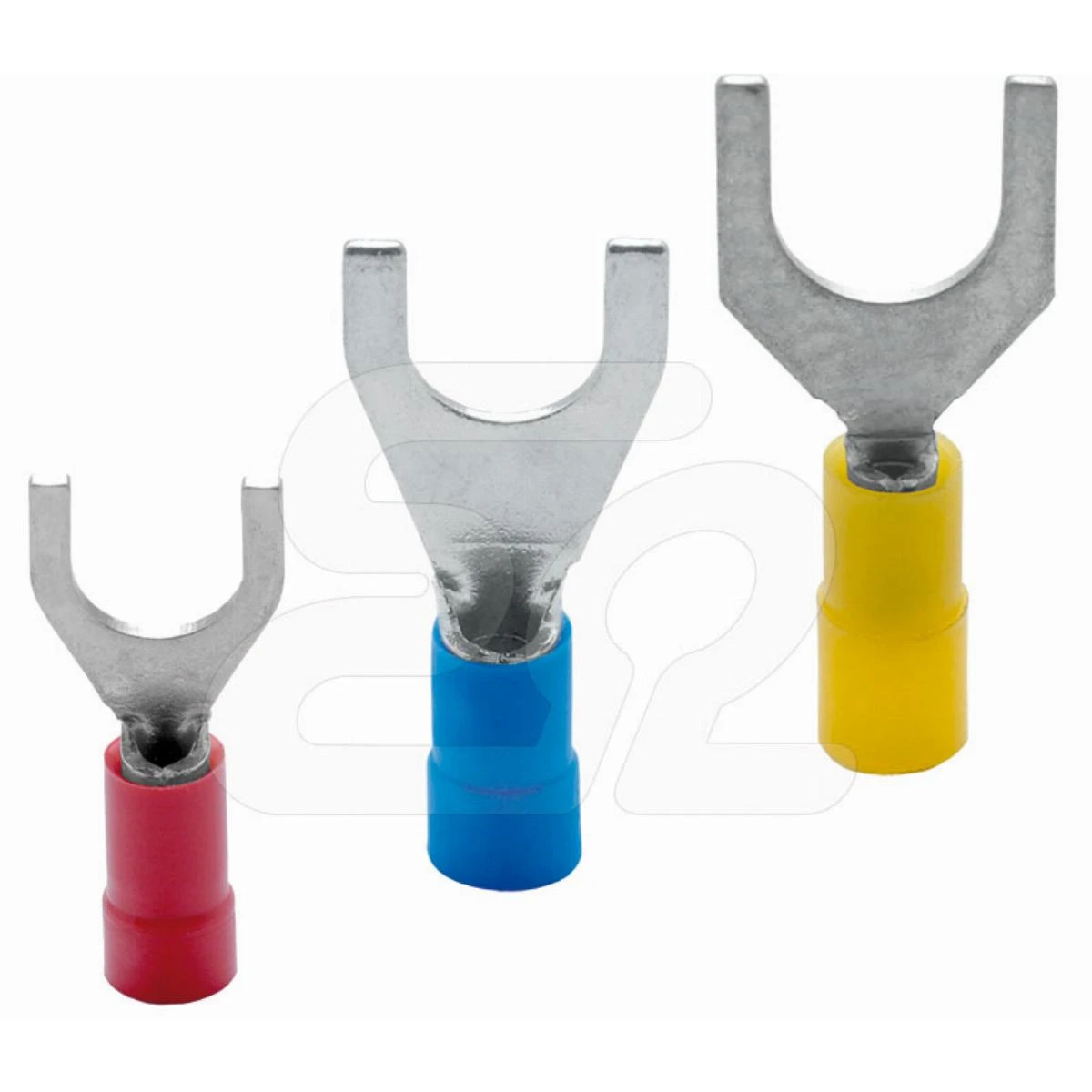

Insulated spade cable terminal KWI 6/3.5 from the manufacturer ERGOM. The product catalog number is < strong>E09KO-02030102300.
- Cu/DIN spade terminal with polyamide insulating sleeve marked with screw size and wire cross-section on the fin.
- Sleeve insulating: increases the vibration resistance of the connection, reduces the risk of a short circuit, facilitates cable assembly.
- The color of the sleeve makes it easier to identify the cross-section.
Technical data
-
Length to center of hole [mm]20
-
Thickness [mm]1
-
MaterialCopper
-
Typefork
-
Inner diameter [mm]3.6
-
cross section [mm²]4 6
-
Insulation materialPolyamide 6.6
-
CoverageTin plated
-
Sleeve length [mm]6
-
ColorYellow
-
short nameAPR 6/3.5
-
Flange width [mm]8
-
ExecutionAND
-
Accurate colorYellow
-
Wire cross-section [mm²]6
-
PKWIU27.33.13.0
Other technical data
-
Bolt dimension (metric)3.5
-
According to DINYes
-
Flange shapeFork shape
-
Nominal cross section4 ... 6 mm²
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pkg. |
| Weight (kg) | 0,162 |
| Width (m) | 0,010 |
| Length (m) | 0,010 |
| Depth (m) | 0,010 |
