Insulated spade cable terminal KWI 1/8 100 pcs E09KO-02030101300
local index:
TCI097ERGO
Catalog No:
E09KO-02030101300
EAN code:
5900003122592
Price:
23,23 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

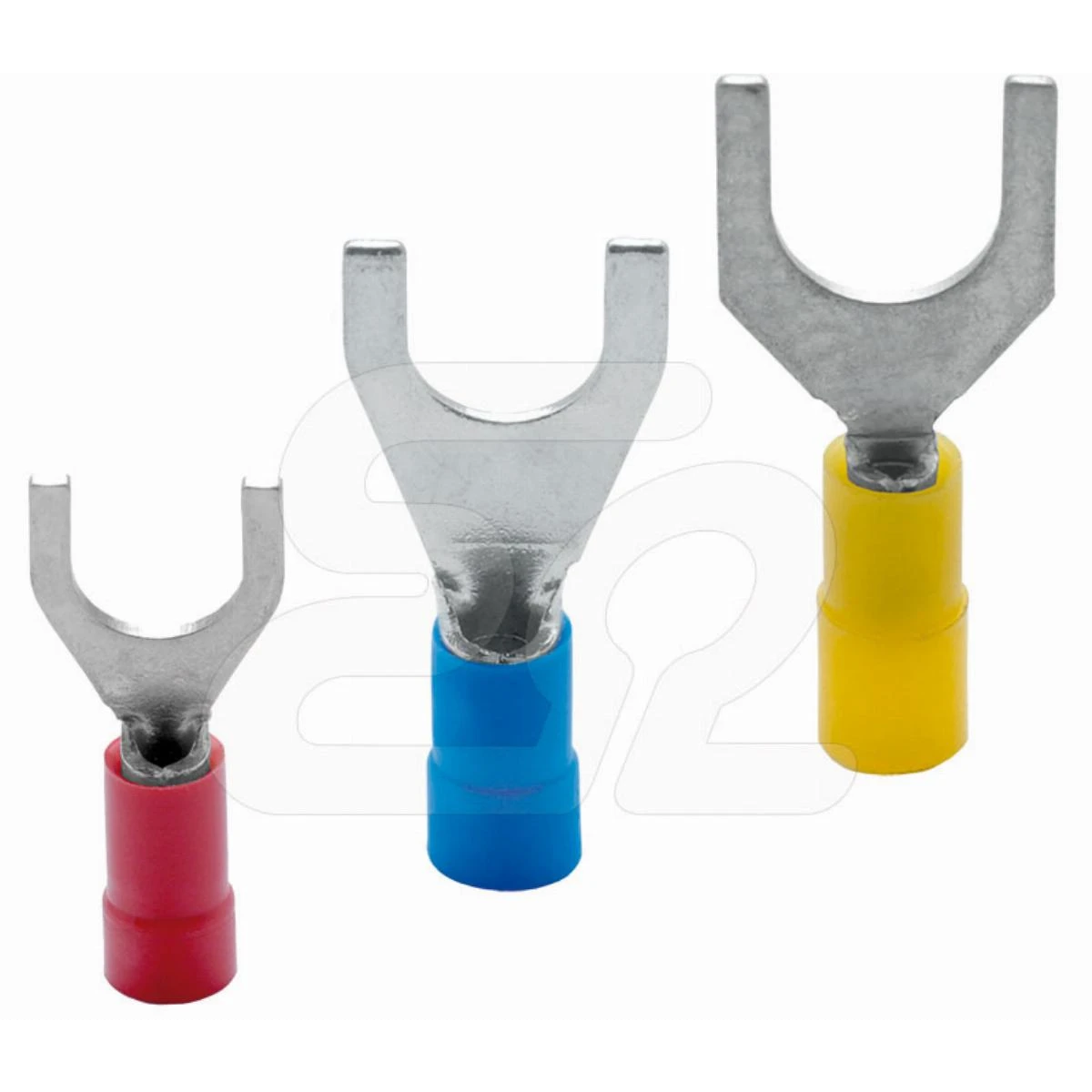

Insulated spade cable terminal KWI 1/8 from the manufacturer ERGOM. The product catalog number is E09KO-02030101300.
- Cu fork terminal according to DIN with polyamide insulating sleeve marked with screw size and wire cross-section on the fin.
- Insulating sleeve: increases the vibration resistance of the connection, reduces the risk of a short circuit, facilitates cable assembly.
- The color of the sleeve makes it easier to identify the cross-section.
Technical data
-
Length to center of hole [mm]19.2
-
Thickness [mm]0.8
-
MaterialCopper
-
Flange width [mm]14
-
Executionb
-
Insulation materialPolyamide 6.6
-
PKWIU27.33.13.0
-
Sleeve length [mm]5
-
ColorRed
-
Typefork
-
Inner diameter [mm]1.6
-
cross section [mm²]0.75 1
-
CoverageTin plated
Other technical data
-
Bolt dimension (metric)8
-
According to DINYes
-
Flange shapeFork shape
-
Nominal cross section0.75 ... 1 mm²
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pkg. |
| Weight (kg) | 0,114 |
| Width (m) | 0,010 |
| Length (m) | 0,010 |
| Depth (m) | 0,010 |
