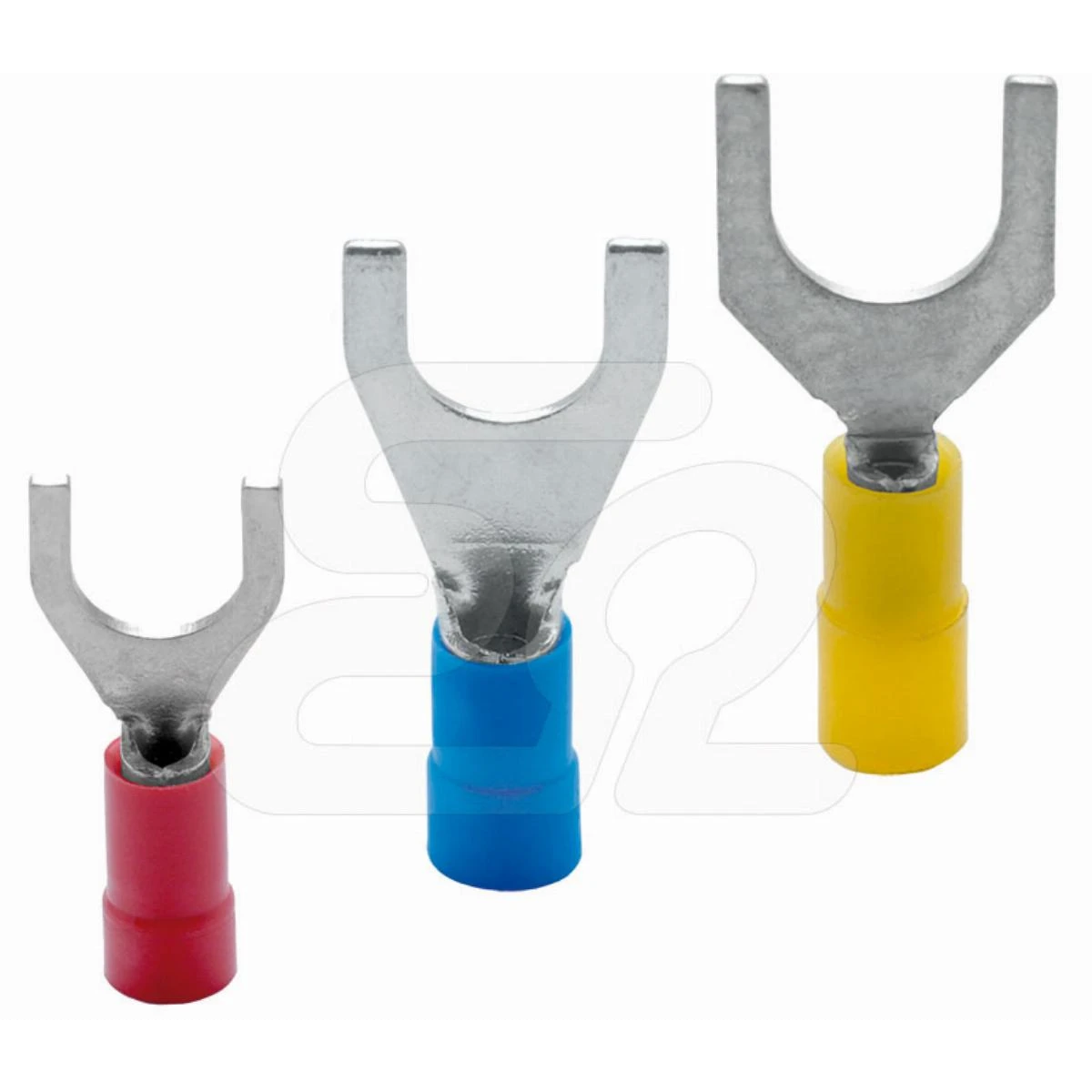

Insulated spade cable terminal KWI 1/4 100 pcs E09KO-02030101000

Index local:
TCI193ERGO
Numéro de catalogue:
E09KO-02030101000
Code EAN:
5900003330836
Producteur: ERGOM
Length to center of hole [mm]: 17
Sleeve length [mm]: 5
Thickness [mm]: 0.8
Prix:
8,78 €
gross / pack
(y compris la TVA 23%)
0,09 € gross/pcs.
Livraison en 3h
Accessible 10 pack
Ramassage en 1h
Quantité pack
(plusieurs:
1
)
Ajouter au presse-papiers
Imprimer

Description du produit

Insulated spade cable terminal KWI 1/4 from the manufacturer ERGOM. The product catalog number is E09KO-02030101000.

  • Cu fork terminal according to DIN with polyamide insulating sleeve marked with screw size and wire cross-section on the fin.
  • Insulating sleeve: increases the vibration resistance of the connection, reduces the risk of a short-circuit, facilitates cable assembly.
  • The color of the sleeve makes it easier to identify the cross-section.

Données techniques

  • Length to center of hole [mm]
    17
  • Thickness [mm]
    0.8
  • Material
    Copper
  • Type
    fork
  • Pieces in the package
    100
  • Execution
    AND
  • Insulation material
    Polyamide 6.6
  • Coverage
    Tin plated
  • Sleeve length [mm]
    5
  • Color
    Red
  • short name
    APR 1/4
  • Flange width [mm]
    8
  • Inner diameter [mm]
    1.6
  • cross section [mm²]
    0.75 1
  • Wire cross-section [mm²]
    1
  • PKWIU
    27.33.13.0

Autres données techniques

  • Bolt dimension (metric)
    4
  • According to DIN
    Yes
  • Flange shape
    Fork shape
  • Nominal cross section
    0.75 ... 1 mm²

Détails du fabricant

  • Producteur
    Zakład Aparatury Elektrycznej Ergom Sp. z o.o.
  • Adresse
    94-102 Łódź Nowe Sady 10 Polska

Emballage en vrac

Une sorte de paquet Sztuka
Quantité 1 pack
poids (kg) 0,073
Largeur (m) 0,010
Longueur (m) 0,010
Profondeur (m) 0,010
