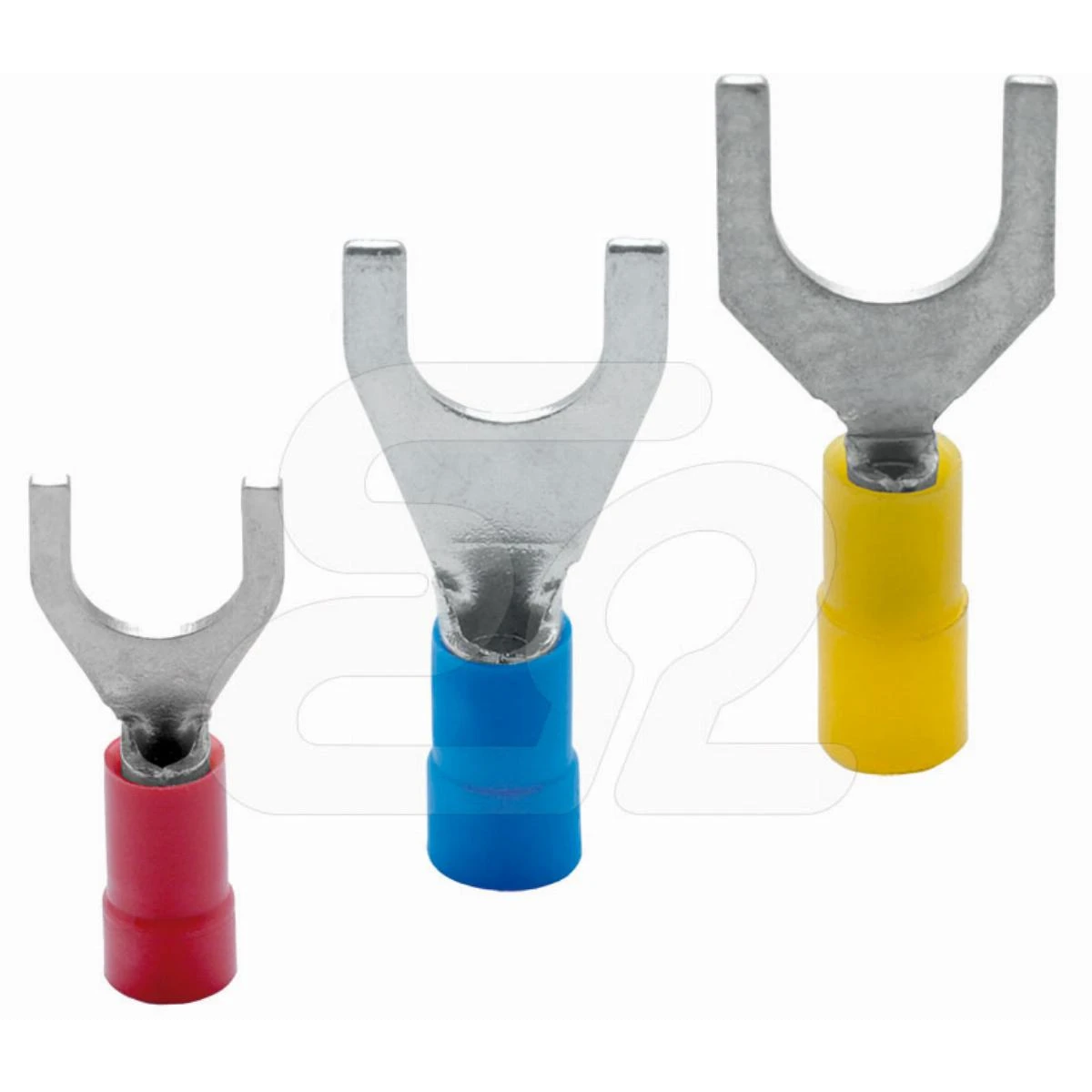

Insulated spade cable terminal KWI 1/3.5 100 pcs E09KO-02030100900

local index:
TCI575ERGO
Catalog No:
E09KO-02030100900
EAN code:
5900003122448
Manufacturer: ERGOM
Length to center of hole [mm]: 16
Sleeve length [mm]: 5
Thickness [mm]: 0.8
Price:
9,78 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Accessible 12 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Insulated spade cable terminal KWI 1/3.5 from the manufacturer ERGOM. The product catalog number is < strong>E09KO-02030100900.

  • Cu/DIN spade terminal with polyamide insulating sleeve marked with screw size and wire cross-section on the fin.
  • Sleeve insulating: increases the vibration resistance of the connection, reduces the risk of a short circuit, facilitates cable assembly.
  • The color of the sleeve makes it easier to identify the cross-section.

Technical data

  • Length to center of hole [mm]
    16
  • Thickness [mm]
    0.8
  • Material
    Copper
  • Flange width [mm]
    6
  • Execution
    AND
  • Insulation material
    Polyamide 6.6
  • PKWIU
    27.33.13.0
  • Sleeve length [mm]
    5
  • Color
    Red
  • Type
    fork
  • Inner diameter [mm]
    1.6
  • cross section [mm²]
    0.75 1
  • Coverage
    Tin plated

Other technical data

  • Bolt dimension (metric)
    3.5
  • According to DIN
    Yes
  • Flange shape
    Fork shape
  • Nominal cross section
    0.75 ... 1 mm²

Bulk packaging

A kind of package Sztuka
Quantity 1 pkg.
Weight (kg) 0,061
Width (m) 0,010
Length (m) 0,010
Depth (m) 0,010
