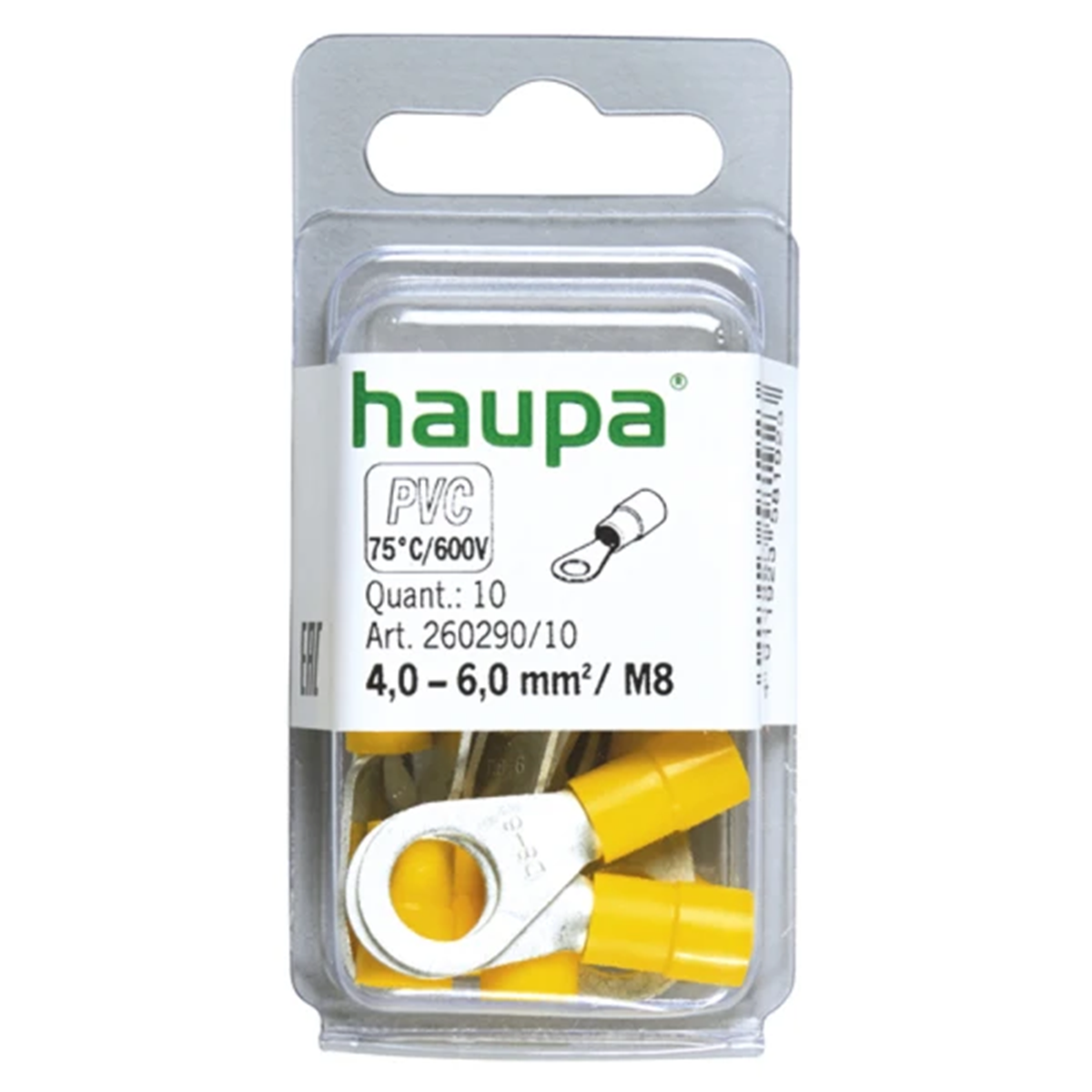

Insulated ring terminal DIN 4-6 metric thread M8 260290/10/B

local index:
TCI481HAUP
Catalog No:
260290/10/B
EAN code:
4011923581923
Manufacturer: HAUPA
Length [mm]: 37
Length to center of hole [mm]: 15.3
Sleeve length [mm]: 14
Price:
1,81 €
gross / pkg.
(including VAT 23%)
0,18 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Light terminals DIN 46237 "SmallPack":

  • made of electrolytic copper, tin-plated,
  • PVC insulated with extended insulating tip, suitable for for complex ducts,
  • Easy Entry.

Technical data

  • Length [mm]
    37
  • Sleeve length [mm]
    14
  • Flange width [mm]
    15
  • Hole diameter [mm]
    8.2
  • Outer diameter [mm]
    6.6
  • Wire cross-section [mm²]
    4 6
  • Length to center of hole [mm]
    15.3
  • Thread
    M8
  • Pieces in the package
    10
  • Inner diameter [mm]
    3.5
  • cross section [mm²]
    4-6
