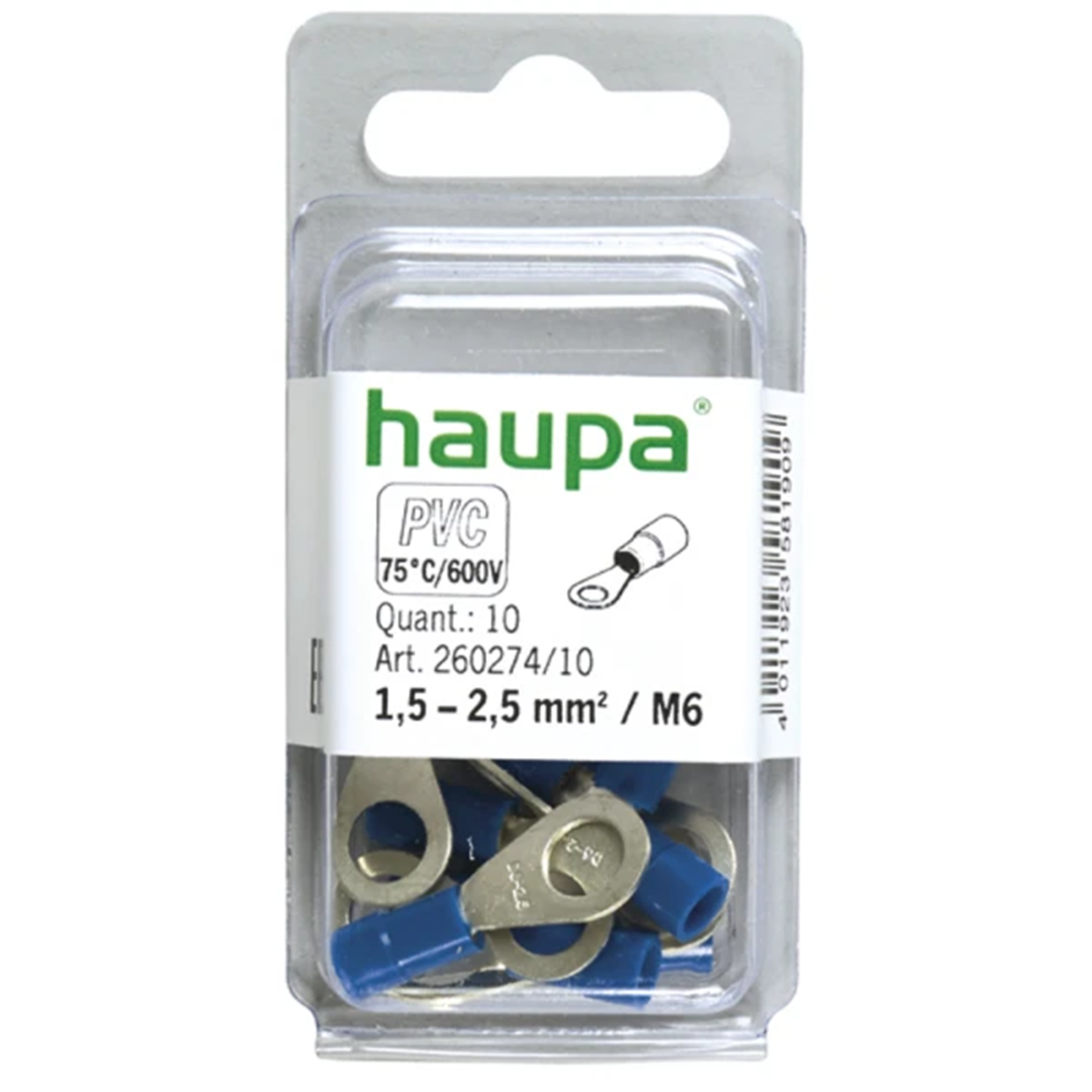

Insulated ring terminal DIN 1.5-2.5mm2 M6 260274/10/B

local index:
TCI391HAUP
Catalog No:
260274/10/B
EAN code:
4011923581909
Manufacturer: HAUPA
Length [mm]: 28
Length to center of hole [mm]: 11.7
Sleeve length [mm]: 11
Price:
1,13 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Accessible 93 pkg.
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

DIN "SmallPack" insulated ring terminal:

  • made of electrolytic copper, tin-plated,
  • PVC insulated with extended insulating tip, suitable for stranded wires,
  • Easy Entry.

Technical data

  • Length [mm]
    28
  • Sleeve length [mm]
    11
  • Color
    Blue
  • Type
    Oczkowa
  • Hole diameter [mm]
    6.2
  • Outer diameter [mm]
    4.8
  • Insulation material
    PVC
  • Screw hole
    M6
  • Length to center of hole [mm]
    11.7
  • Thread
    M6
  • Material
    Copper
  • Flange width [mm]
    11
  • Inner diameter [mm]
    2.45
  • cross section [mm²]
    1.5-2.5
  • Wire cross-section [mm²]
    1.5-2.5
  • Coverage
    Tin plated
