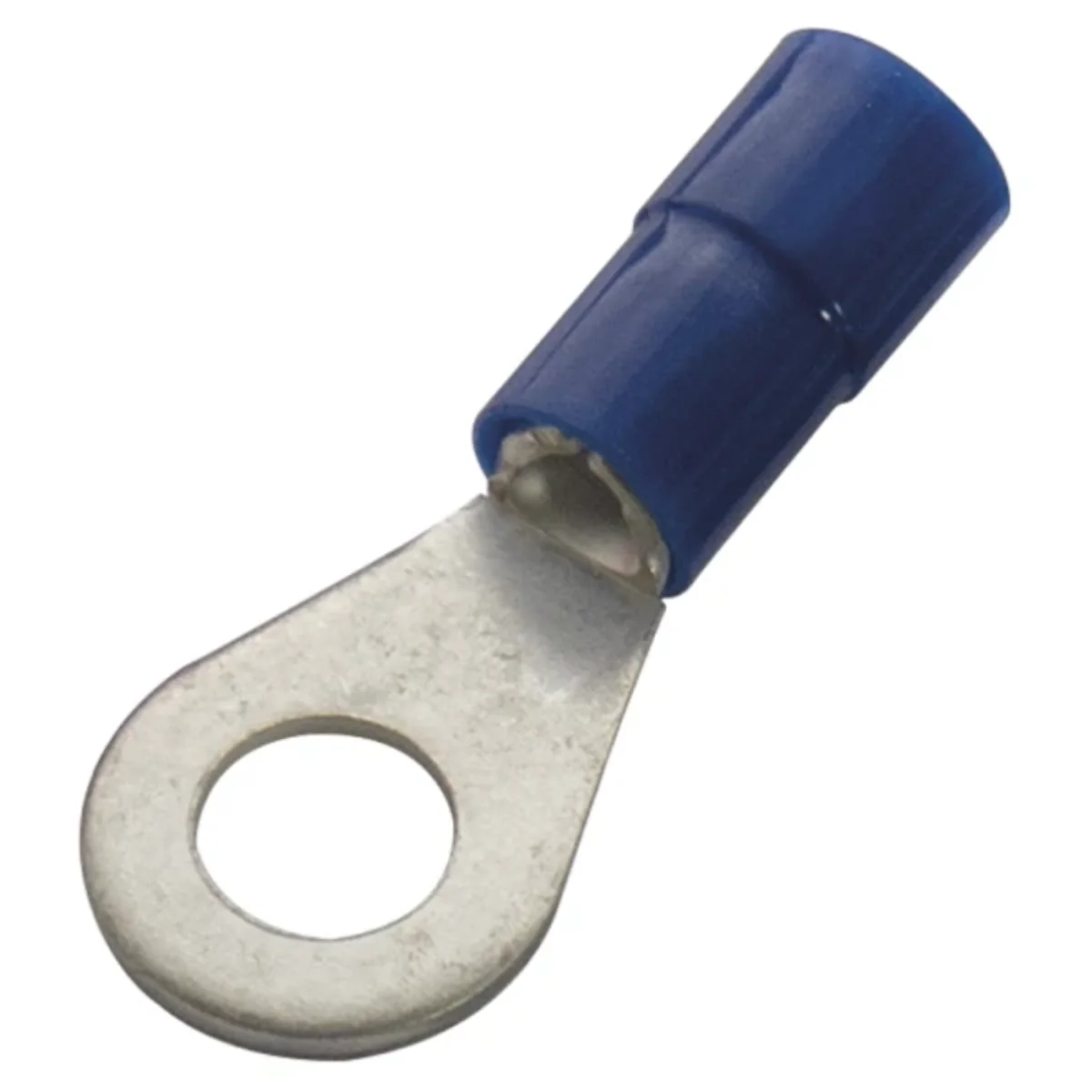

Insulated ring terminal DIN 1.5-2.5 M4 260270

local index:
TCI023HAUP
Catalog No:
260270
EAN code:
4011923088651
Manufacturer: HAUPA
Length [mm]: 23
Length to center of hole [mm]: 8
Sleeve length [mm]: 11
Price:
7,10 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Insulated ring terminals DIN 46237 • of electrolytic copper, tinned • insulated in PVC with an extended insulating tip, suitable for multi-wire cables • Easy Entry

Technical data

  • Length [mm]
    23
  • Sleeve length [mm]
    11
  • Inner diameter [mm]
    2.45
  • cross section [mm²]
    2.5
  • Length to center of hole [mm]
    8
  • Flange width [mm]
    8
  • Outer diameter [mm]
    4.8
  • Wire cross-section [mm²]
    2.5

Other technical data

  • Bolt dimension (metric)
    4
  • Nominal cross section
    1.5 ... 2.5 mm²
  • Flange shape
    Ring shape
