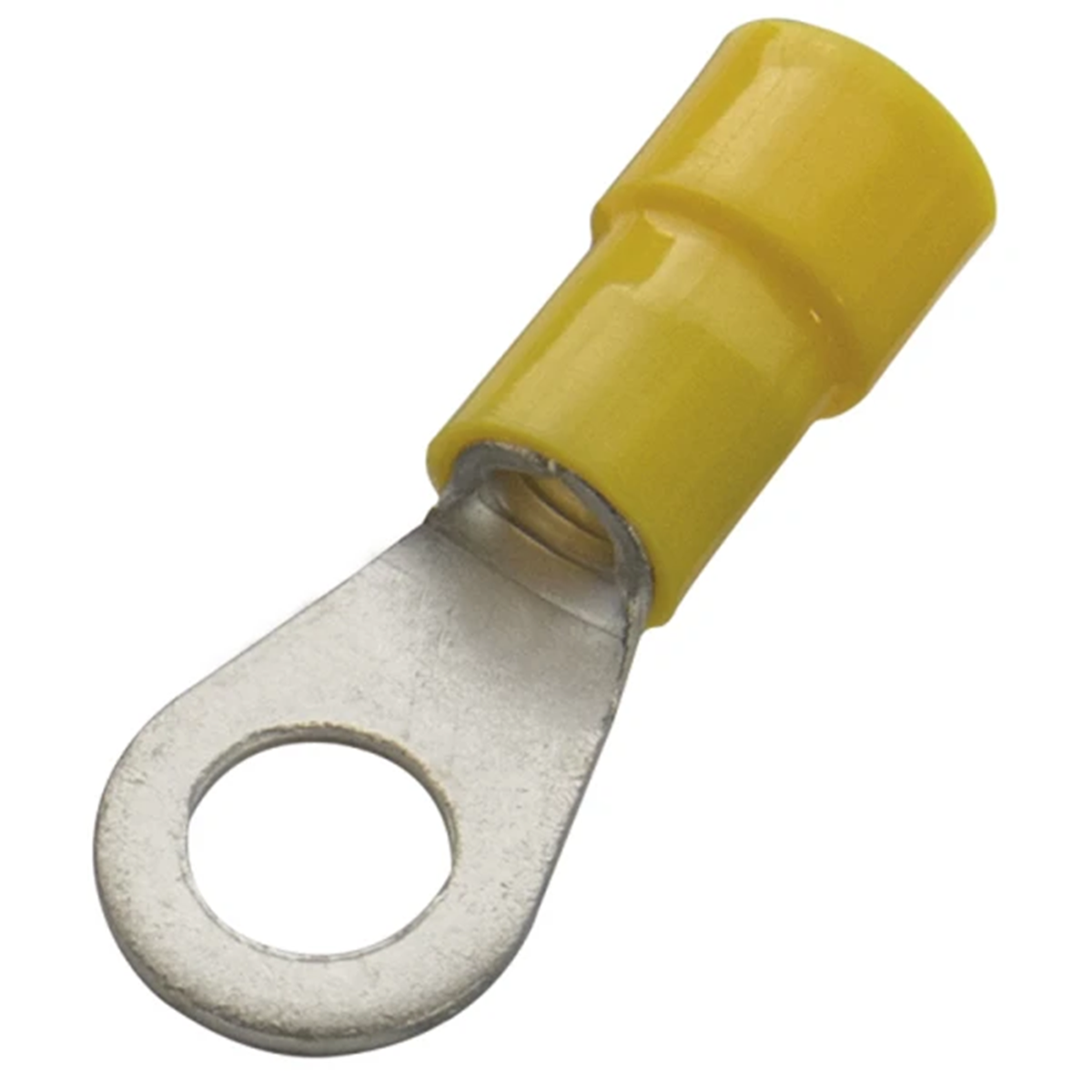

Insulated ring terminal 2.5-6 M5 260686

local index:
TCI142HAUP
Catalog No:
260686
EAN code:
4011923105129
Manufacturer: HAUPA
Length [mm]: 29.6
Shape: Eyelet
Mesh diameter [mm]: 10
Price:
14,98 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cable terminal crimped to copper wires. Insulated ring terminals made of electrolytic copper, tin-plated, nylon insulation with extended "Easy Entry" insulation.

Technical data

  • Length [mm]
    29.6
  • Mesh diameter [mm]
    10
  • Outer diameter [mm]
    3.5
  • Package height [mm]
    20
  • Package weight [kg]
    0.4
  • DIN compliant
    Yes
  • Wire cross-section [mm²]
    2.5
  • Shape
    Eyelet
  • Hole diameter [mm]
    5.2
  • With insulation
    Yes
  • Package width [mm]
    20
  • Package length [mm]
    40
  • cross section [mm²]
    2.5

Other technical data

  • Bolt dimension (metric)
    5
  • Nominal cross section
    4 ... 6.0 mm²
  • Flange shape
    Ring shape
