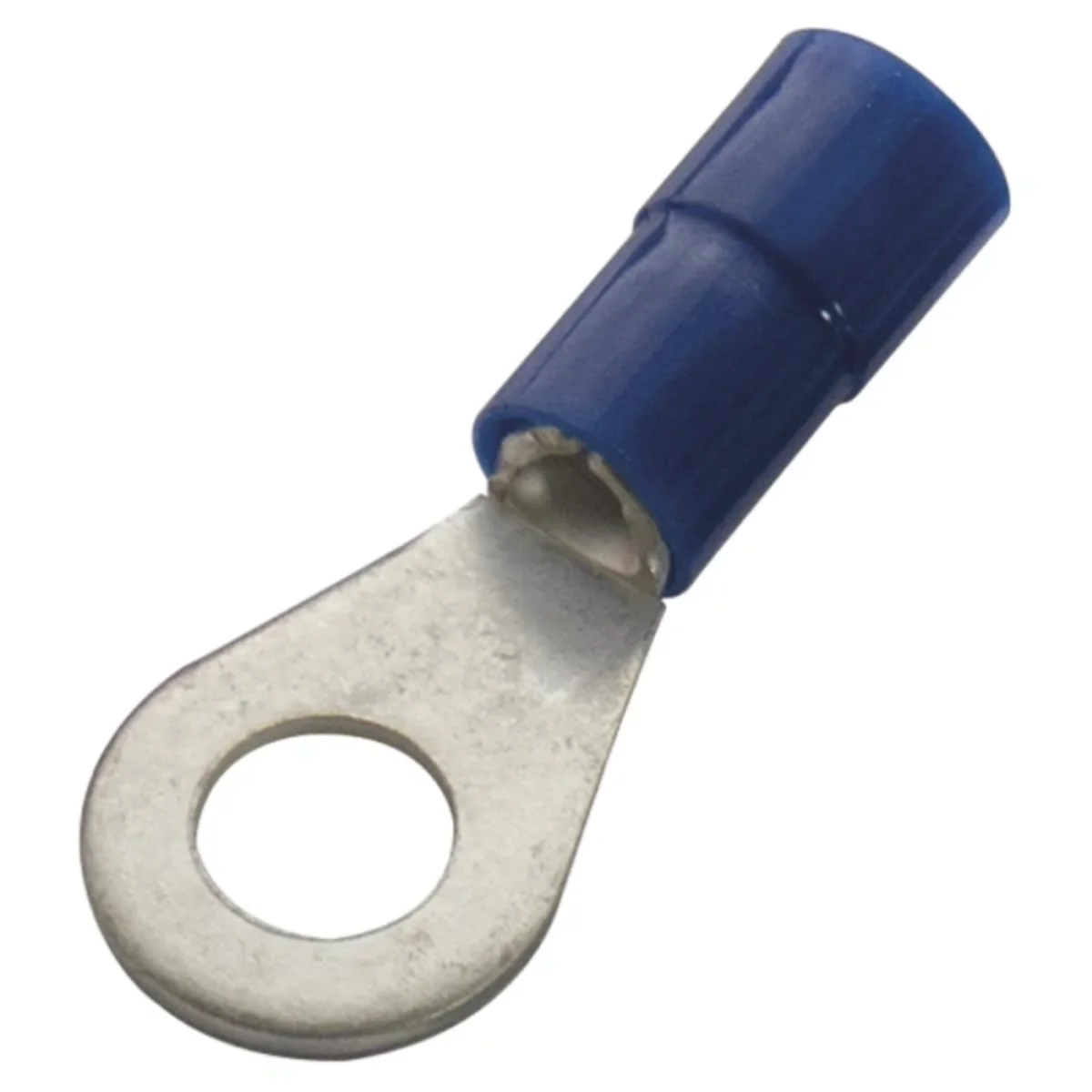

Insulated ring terminal 1.5-2.5 M6 260674

local index:
TCI112HAUP
Catalog No:
260674
EAN code:
4011923105082
Manufacturer: HAUPA
Length [mm]: 28
Outer diameter [mm]: 4.8
cross section [mm²]: 2.5
Price:
10,93 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description



DIN 46237 insulated lug terminals
• of electrolytic copper, tinned
• insulated in nylon, with an extended insulating sheath, suitable for complex conductors
• Easy Entry

Technical data

  • Length [mm]
    28
  • cross section [mm²]
    2.5
  • Outer diameter [mm]
    4.8
  • Wire cross-section [mm²]
    2.5

Other technical data

  • Bolt dimension (metric)
    6
  • Nominal cross section
    1.5 ... 2.5 mm²
  • Flange shape
    Ring shape
