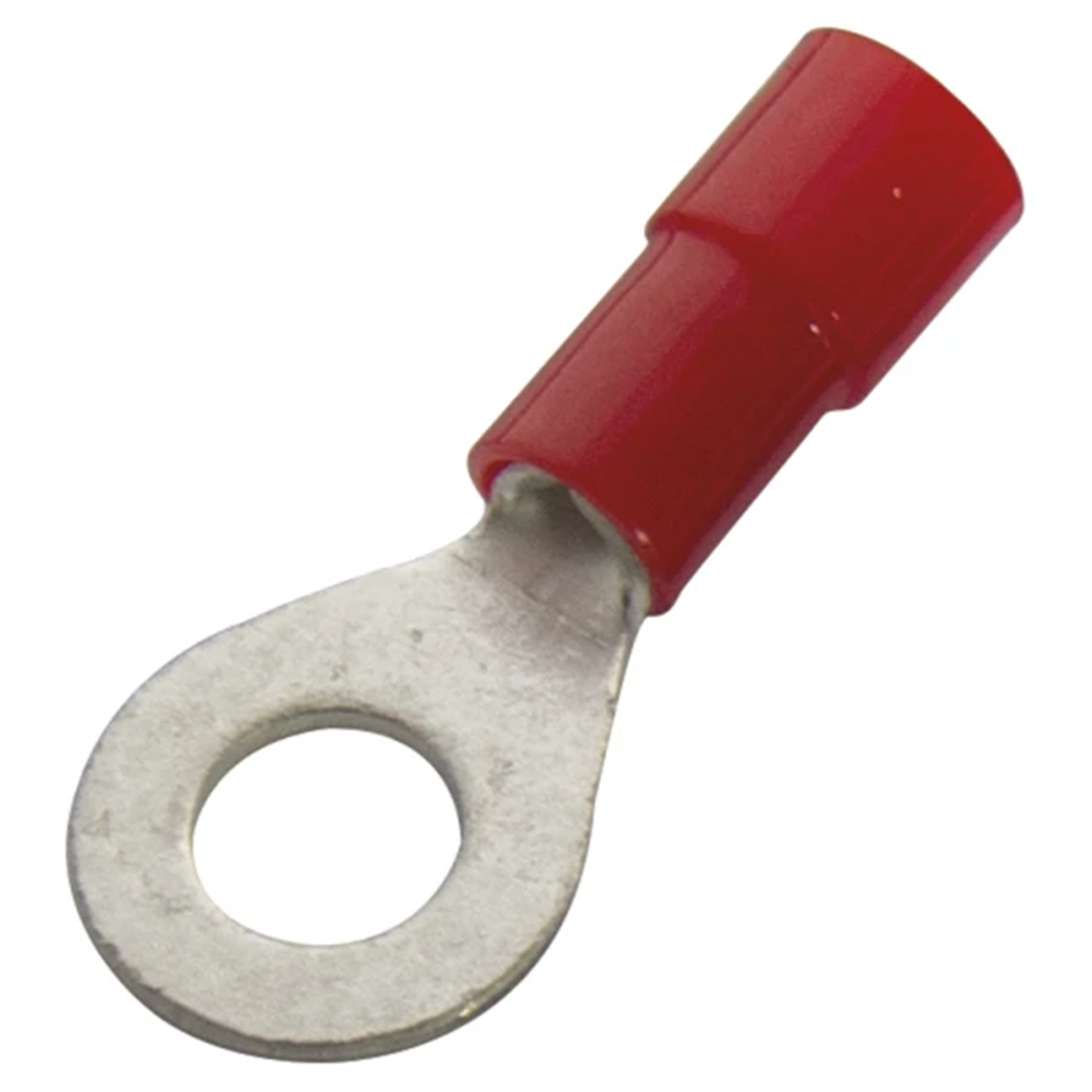

Insulated ring terminal 0.5 -1.0 M5 260658

local index:
TCI133HAUP
Catalog No:
260658
EAN code:
4011923105006
Manufacturer: HAUPA
Length [mm]: 22.4
Shape: Eyelet
Hole diameter [mm]: 5.2
Price:
9,36 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Cable terminal crimped to copper wires. Insulated ring terminals made of electrolytic copper, tin-plated, nylon insulation with extended "Easy Entry" insulation.

Technical data

  • Length [mm]
    22.4
  • Hole diameter [mm]
    5.2
  • With insulation
    Yes
  • Package width [mm]
    20
  • Package length [mm]
    40
  • cross section [mm²]
    1
  • Shape
    Eyelet
  • Outer diameter [mm]
    1.95
  • Package height [mm]
    20
  • Package weight [kg]
    0.4
  • DIN compliant
    Yes
  • Wire cross-section [mm²]
    1

Other technical data

  • Bolt dimension (metric)
    5
  • Nominal cross section
    0.5 ... 1.0 mm²
  • Flange shape
    Ring shape
