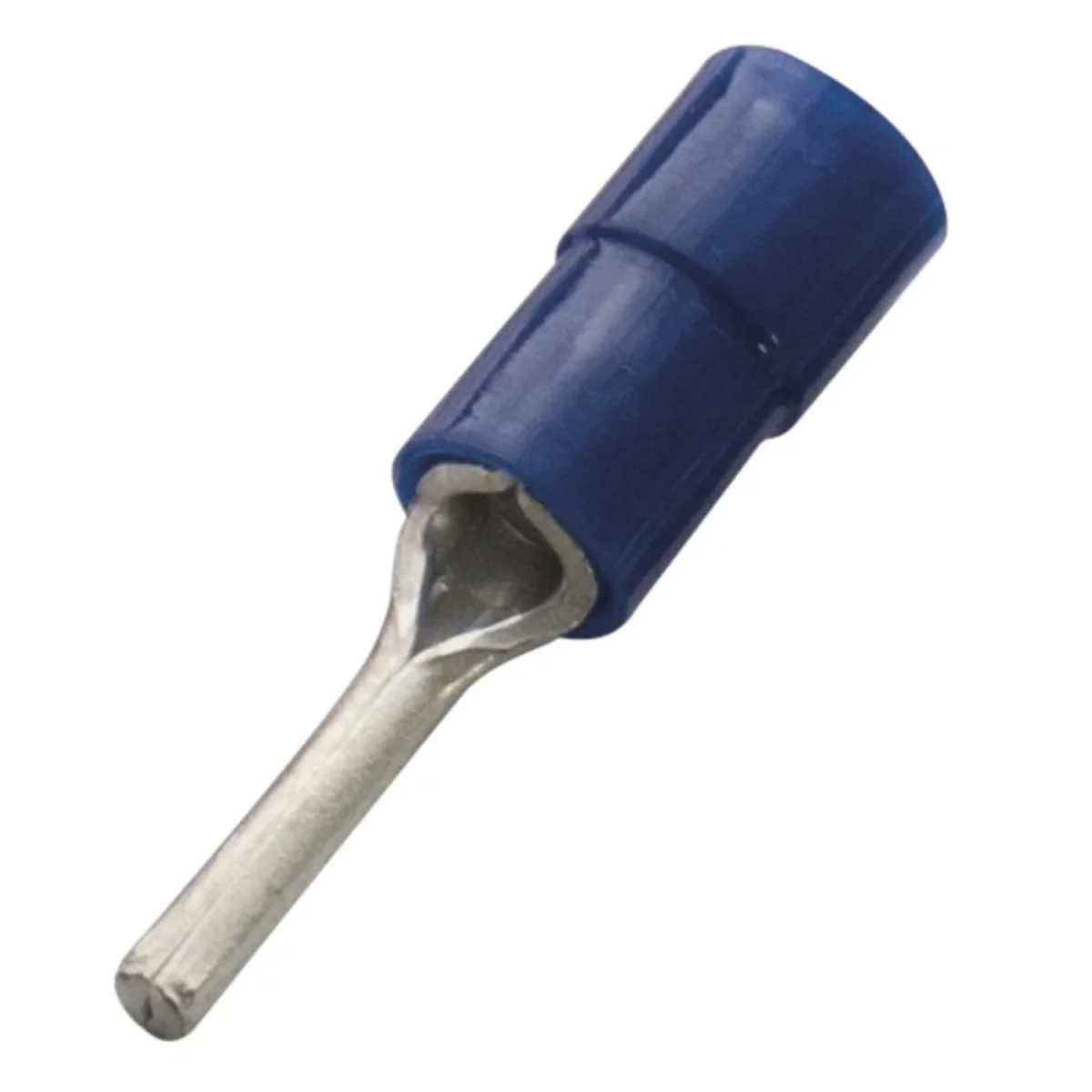

Insulated needle terminal 1.25 - 2.5mm 260772
local index:
TCI002HAUP
Catalog No:
260772
EAN code:
4011923132705
Price:
10,52 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Insulated Round Needle Terminals • of electrolytic copper, tinned • insulated in nylon, with an extended insulating sheath, suitable for complex conductors • Easy Entry
Technical data
-
Length [mm]23
-
Sleeve length [mm]11
-
Inner diameter [mm]2.45
-
cross section [mm²]2.5
-
Length to center of hole [mm]12
-
Flange width [mm]1.9
-
Outer diameter [mm]4.8
-
Wire cross-section [mm²]2.5
Other technical data
-
Flange shapePin shape
-
Nominal cross section1.5 ... 2.5 mm²
Manufacturer details
-
ManufacturerHAUPA GmbH & Co. KG
-
Address42853 Remscheid Königstr. 165-169 Polska
-
