Insulated ferrule cable terminal HI 25/16 DIN ERHL 50 pcs E08KH-02010108400
local index:
TCI128ERGO
Catalog No:
E08KH-02010108400
EAN code:
5900003800667
Price:
6,46 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

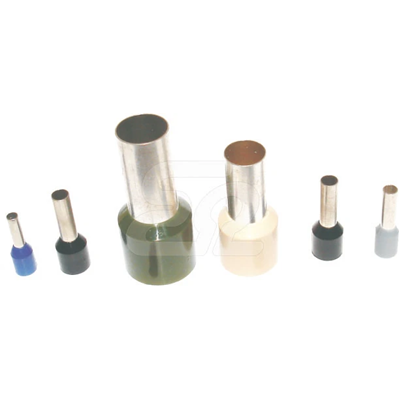

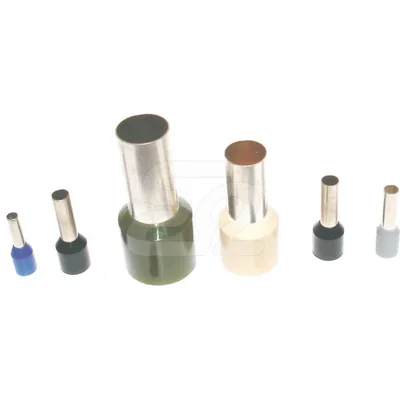

Insulated ferrule cable lug HI 25/16 DIN ERHL from the manufacturer ERGOM. The product catalog number is E08KH-02010108401.
- Thin-walled Cu terminal with insulating sleeve for flexible stranded wires.
- Insulating sleeve: increases resistance to vibrations of the connection, reduces the risk of short-circuit, facilitates assembly cable.
- The color of the insulation makes it easier to identify the cross-section.
Technical data
-
Halogen freeYes
-
Sleeve length [mm]16
-
ColorYellow
-
Gauge [AWG]4
-
Inner diameter [mm]7.3
-
cross section [mm²]25
-
CoverageTin plated
-
Length [mm]thirty
-
Thickness [mm]0.2 0.4
-
MaterialCopper
-
Typesleeve
-
Outer diameter [mm]11.2
-
Insulation materialPolypropylene
-
PKWIU27.33.13.0
Other technical data
-
Construction typeStandard
-
Sleeve length16 mm
-
Material insulationPolypropylene (PP)
-
Halogen freeYes
-
MaterialCopper
-
For cables resistant to short circuitNo
-
Reel/roll packagingNo
-
Nominal cross section25 mm²
-
InsulatedYes
-
Materiał izolacyjnyPolyamide (PA)
-
ColourYellow
-
Surface protectionTinned
-
With identification flagNo
-
AWG size4
Manufacturer details
-
ManufacturerERGOM Zakład Aparatury Elektrycznej Sp. z o.o.
-
Address94-102 Łódź Nowe Sady 10
-
Phone number
-
E-mail
-
Tax identification number7260129071
-
GLN5900009930221
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 1 pkg. |
| Weight (kg) | 0,065 |
| Width (m) | 0,010 |
| Length (m) | 0,010 |
| Depth (m) | 0,010 |
