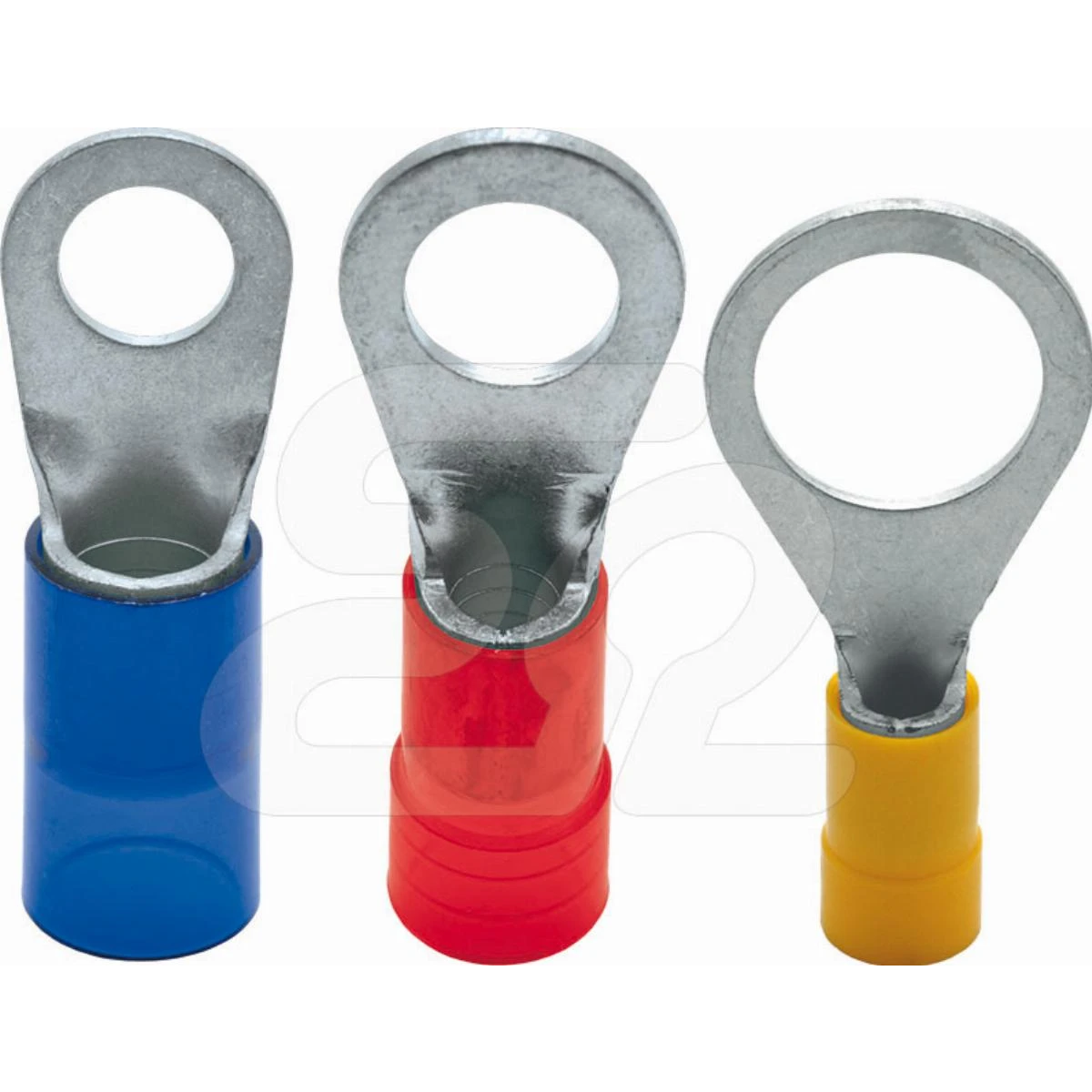

Insulated cable lug KOI 16/8 blue E09KO-02010103900

local index:
TCI428ERGO
Catalog No:
E09KO-02010103900
Manufacturer: ERGOM
Color: Blue
Material: Copper
Type: Oczkowa
Price:
0,46 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 1125 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

DIN copper ring terminal with polyamide insulating sleeve marked with screw size and wire cross-section on the fin.

The insulating sleeve increases the vibration resistance of the connection, reduces the risk of a short circuit and facilitates cable assembly.

The color of the sleeve makes it easy to identify the cross-section.

Technical data

  • Color
    Blue
  • Type
    Oczkowa
  • cross section [mm²]
    16
  • Screw hole
    M8
  • PKWIU
    27.33.13.0
  • Material
    Copper
  • Working temperature [°C]
    from -30 to +95
  • Insulation material
    Polyamide
  • Coverage
    Tin plated

Other technical data

  • Bolt dimension (metric)
    8
  • According to DIN
    No
  • Flange shape
    Ring shape
  • Nominal cross section
    16 ... 16 mm²

Bulk packaging

A kind of package Sztuka
Quantity 100 pcs.
Weight (kg) 0,010
Width (m) 0,010
Length (m) 0,010
Depth (m) 0,010
