HLD.2/GR Spring connector 2.5mm, 3-level, gray I-HL200GR00000000

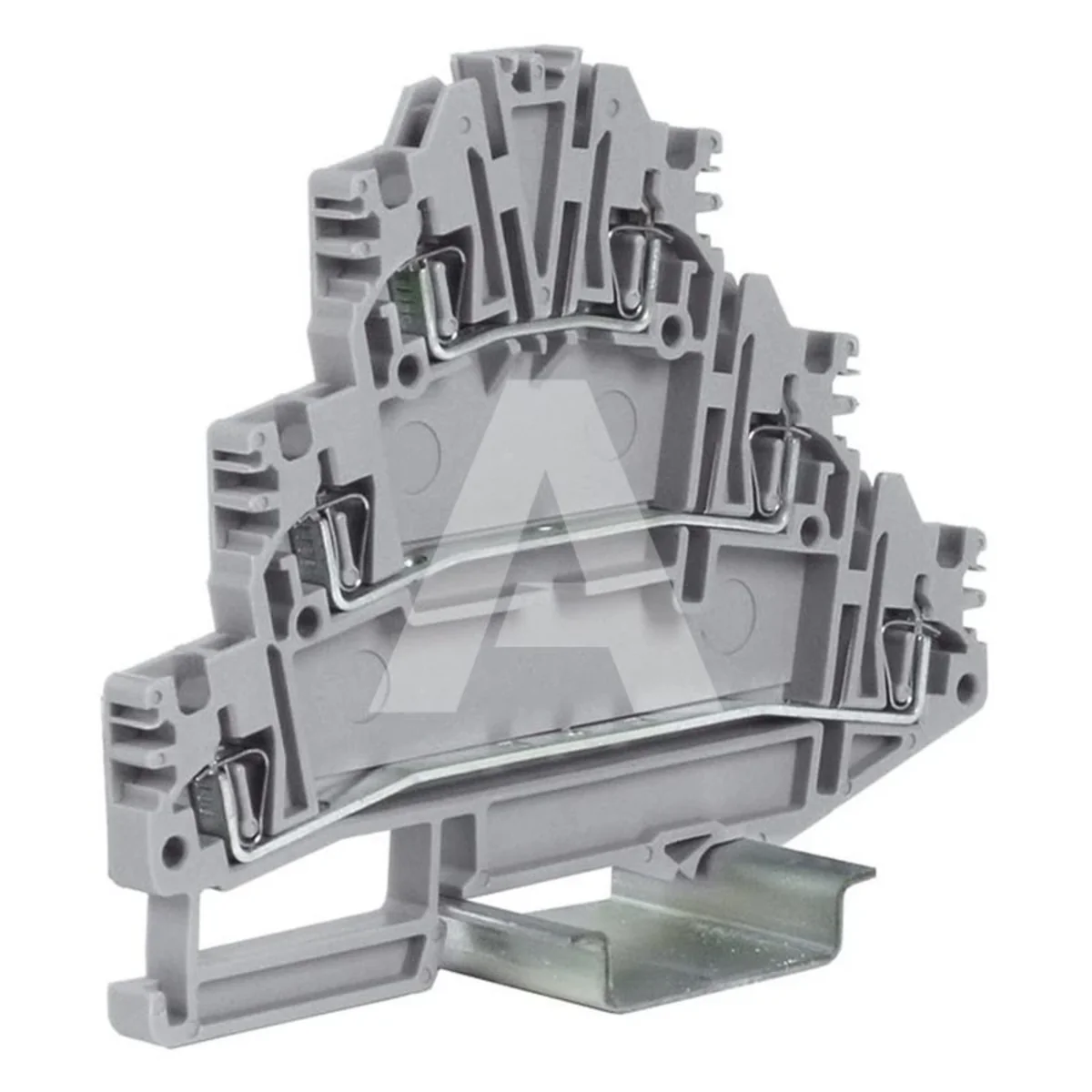

Name: HLD.2/GR Spring connector 2.5mm, 3-level, gray
Brand: ASTAT
SKU: TES019ASTA
Price: 11.37 PLN
Availability: BackOrder

Index local:

TES019ASTA

Numéro de catalogue:

I-HL200GR00000000

Code EAN:

8017963061414

Cliquer sur la photo pour l'agrandir

Producteur: ASTAT

Prix:

11,37 zł

gross / pcs.

(y compris la TVA 23%)

2 semaines

Sur commande

Quantité pcs.

(plusieurs:

1

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Données techniques Détails du fabricant Fichiers à télécharger

Données techniques

Connectable conductor cross section fine-strand without cable end sleeve

0.2 ... 2.5 mm²
Connectable conductor cross section solid-core

0.2 ... 2.5 mm²
Rated current In

24 A
Type of electrical connection 1

Spring clamp connection
Number of levels

3
Mounting method

DIN rail (top hat rail) 35 mm
Operating temperature

-40 ... 100 °C
Explosion-tested version 'Ex e'

Yes
Colour

Grey

Connectable conductor cross section fine-strand with cable end sleeve

0.2 ... 1.5 mm²
Connectable conductor cross section multi-wired

0.2 ... 2.5 mm²
Rated voltage

500 V
Type of electrical connection 2

Spring clamp connection
Number of clamp positions per level

2
Material insulation body

Thermoplastic
Inflammability class of insulation material according to with UL94

V0
Closing plate required

Yes
Internally connected stages

No
