Fully insulated sleeve 0.5-1.0/2.8x0.5 red 263451

local index:
TCI422HAUP
Catalog No:
263451
EAN code:
4011923182342
Manufacturer: HAUPA
Length [mm]: 19.5
Flange length [mm]: 6.5
Sleeve length [mm]: 11
Price:
19,72 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

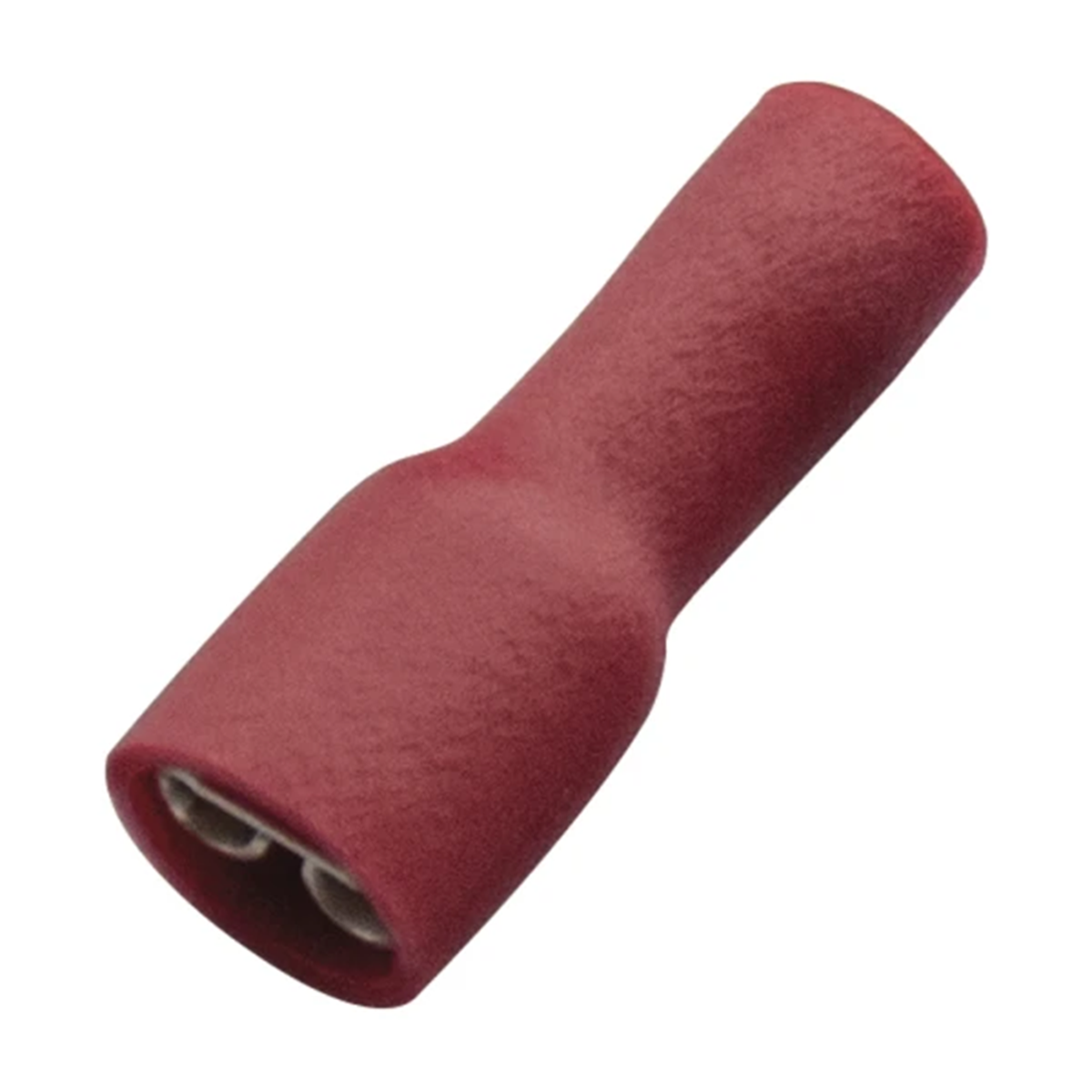

Fully insulated female connector:

  • tin-plated brass,
  • nylon insulation,
  • with vibration-resistant copper tip,
  • < li> Easy Entry.

Technical data

  • Length [mm]
    19.5
  • Sleeve length [mm]
    11
  • Material
    Brass
  • Inner diameter [mm]
    4
  • cross section [mm²]
    0.5-1.0
  • Wire cross-section [mm²]
    0.5-1.0
  • Flange length [mm]
    6.5
  • Color
    Red
  • Flange width [mm]
    3.2
  • Socket size [mm]
    2.8x0.5
  • Insulation material
    Nylon

Other technical data

  • Model
    Bushing
  • Nominal cross section
    0.5 ... 1.0 mm²
  • Colour insulation
    Red
  • Plug dimensions
    Flat 2.8x0.5 mm
  • Insulation
    Fully isolated
  • Material
    Brass
