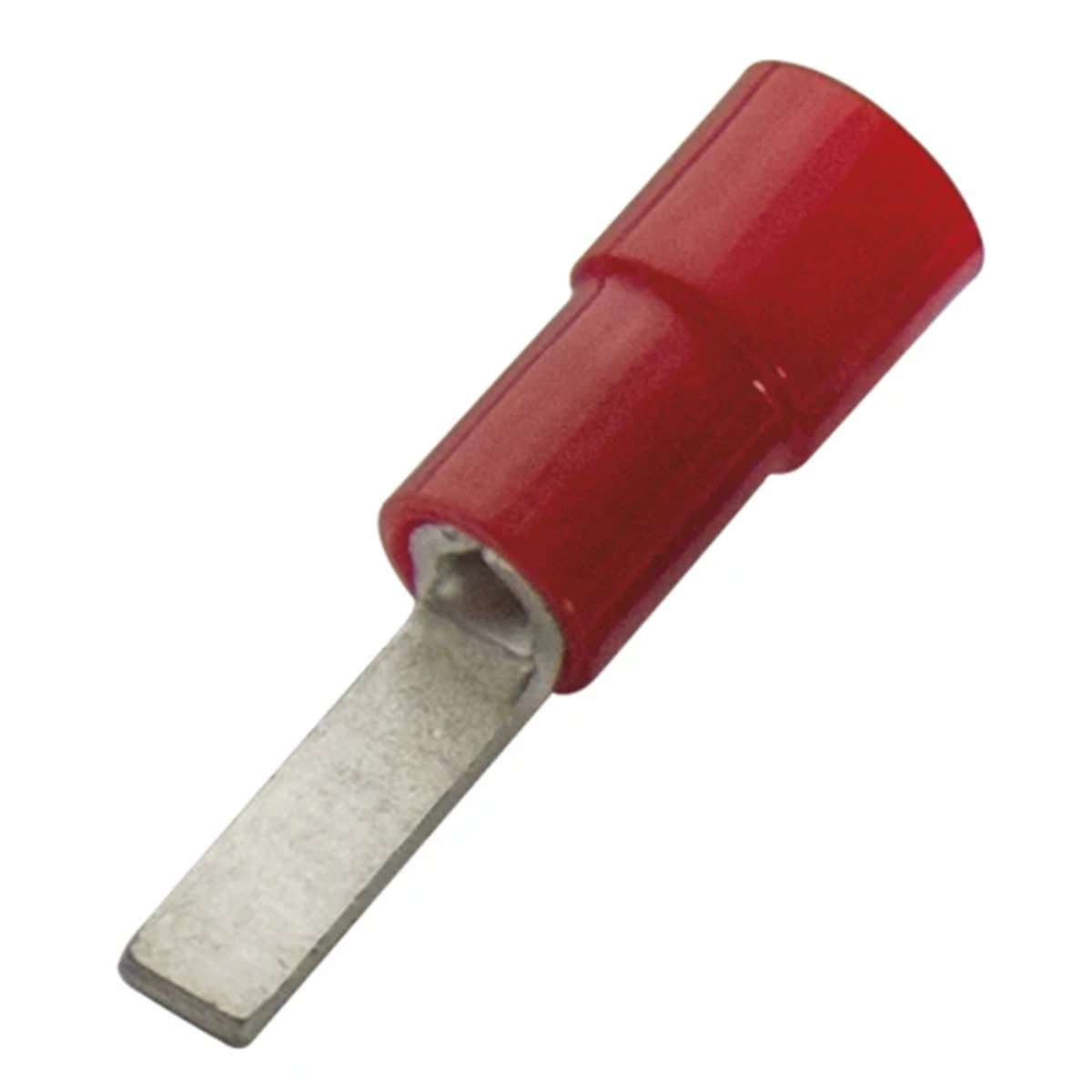

Flat insulated needle tip 0.5-1.0mm2 260731

local index:
TCI382HAUP
Catalog No:
260731
EAN code:
4011923181901
Manufacturer: HAUPA
Length [mm]: 24.9
Length to center of hole [mm]: 14.5
Sleeve length [mm]: 10.4
Price:
7,77 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flat needle lug insulated:

  • made of electrolytic copper, tin-plated, soldered,
  • insulated in nylon, with extended insulating sheath, suitable for complex conductors,
  • Easy Entry.

Technical data

  • Length [mm]
    24.9
  • Sleeve length [mm]
    10.4
  • Material
    Copper
  • Inner diameter [mm]
    1.7
  • cross section [mm²]
    0.5-1.0
  • Wire cross-section [mm²]
    0.5-1.0
  • Length to center of hole [mm]
    14.5
  • Color
    Red
  • Flange width [mm]
    3
  • Outer diameter [mm]
    4.2
  • Insulation material
    Nylon
  • Coverage
    Tin plated

Other technical data

  • Flange shape
    Pin shape
  • Nominal cross section
    0.5 ... 1.0 mm²
