Ferrule terminal Cu tinned HT - 1.5/18 1000pcs 270086
local index:
TCC895HAUP
Catalog No:
270086
EAN code:
4011923087173
Price:
23,71 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

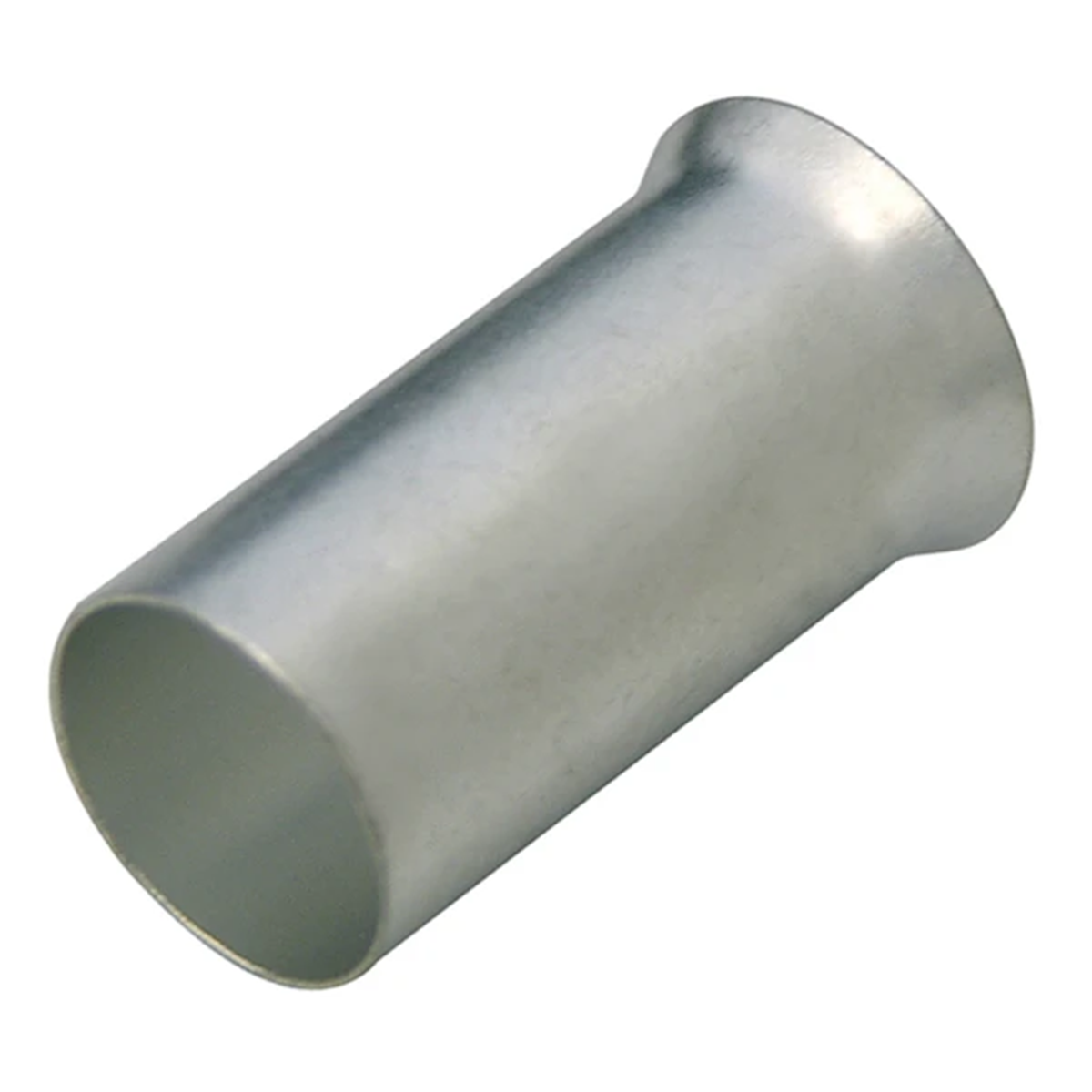

Sleeve terminal, thin-walled Cu terminals, tin-plated, made of electrolytic copper according to DIN 46228.
Technical data
-
Length [mm]18
-
Outer diameter [mm]1.7
-
Package height [mm]20
-
Package weight [kg]0.1
-
Construction typeStandard
-
Wire cross-section [mm²]1.5
-
Hole diameter [mm]2.8
-
With insulationNO
-
Package width [mm]40
-
Package length [mm]40
-
cross section [mm²]1.5
Other technical data
-
Construction typeStandard
-
Sleeve length18 mm
-
MaterialCopper
-
With identification flagNo
-
Nominal cross section1.5 mm²
-
InsulatedNo
-
For cables resistant to short circuitNo
-
Reel/roll packagingNo
Manufacturer details
-
ManufacturerHAUPA GmbH & Co. KG
-
Address42853 Remscheid Königstr. 165-169 Polska
-
