Ferrule terminal 0.34/5 tinned 500 pcs 270068/500

local index:
TCC877HAUP
Catalog No:
270068/500
EAN code:
4011923086954
Manufacturer: HAUPA
Length [mm]: 5
Thickness [mm]: 0.15
Pieces in the package: 500
Price:
5,68 €
gross / pkg.
(including VAT 23%)
0,01 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

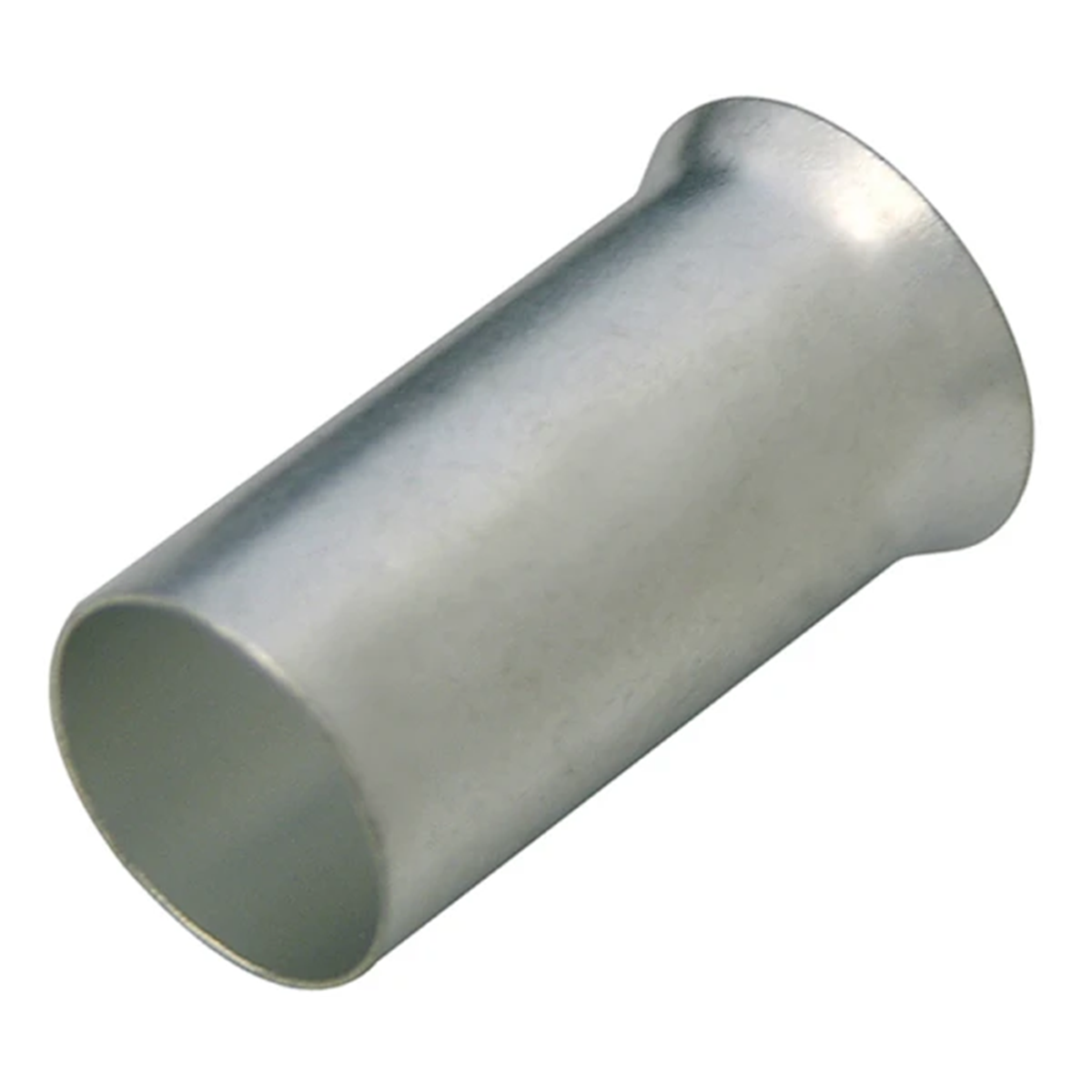

Sleeve terminal, tin-plated Cu thin-wall terminals made of electrolytic copper according to DIN 46228

Technical data

  • Length [mm]
    5
  • Pieces in the package
    500
  • Outer diameter [mm]
    0.85
  • Package width [mm]
    60
  • Package length [mm]
    80
  • cross section [mm²]
    0.34
  • Thickness [mm]
    0.15
  • Hole diameter [mm]
    1.8
  • Package height [mm]
    50
  • Package weight [kg]
    0.15
  • Construction type
    Standard
  • Wire cross-section [mm²]
    0.34

Other technical data

  • Construction type
    Standard
  • Sleeve length
    5 mm
  • Material
    Copper
  • With identification flag
    No
  • Nominal cross section
    0.34 mm²
  • Insulated
    No
  • For cables resistant to short circuit
    No
  • Reel/roll packaging
    No
