Connecting cables and wires
Cable terminals
Cu tips
Cu tubular terminal 630mm2 M20 thin-walled 3 pcs 294196
local index:
TCC0E5HAUP
Catalog No:
294196
EAN code:
4011923489243
Click on the photo to enlarge
Manufacturer:
HAUPA
Length [mm]:
133
Sleeve length [mm]:
50
Thread:
M20
See full description
Price:
185,45 €
gross / pkg.
(including VAT 23%)
61,82 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Product description

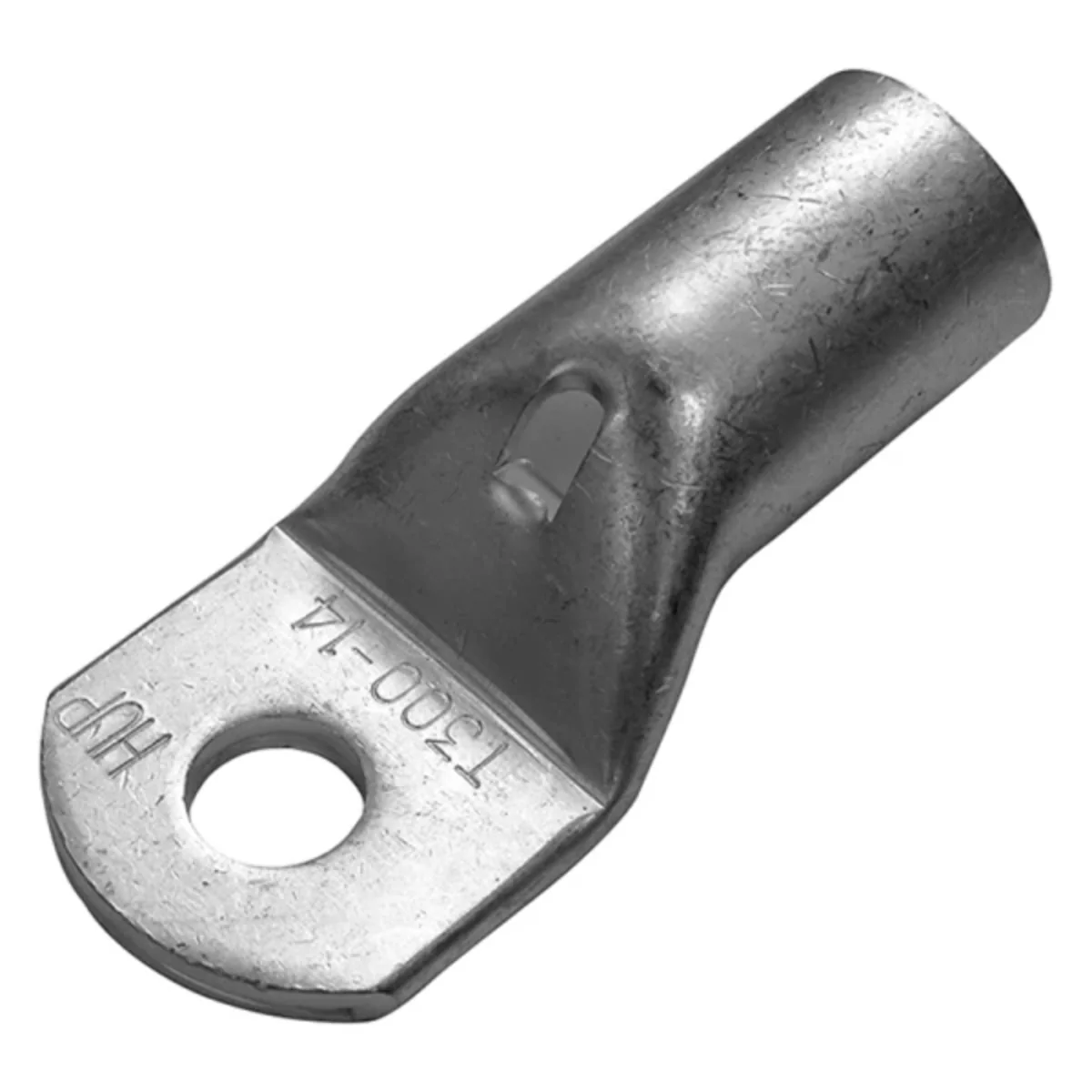

T-shaped thin-walled tubular terminal:
material: 99.9% electrolytic copper,
surface: tin-plated,
made of tube,
with a viewfinder.
Technical data
Length [mm]
133
Thread
M20
Hole diameter [mm]
21
Outer diameter [mm]
44.7
Wire cross-section [mm²]
630
Sleeve length [mm]
50
Pieces in the package
3
Inner diameter [mm]
34.5
cross section [mm²]
630
Other technical data
Bolt dimension (metric)
20
Slender flange model
No
With sight-hole
Yes
Nominal cross section
630 mm²
Flange shape
Ring shape
Insulated
No
Material
Copper
Manufacturer details
Manufacturer
HAUPA GmbH & Co. KG
Address
42853 Remscheid Königstr. 165-169 Polska
Phone number
++49 2191 8418-0
E-mail
info@haupa.com
WWW
https://www.haupa.com/de/
