Cu tip DIN 25 / 10 50 pcs 290035

local index:
TCC126HAUP
Catalog No:
290035
EAN code:
4011923104153
Manufacturer: HAUPA
Length to center of hole [mm]: 38
angle [°]: Simple
Pieces in the package: 50
Price:
55,50 €
gross / pkg.
(including VAT 23%)
1,11 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

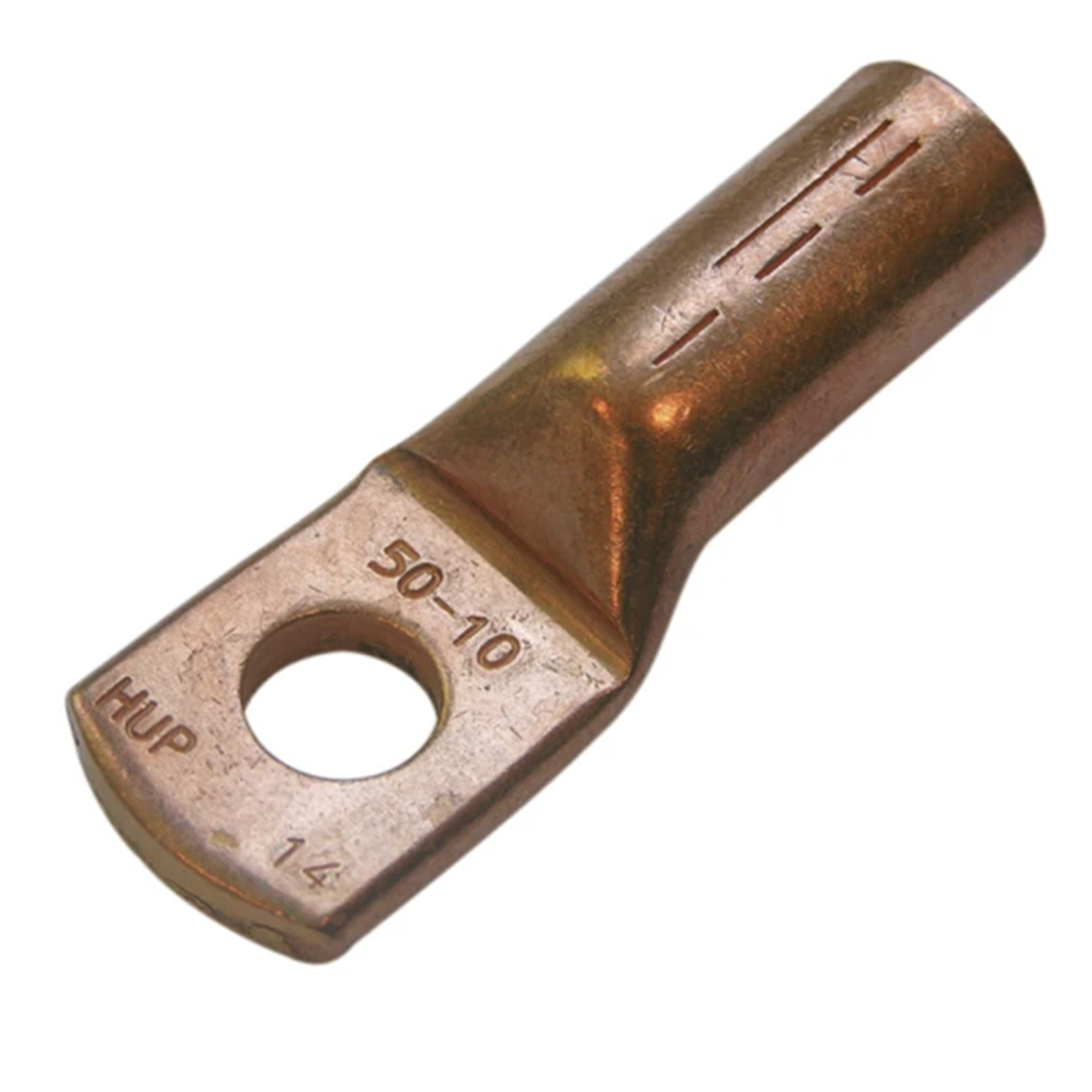

Cable terminal crimped for copper conductors according to DIN 46235: • material: 99.9% electrolytic copper• surface: bare etched

Technical data

  • Length to center of hole [mm]
    38
  • Pieces in the package
    50
  • Package height [mm]
    60
  • Package weight [kg]
    0.15
  • cross section [mm²]
    25
  • angle [°]
    Simple
  • Mesh diameter [mm]
    17
  • Package width [mm]
    80
  • Package length [mm]
    100
  • Wire cross-section [mm²]
    25

Other technical data

  • Bolt dimension (metric)
    10
  • Code digit
    10
  • Number of mounting holes
    1
  • Nominal cross section
    25 mm²
