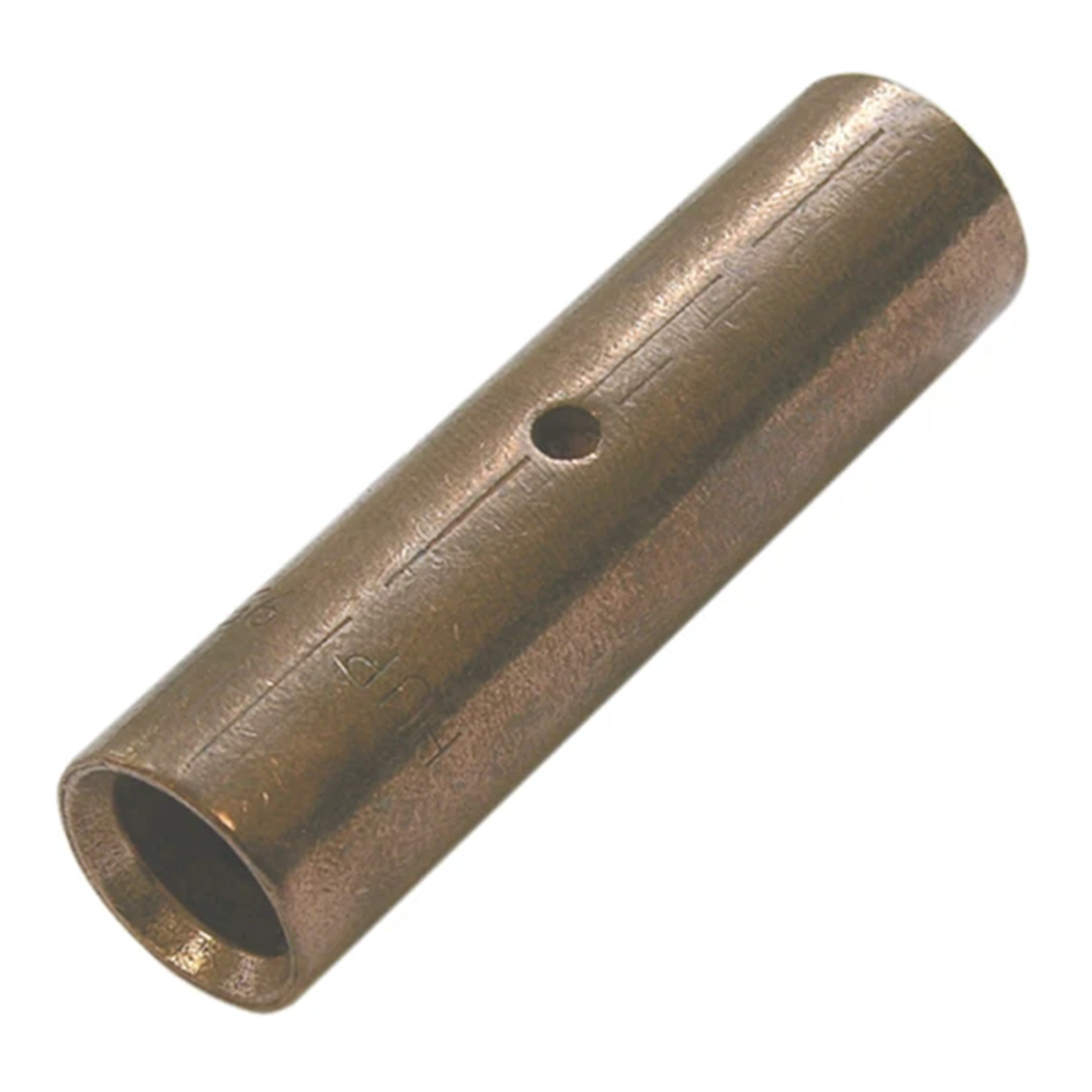

Cu DIN connector 300 mm² 5 pcs 291544

local index:
TCC589HAUP
Catalog No:
291544
EAN code:
4011923101053
Manufacturer: HAUPA
Model: DIN-compliant version
Pieces in the package: 5
Surface protection: Clear/No Coating
Price:
85,34 €
gross / pkg.
(including VAT 23%)
17,07 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Press connector for copper wires

Technical data

  • Model
    DIN-compliant version
  • Surface protection
    Clear/No Coating
  • Package height [mm]
    35
  • Package weight [kg]
    29.5
  • Sleeve type
    Long
  • Voltage range
    Up to 10 kV
  • For unloaded connections
    NO
  • Insulation material
    Lack
  • Pieces in the package
    5
  • Connection type
    Crimp connector
  • Package width [mm]
    35
  • Package length [mm]
    120
  • Number of branches
    2
  • cross section [mm²]
    300
  • Oil tight / central baffle
    NO
  • Wire cross-section [mm²]
    300

Other technical data

  • Nominal cross section
    300 ... 300 mm²
  • Sleeve form
    Long
  • Suitable for stranded conductors
    Yes
  • Suitable for high temperatures (to 650 °C)
    No
  • Suitable for round conductors
    Yes
  • Material
    Copper
  • Voltage level
    Up to 10 kV
  • Number of branches
    2
  • Oil stop/centre bar
    No
  • Model
    DIN-version
  • Suitable for solid conductors
    No
  • Suitable for fine strand conductors
    No
  • Suitable for insulated varnish
    No
  • Suitable for flat conductors
    No
  • Insulation
    None
  • Type of connection
    Percussion connector
  • For pull protected connections
    No
