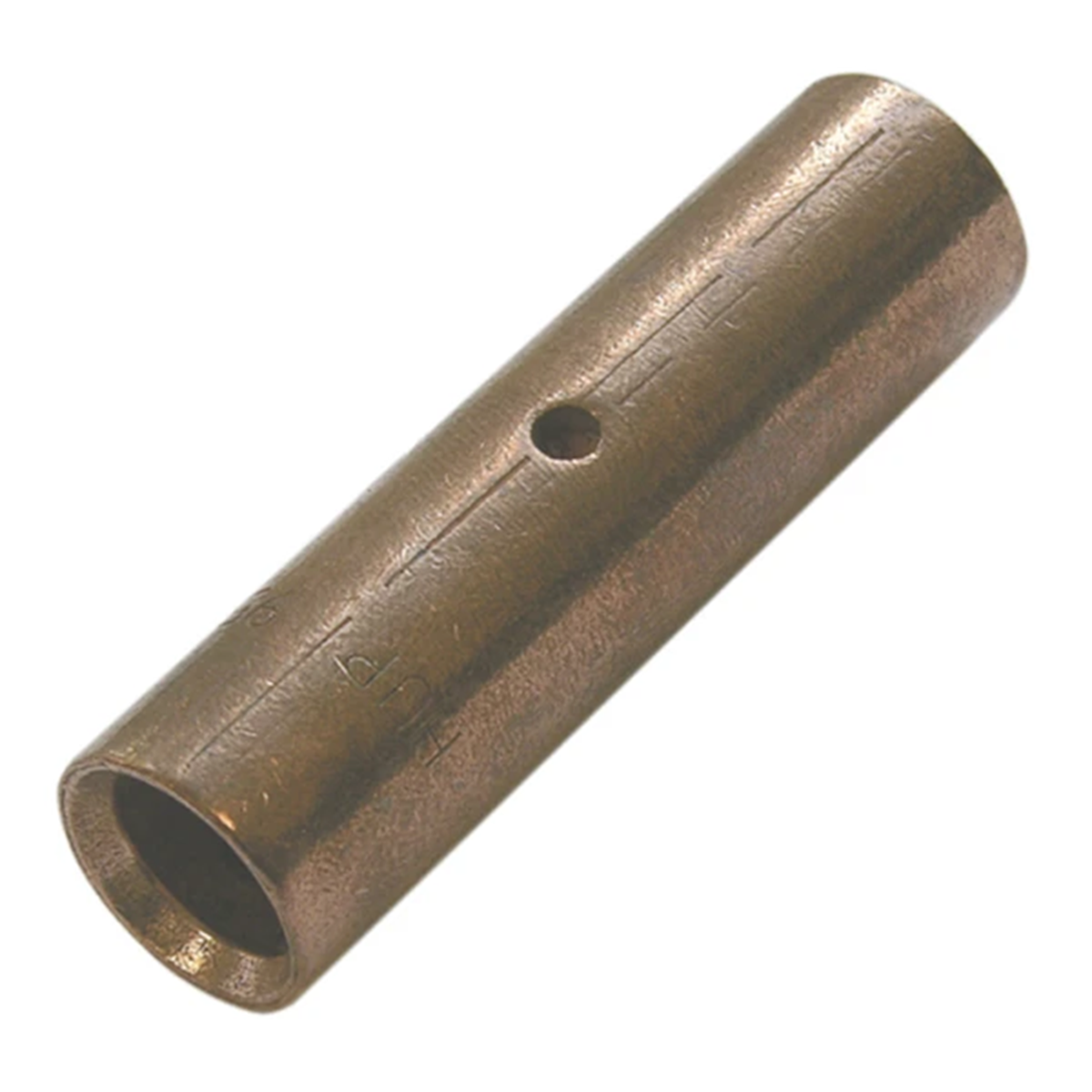

Cu DIN connector 185 mm² 5 pcs 291540
local index:
TCC585HAUP
Catalog No:
291540
EAN code:
4011923101015
Price:
50,05 €
gross / pkg.
(including VAT 23%)
10,01 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Press connector for copper wires
Technical data
-
Length [mm]85
-
Pieces in the package5
-
Surface protectionClear/No Coating
-
Package height [mm]thirty
-
Package weight [kg]16.2
-
Number of branches2
-
cross section [mm²]185
-
ModelDIN-compliant version
-
Outer diameter [mm]25.5
-
Connection typeCrimp connector
-
Package width [mm]thirty
-
Package length [mm]90
-
Voltage rangeUp to 10 kV
-
Wire cross-section [mm²]185
Other technical data
-
Nominal cross section185 ... 185 mm²
-
Sleeve formLong
-
Suitable for stranded conductorsYes
-
Suitable for high temperatures (to 650 °C)No
-
Suitable for round conductorsYes
-
MaterialCopper
-
Voltage levelUp to 10 kV
-
Number of branches2
-
Oil stop/centre barNo
-
ModelDIN-version
-
Suitable for solid conductorsNo
-
Suitable for fine strand conductorsNo
-
Suitable for insulated varnishNo
-
Suitable for flat conductorsNo
-
InsulationNone
-
Type of connectionPercussion connector
-
For pull protected connectionsNo
Manufacturer details
-
ManufacturerHAUPA GmbH & Co. KG
-
Address42853 Remscheid Königstr. 165-169 Polska
-
