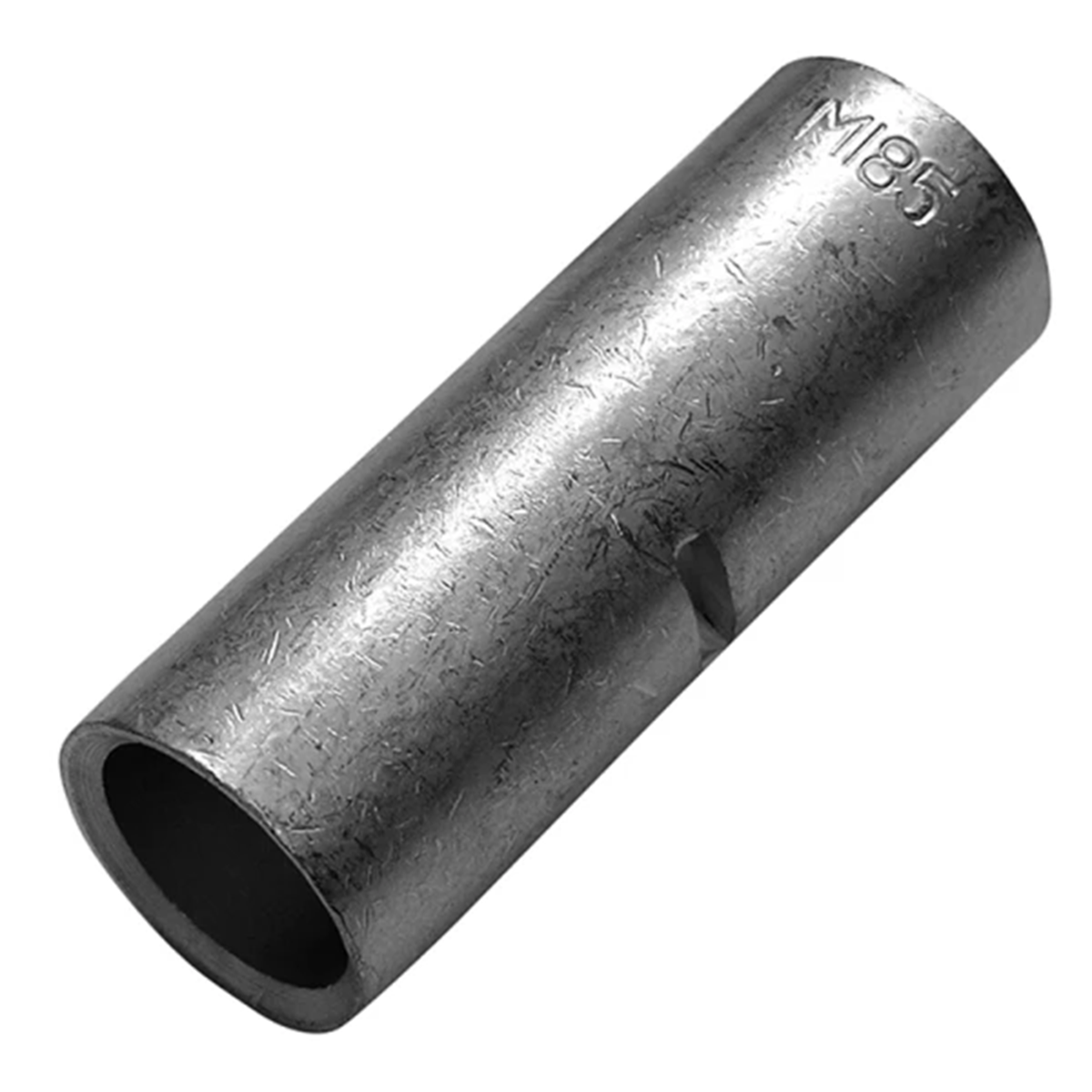

Cu 150 thin-walled connector 20 pcs 294226

local index:
TCC869HAUP
Catalog No:
294226
EAN code:
4011923489373
Manufacturer: HAUPA
Model: Standard execution
Pieces in the package: 20
Surface protection: tin plating
Price:
121,56 €
gross / pkg.
(including VAT 23%)
6,08 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Press connector for copper wires

Technical data

  • Model
    Standard execution
  • Surface protection
    tin plating
  • Package height [mm]
    50
  • Package weight [kg]
    0.2
  • Voltage range
    Up to 10 kV
  • cross section [mm²]
    150
  • Oil tight / central baffle
    NO
  • Wire cross-section [mm²]
    150
  • Pieces in the package
    20
  • Connection type
    Crimp connector
  • Package width [mm]
    thirty
  • Package length [mm]
    100
  • For stranded wires
    Yes
  • For unloaded connections
    NO
  • Insulation material
    Lack

Other technical data

  • Nominal cross section
    150 ... 150 mm²
  • Sleeve form
    Short
  • Suitable for stranded conductors
    Yes
  • Suitable for high temperatures (to 650 °C)
    No
  • Suitable for round conductors
    Yes
  • Material
    Copper
  • Voltage level
    Up to 10 kV
  • For pull protected connections
    No
  • Model
    Standard version
  • Suitable for solid conductors
    No
  • Suitable for fine strand conductors
    Yes
  • Suitable for insulated varnish
    No
  • Suitable for flat conductors
    No
  • Insulation
    None
  • Type of connection
    Percussion connector
  • Oil stop/centre bar
    No
