Copper tubular ring terminal 95mm² for M10 screw 10 pcs. SE-09510W

local index:
TCC162BORP
Catalog No:
SE-09510W
EAN code:
8680734700661
Manufacturer: TRYTYT
Length [mm]: 60
Material: Electrolytic copper
Pieces in the package: 10
Price:
42,78 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Print

Product description

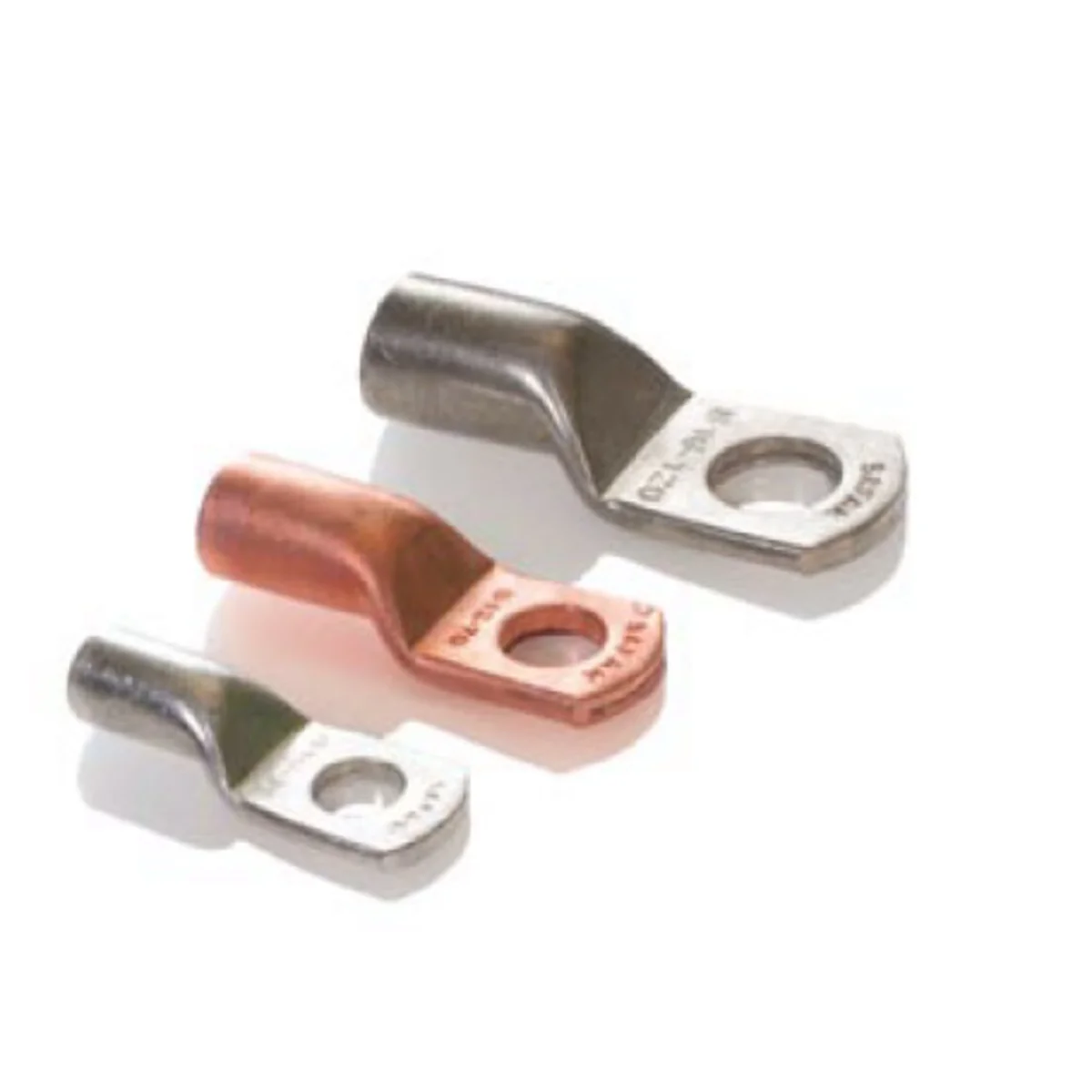

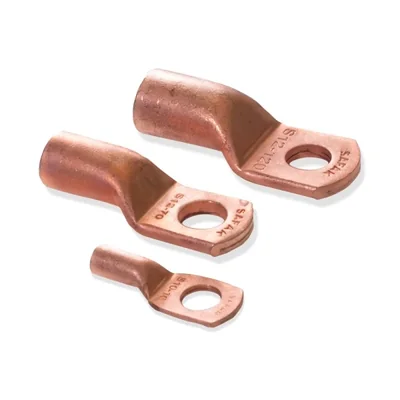

Series copper tubular ring terminals (tin-plated) and SE.W (non-tin-plated) for crimping. They enable the termination of copper cable cores, they are used where it is necessary to connect the cable to, for example, a switchgear, busbar or other device using a screw terminal. The use of SE ring terminals increases the safety and durability of this type of connection. In contrast to soldered connections, the use of ring terminals reduces the risk of overheating of wires and insulation. In case of pressing sector cores, they should be reformed into “round”.

All copper pipe ring terminals distributed by TRYTYT are subjected to an additional process of hardening and firing at 700°C. This process removes any impurities from the tip material. Hardened terminals, as opposed to non-hardened terminals, are less prone to cracks and micro-cracks during crimping, and thus have better working parameters.

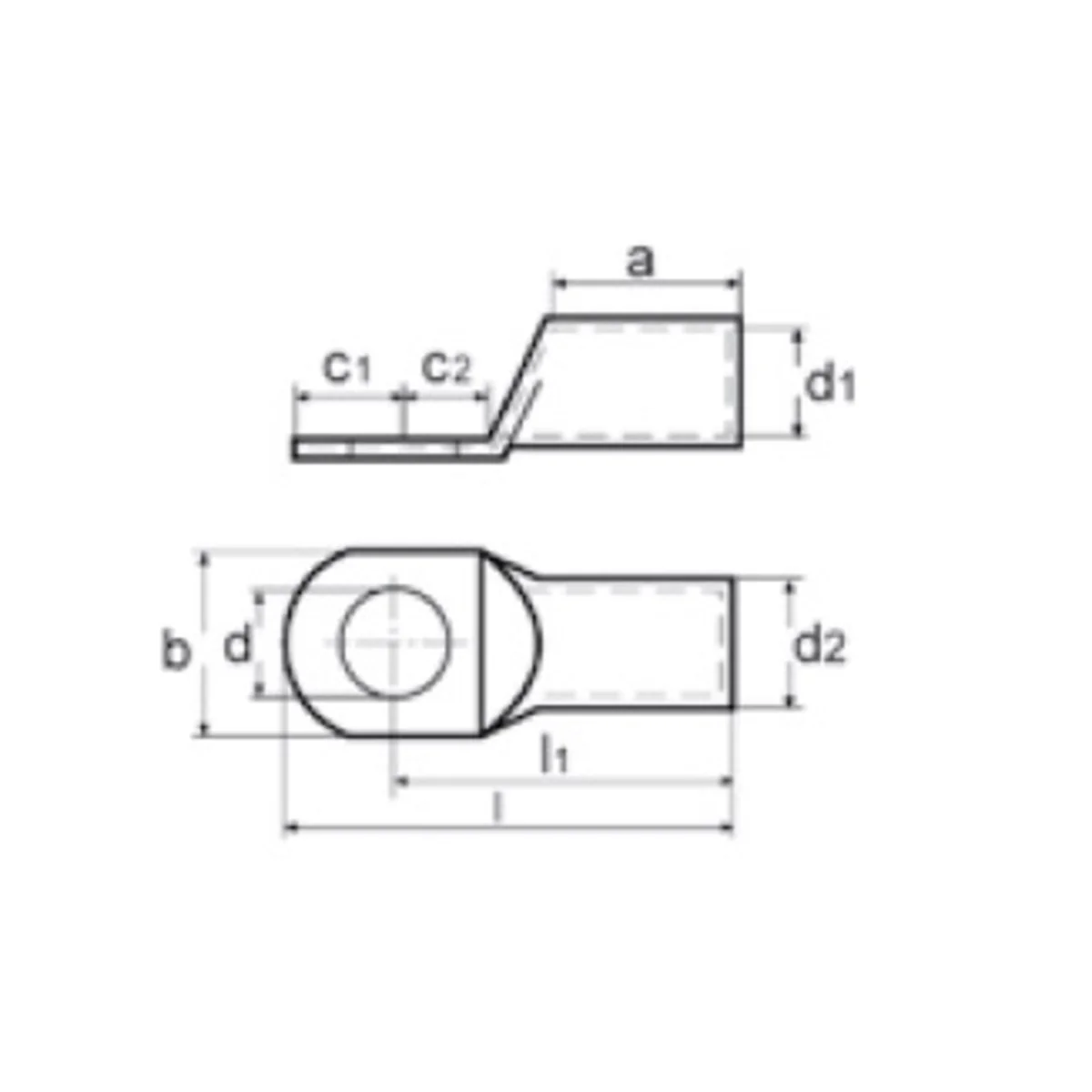

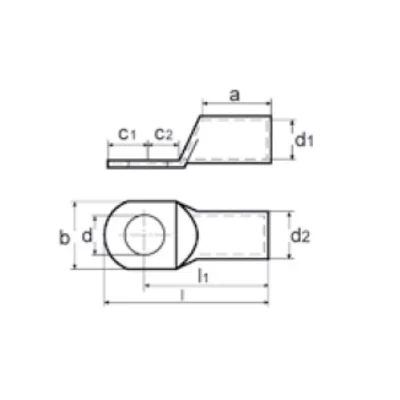

Technical data

  • Length [mm]
    60
  • Pieces in the package
    10
  • Outer diameter [mm]
    18
  • cross section [mm²]
    95
  • Material
    Electrolytic copper
  • Inner diameter [mm]
    13.5
  • Screw
    M10
  • PKWIU
    27.33.13.0
