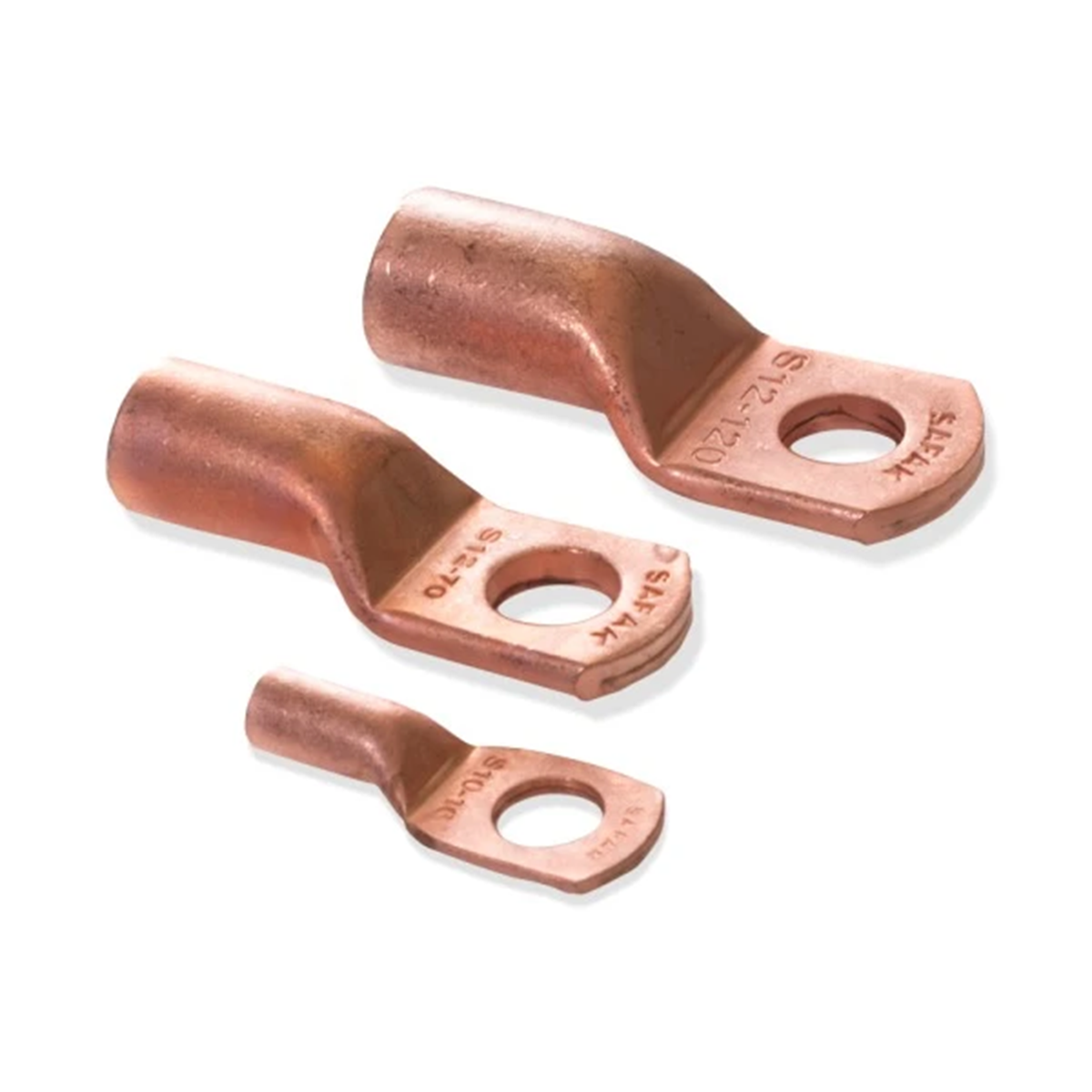

Copper tubular ring terminal 70mm² for M8 screw 10 pcs. SE-07008W

local index:
TCC152BORP
Catalog No:
SE-07008W
EAN code:
8680734700548
Price:
39,36 €
gross / pkg.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

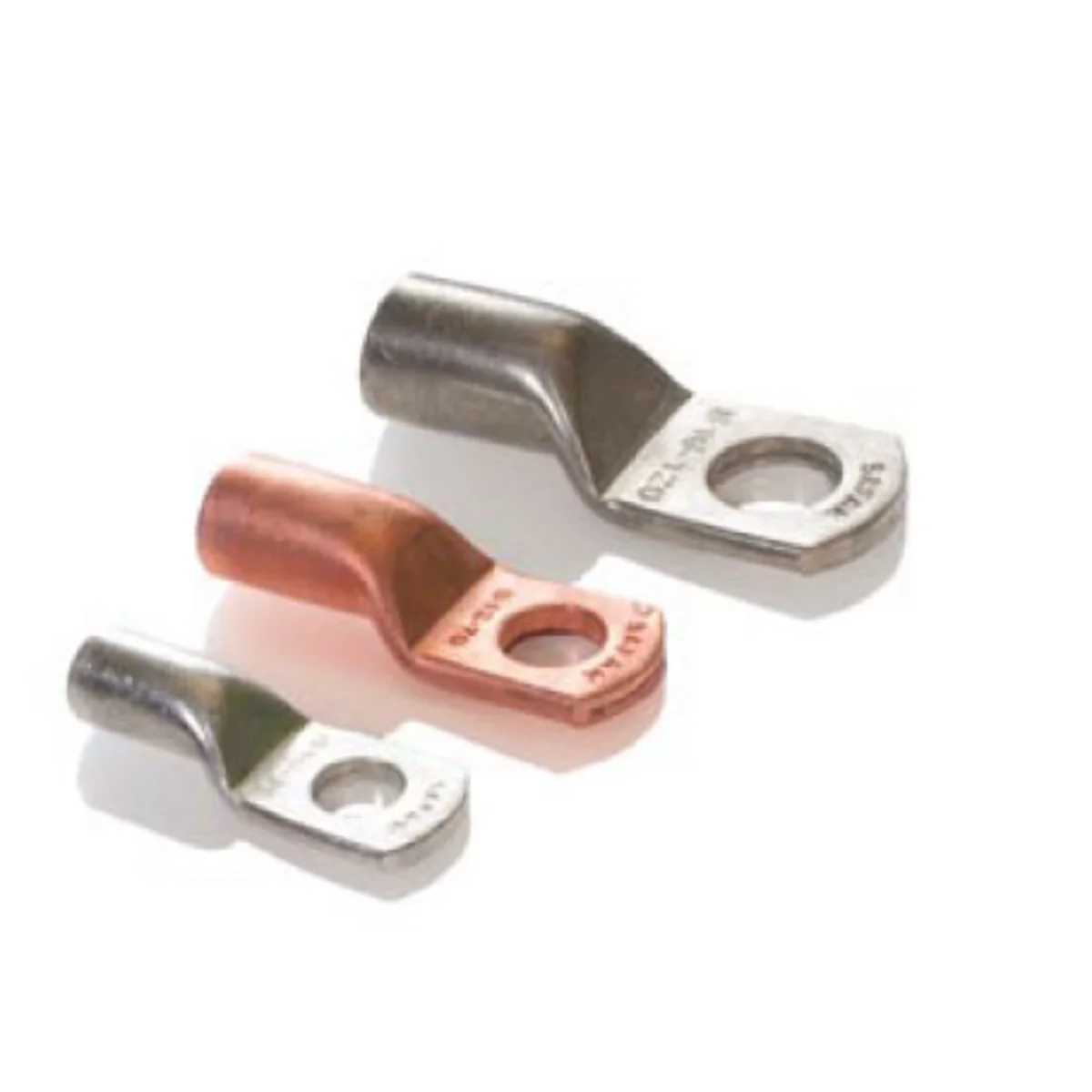

Series copper tubular ring terminals (tin-plated) and SE.W (non-tin-plated) for crimping. They enable the termination of copper cable cores, they are used where it is necessary to connect the cable to, for example, a switchgear, busbar or other device using a screw terminal. The use of SE ring terminals increases the safety and durability of this type of connection. In contrast to soldered connections, the use of ring terminals reduces the risk of overheating of wires and insulation. In case of pressing sector cores, they should be reformed into “round”.

All copper pipe ring terminals distributed by TRYTYT are subjected to an additional process of hardening and firing at 700°C. This process removes any impurities from the tip material. Hardened terminals, as opposed to non-hardened terminals, are less likely to develop cracks and micro-cracks during crimping, and thus have better working parameters.

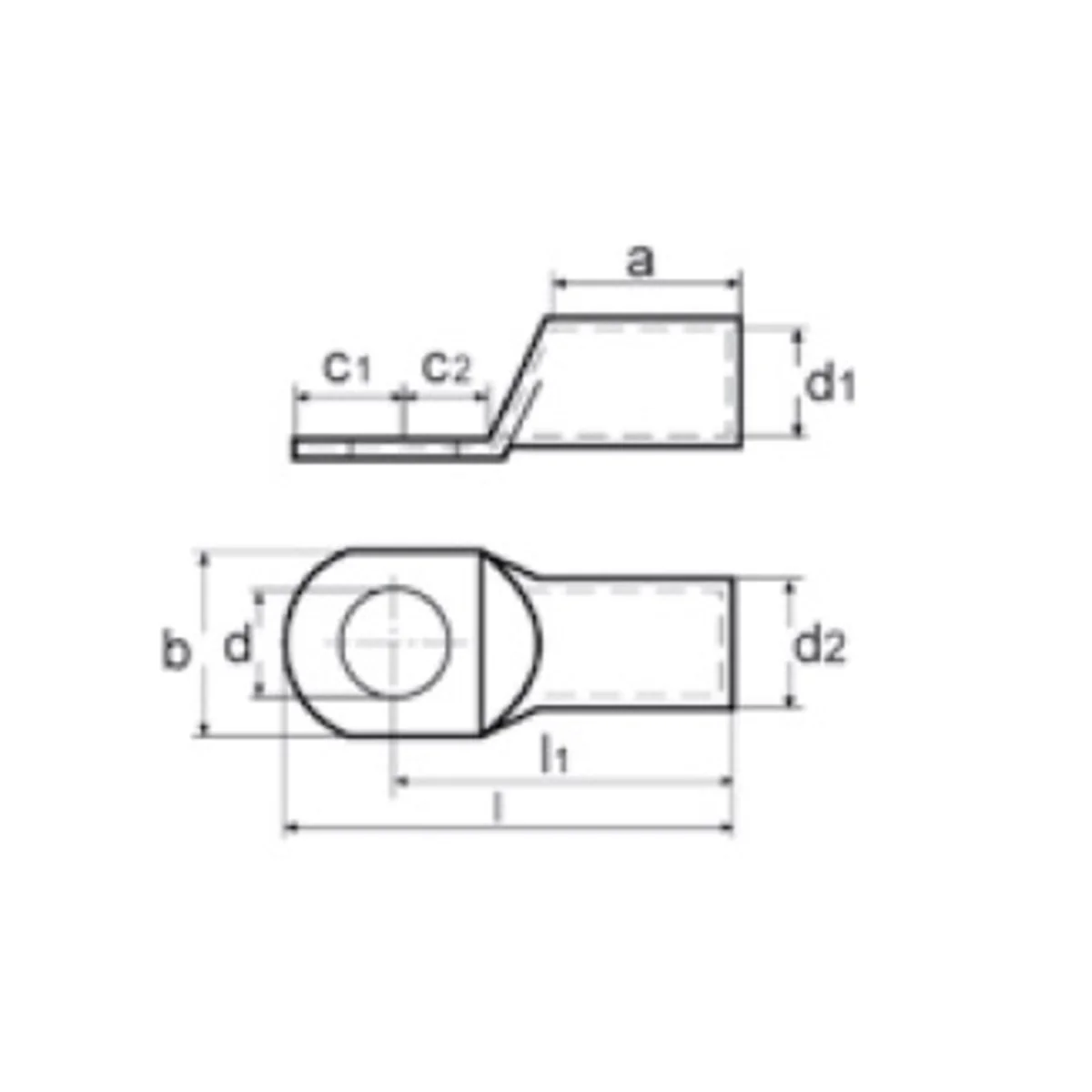

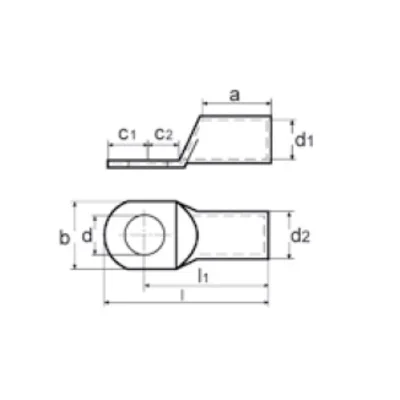

Technical data

  • Length [mm]
    53
  • Pieces in the package
    10
  • Outer diameter [mm]
    16.5
  • cross section [mm²]
    70
  • Material
    Electrolytic copper
  • Inner diameter [mm]
    12
  • Screw
    M8
