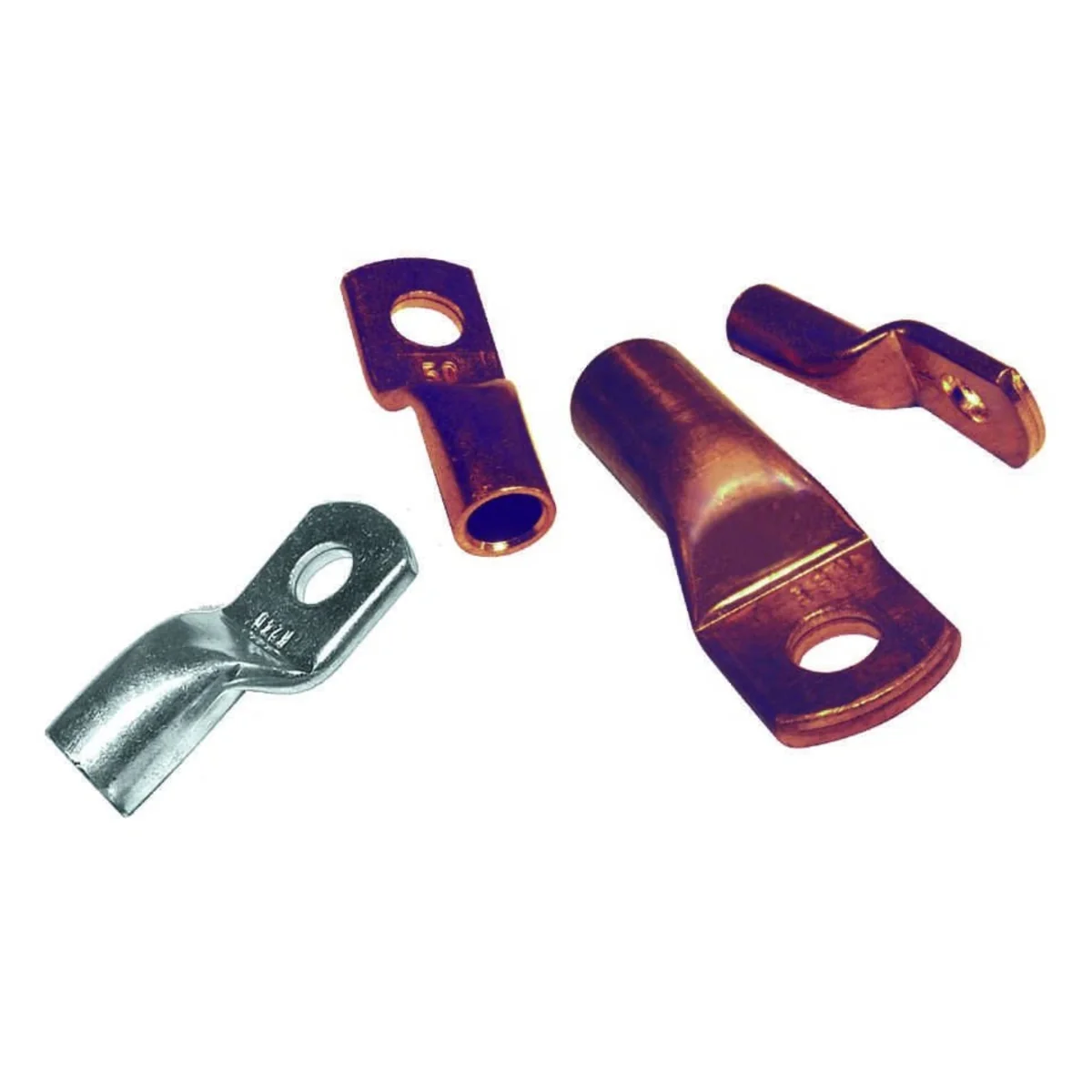

Copper cable terminals, galvanically tinned Ks 95/10 20 pcs. WOKAZ0950001001

Assembly

In order to permanently fix the terminal, it should be pressed using a suitable press (in the case of sector cores, the core must first be reshaped into a round shape).

Full compliance of dimensions with the DIN 46 235 standard for types DK, DKS, in the case of fittings DKX, DKXS, DKU, DKUs, DKP, DKPs, compliance with the DIN standard applies to the pipe part.
Material: Cu-ETP copper pipes and rods according to PN-EN 13600, PN-EN 13601, copper sheets according to PN-EN 1652. Insulation in sleeve terminals is made of polyamide 6.6 with operating temperature from -40°C to +105°C

K – terminals without galvanic coating
Fr – galvanized
