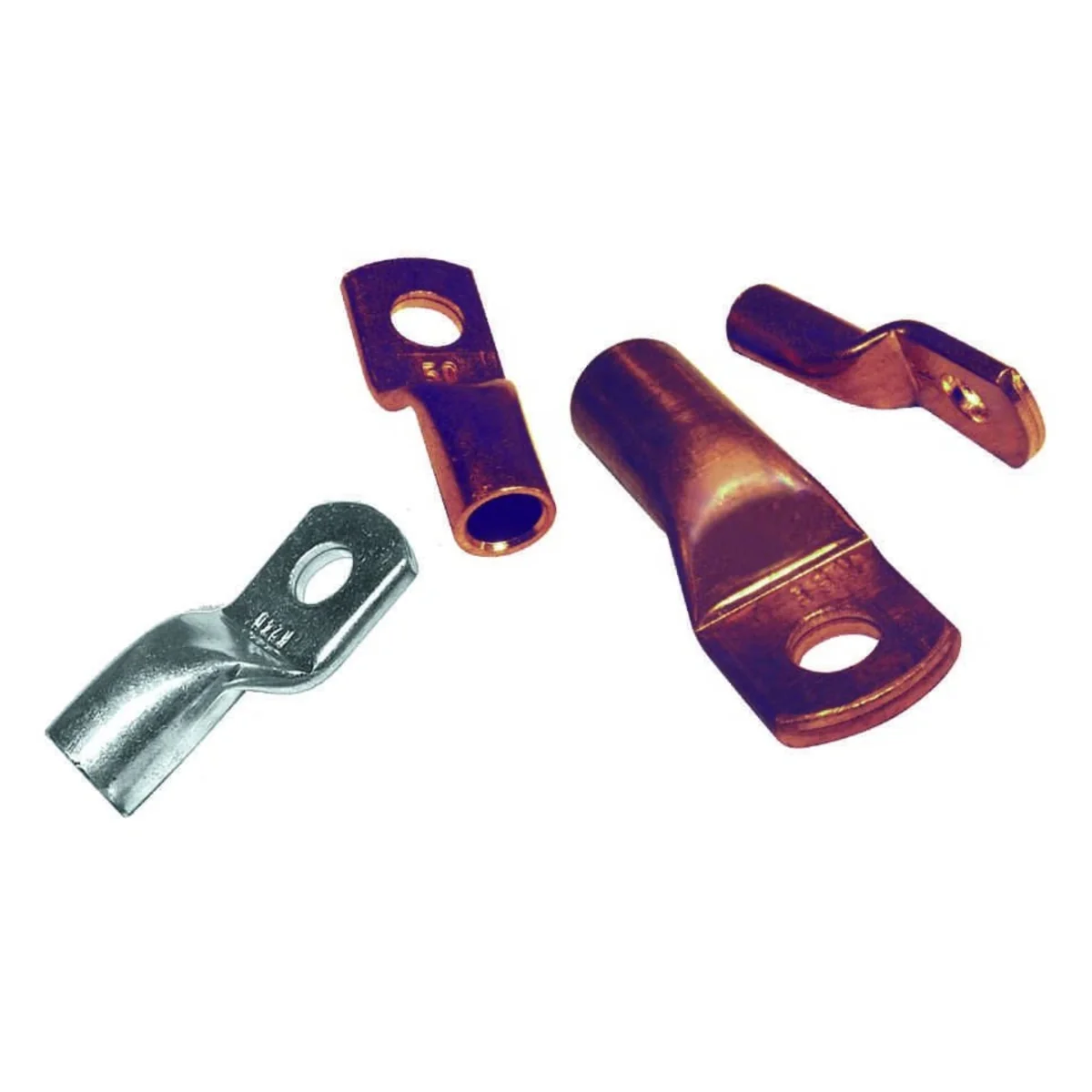

Copper cable lug CU K 25/10 25/10mm WOKAC0250001001

Indeks lokalny:
TCC012RADP
Nr katalogowy:
WOKAC0250001001
Kod EAN:
5907511905167
Producent: RADPOL
Length [mm]: 48
Material: Copper
Core cross-section [mm²]: 25
Cena:
1,27 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
2 tygodnie
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

Copper cable lugCU K 25/10 25/10mm WOKAC0250001001 RADPOL is used to terminate wiresó in cables with copper conductors. Ensuring bsafety and durability of the connectionamong others by reducing the overheating of the cores and the insulation of the wires, which occurs, for example, in the case of soldering the ends.

Dane techniczne

  • Length [mm]
    48
  • Core cross-section [mm²]
    25
  • Outer diameter [mm]
    10
  • PKWIU
    27.33.13.0
  • Material
    Copper
  • Inner diameter [mm]
    7
  • Working temperature [°C]
    from -40 to +105

Pozostałe dane techniczne

  • Bolt dimension (metric)
    10
  • Slender flange model
    Yes
  • With sight-hole
    No
  • Surface protection
    Bare
  • Flange shape
    Ring shape
  • Insulated
    No
  • Material
    Copper
  • Nominal cross section
    25 mm²
