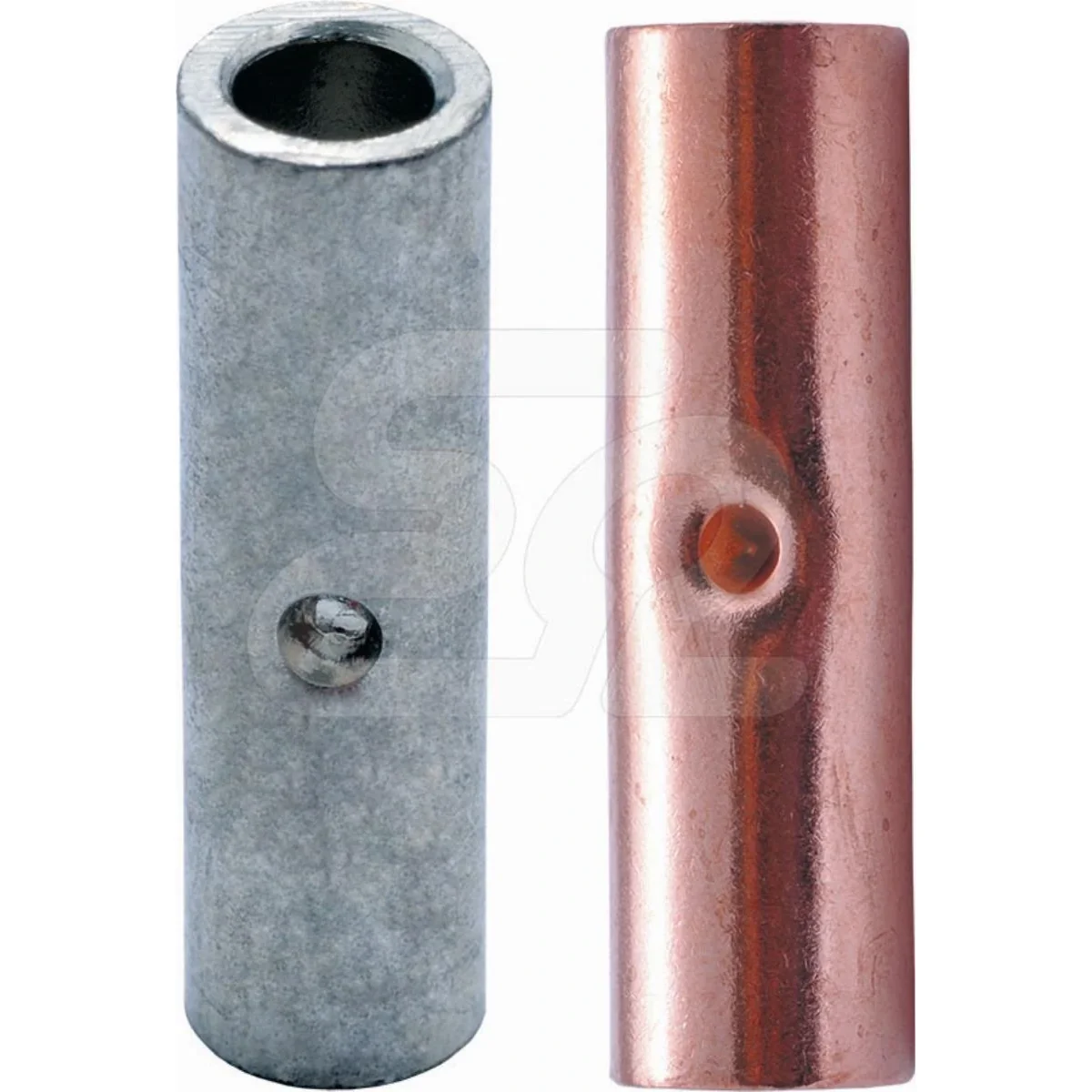

Copper cable connector KL 70 "butt joint" E11KM-01060200602

local index:
TCC275ERGO
Catalog No:
E11KM-01060200602
Manufacturer: ERGOM
Material: Copper
Type: Connector
cross section [mm²]: 70
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
0,92 €
gross / pcs.
(including VAT 23%)
Last lowest price: 2,98 € gross
Base price: 3,28 € gross -72%
Delivery in 3h
Accessible 26 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print

Product description

Copper KL connector in the standard version.

  • galvanized with tin for connecting wires on the so-called “contact”
  • the embossment in the middle guarantees insertion of the cable core to the required length
  • not mechanically loaded

Technical data

  • Material
    Copper
  • cross section [mm²]
    70
  • PKWIU
    27.33.13.0
  • Type
    Connector
  • Coverage
    Tin plated

Other technical data

  • Nominal cross section
    0 ... 70 mm²
  • Sleeve form
    Long
  • Suitable for stranded conductors
    Yes
  • Suitable for high temperatures (to 650 °C)
    No
  • Suitable for round conductors
    Yes
  • Material
    Copper
  • Insulation
    None
  • For pull protected connections
    Yes
  • Model
    Standard version
  • Suitable for solid conductors
    No
  • Suitable for fine strand conductors
    Yes
  • Suitable for insulated varnish
    No
  • Suitable for flat conductors
    No
  • Surface protection
    Tinned
  • Type of connection
    Percussion connector
  • Oil stop/centre bar
    No

Manufacturer details

Bulk packaging

A kind of package Sztuka
Quantity 20 pcs.
Weight (kg) 0,050
Width (m) 9,700
Length (m) 9,700
Depth (m) 4,900
