Copper butt joint 25mm² 10pcs SE EM-025W

Indice locale:
TCT038BORP
Numero di catalogo:
SE EM-025W
Codice EAN:
8680734726609
Produttore: TRYTYT
Material: Electrolytic copper
Pieces in the package: 10
Inner diameter [mm]: 7
Prezzo:
13,60 €
gross / conf.
(inclusa IVA 23%)
1,36 € gross/pezzi
Consegna in 3 ore
fino a 4 settimane (giorni lavorativi)
Raccolta in 1h
Quantità conf.
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

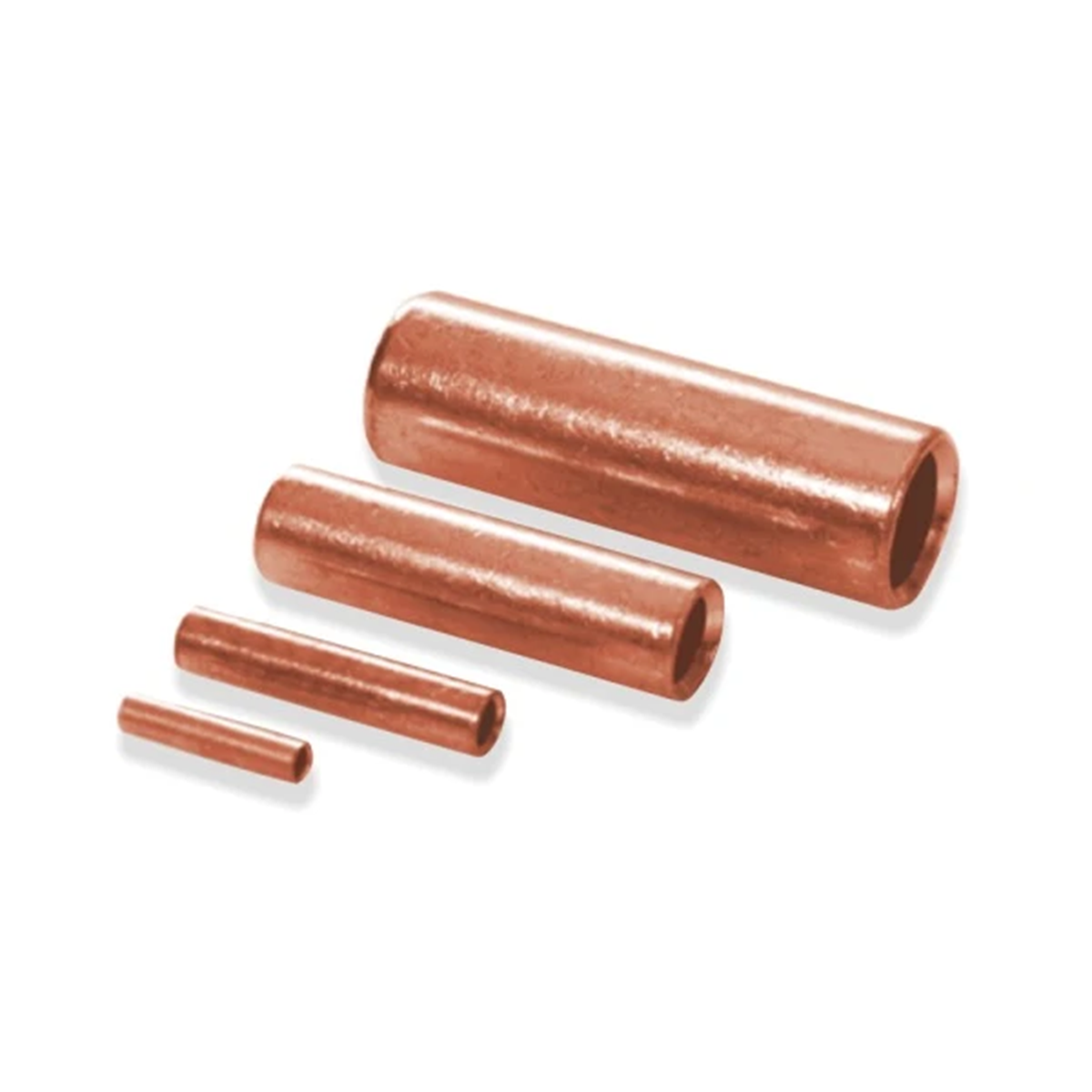

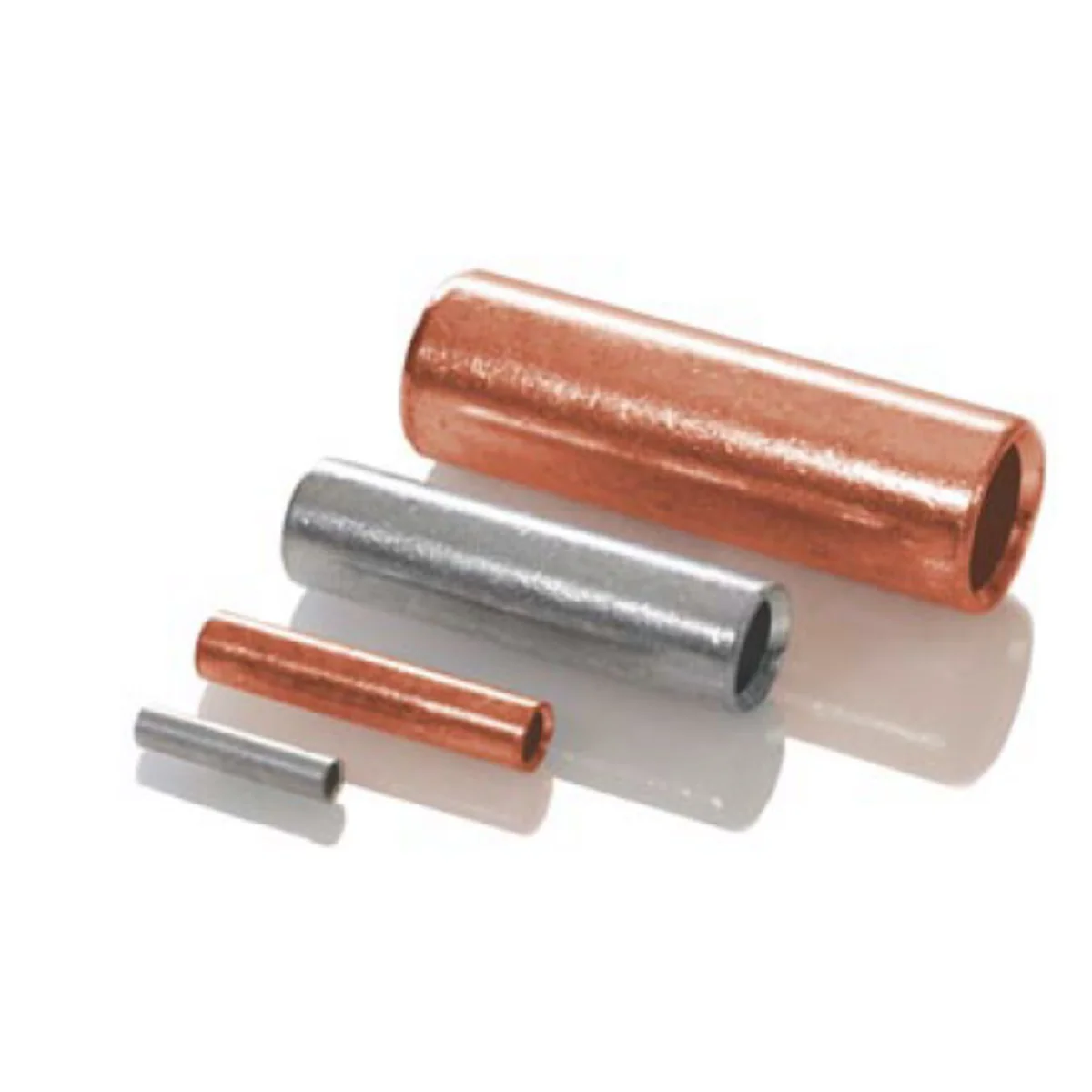

SE EM (tin-plated), SE EM.W (non-tin-plated) and DIN EM (according to DIN 46267) copper tubular cable connectors are used for butt-joining conductors of the same cross-section. The use of pipe connectors increases the safety of the connection and its durability. It is important to remember that this type of connection cannot be mechanically loaded.

All copper pipe fittings distributed by TRYTYT undergo an additional process of hardening and firing at 700°C. This process removes all impurities from the material from which the fitting is made. Unlike non-hardened fittings, hardened fittings are less prone to cracks and micro-cracks during pressing, and thus have better working parameters.

Efficiency of crimping (fixing the connector on the cable) depends on the use of the appropriate tool and the die adapted to the cross-section.

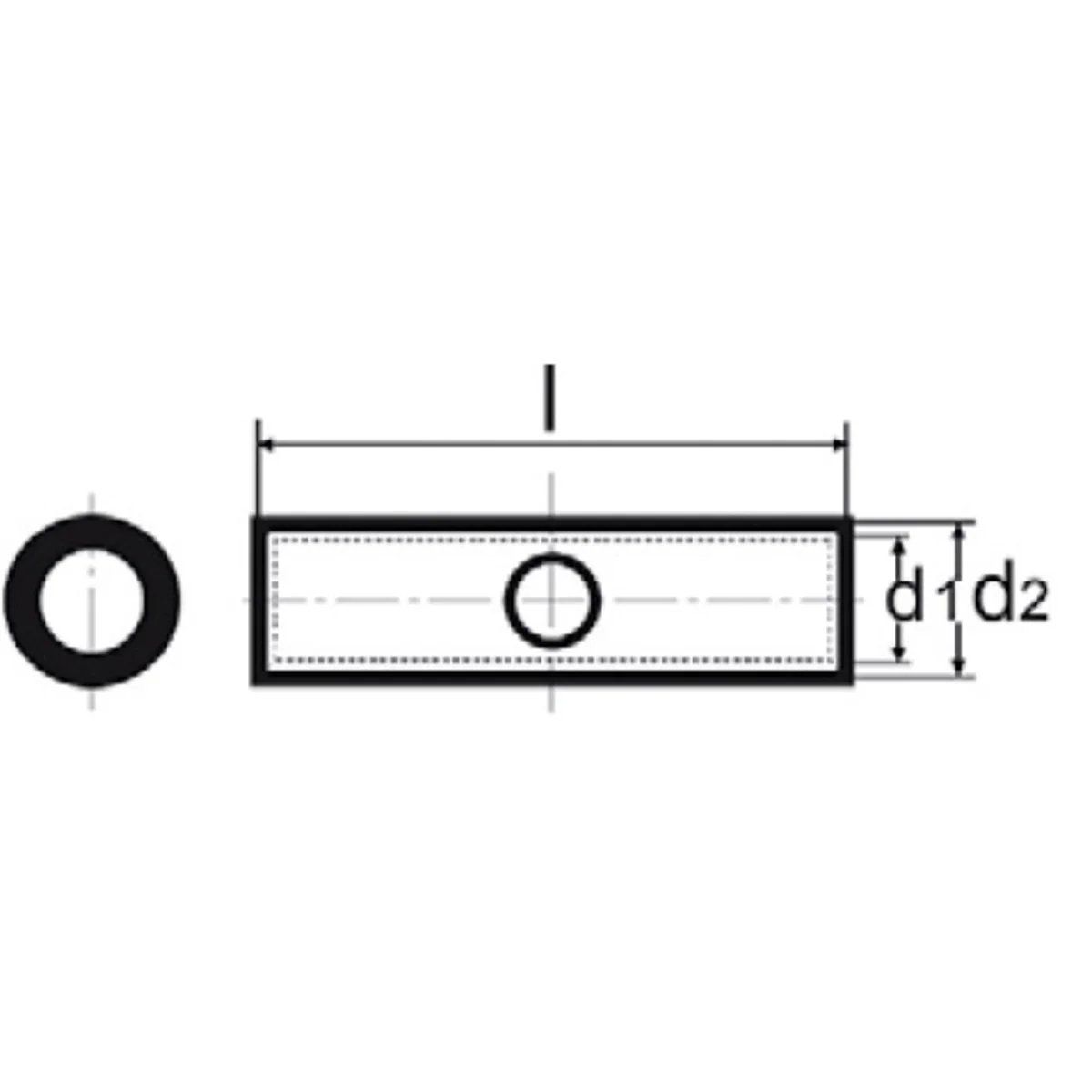

Dati tecnici

  • Material
    Electrolytic copper
  • Inner diameter [mm]
    7
  • cross section [mm²]
    25
  • Pieces in the package
    10
  • Outer diameter [mm]
    10
  • PKWIU
    27.33.13.0

Dettagli del produttore

  • Produttore
    TRYTYT Sp. z o.o.
  • Indirizzo
    43-382 Bielsko-Biała Horeszków 8 Polska
