Connector terminal insulated 0.5-1.5mm² TWI-4,8-1,0/0,8CR
local index:
TCC088BORP
Catalog number:
TWI-4,8-1,0/0,8CR
EAN code:
5901924535898
24
28
zł
gross / pkg.
(including VAT 23%)
0,24 zł gross / pcs.
Availability
Dostępne up to 2 weeks
On request
Dostępność w oddziale
Choose your wholesaler
Choose
Quantity pkg.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Product description

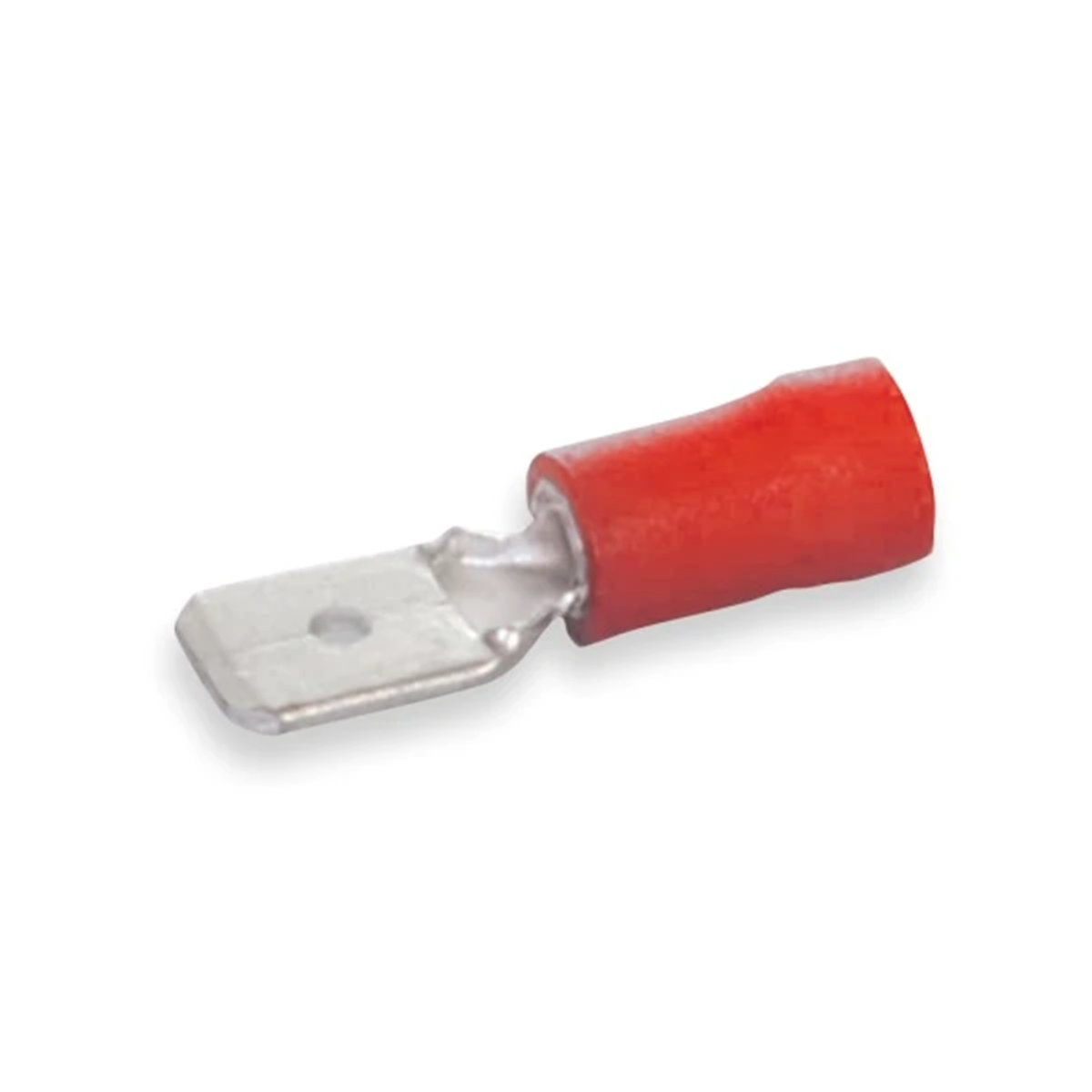

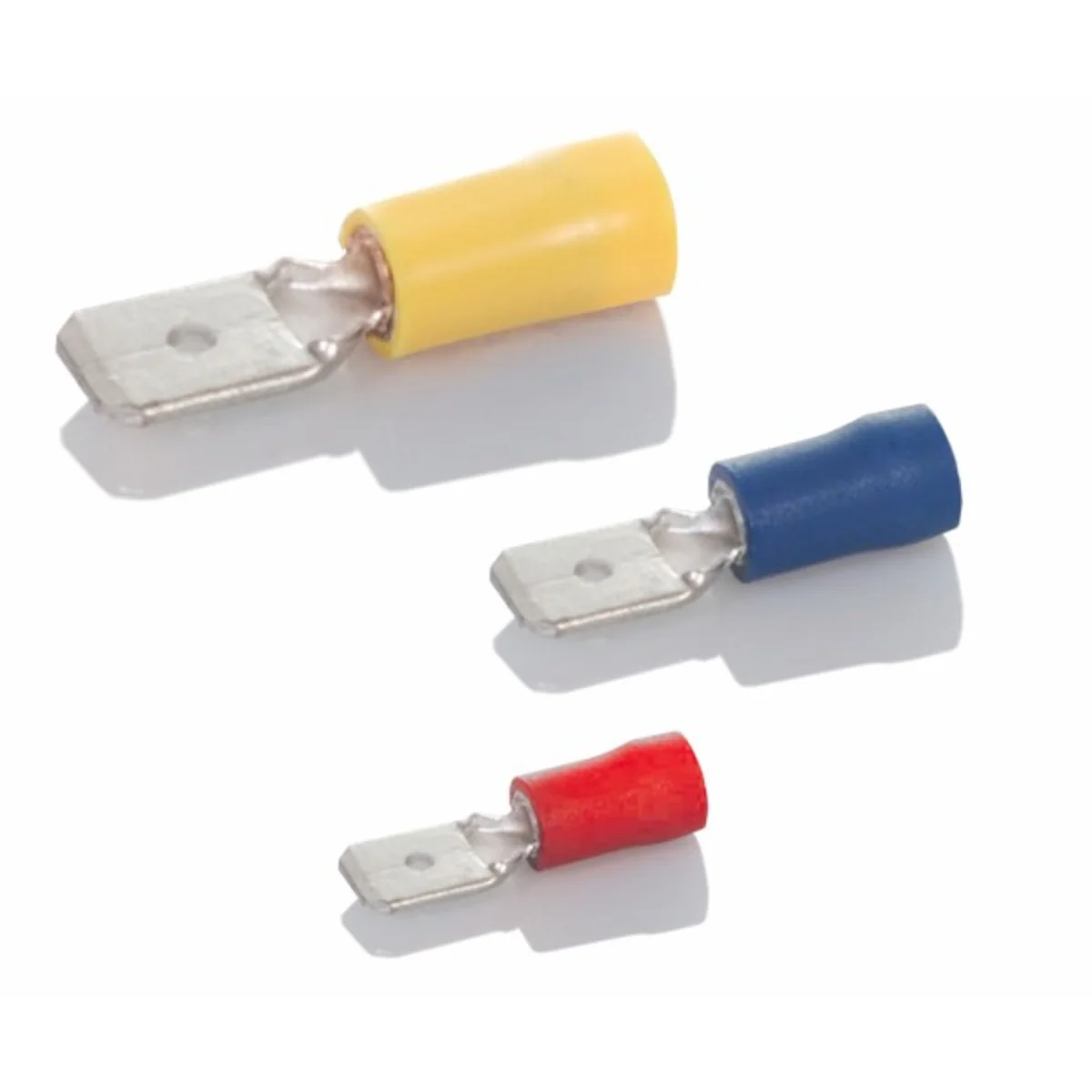

TWI insulated connector terminals - slider.
Technical data
-
Length [mm]19.2
-
ColorRed
-
MaterialTinned brass
-
Rated current [A]10
-
Inner diameter [mm]1.7
-
cross section [mm²]0.5-1.5
-
InsulationPVC
-
Maximum operating temperature [°C]75
-
Rated voltage [V]300
-
Pieces in the package100
-
Outer diameter [mm]3.9
-
PKWIU27.33.13.0
Other technical data
-
ModelPlug
-
Plug dimensionsOther
-
InsulationPartially isolated
-
Material insulationPolyvinyl chloride (PVC)
-
Surface protectionTinned
-
Halogen freeNo
-
With cam clampNo
-
Nominal cross section1.5 ... 1.5 mm²
-
Colour insulationRed
-
MaterialBrass
-
Max. current (Imax)10 A
Manufacturer details
-
ManufacturerTRYTYT Sp. z o.o.
-
Address43-382 Bielsko-Biała Horeszków 8 Polska
-
