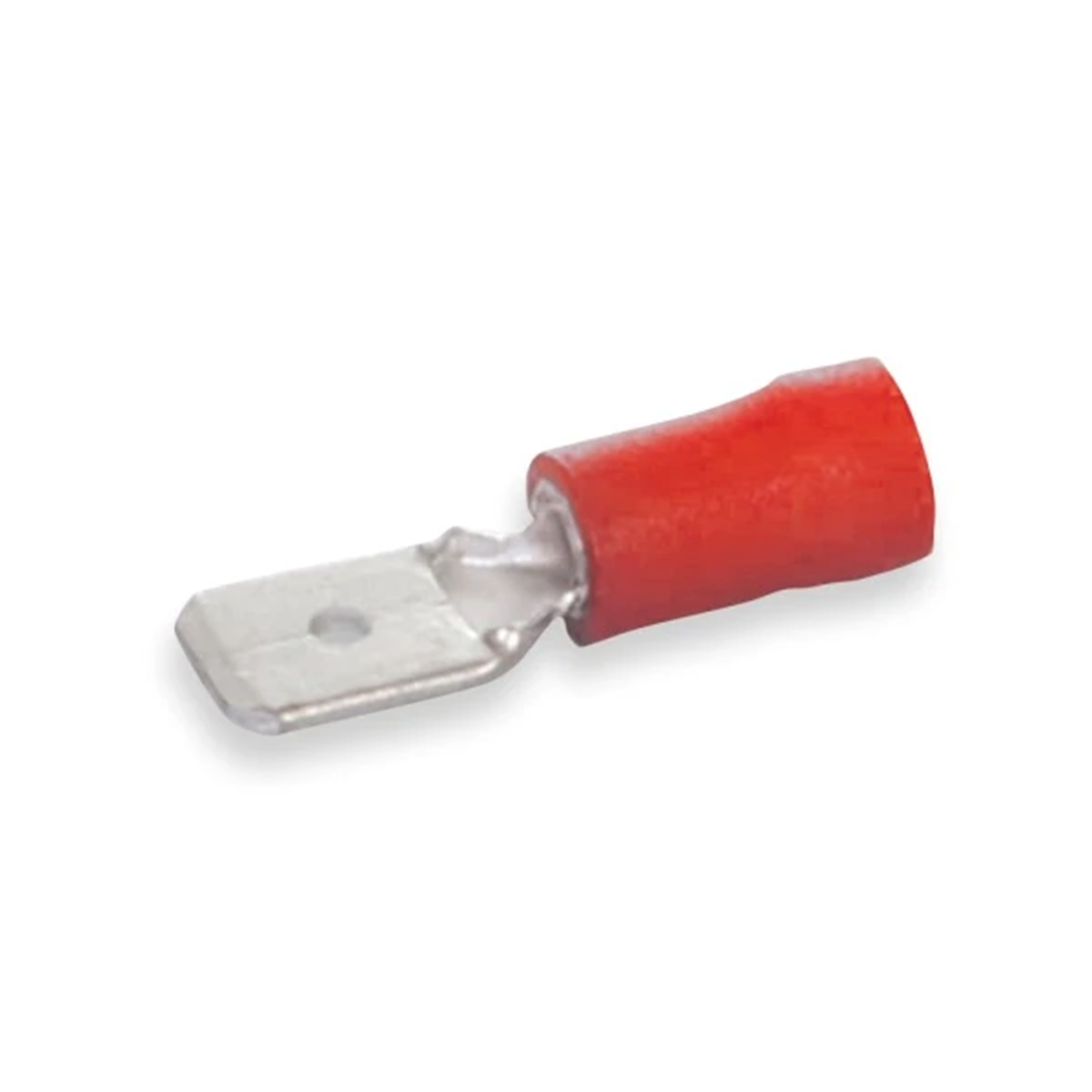

Connector terminal insulated 0.5-1.5mm² TWI-4,8-1,0/0,5CR
local index:
TCC089BORP
Catalog No:
TWI-4,8-1,0/0,5CR
EAN code:
5901924535881
Price:
5,92 €
gross / pkg.
(including VAT 23%)
0,06 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

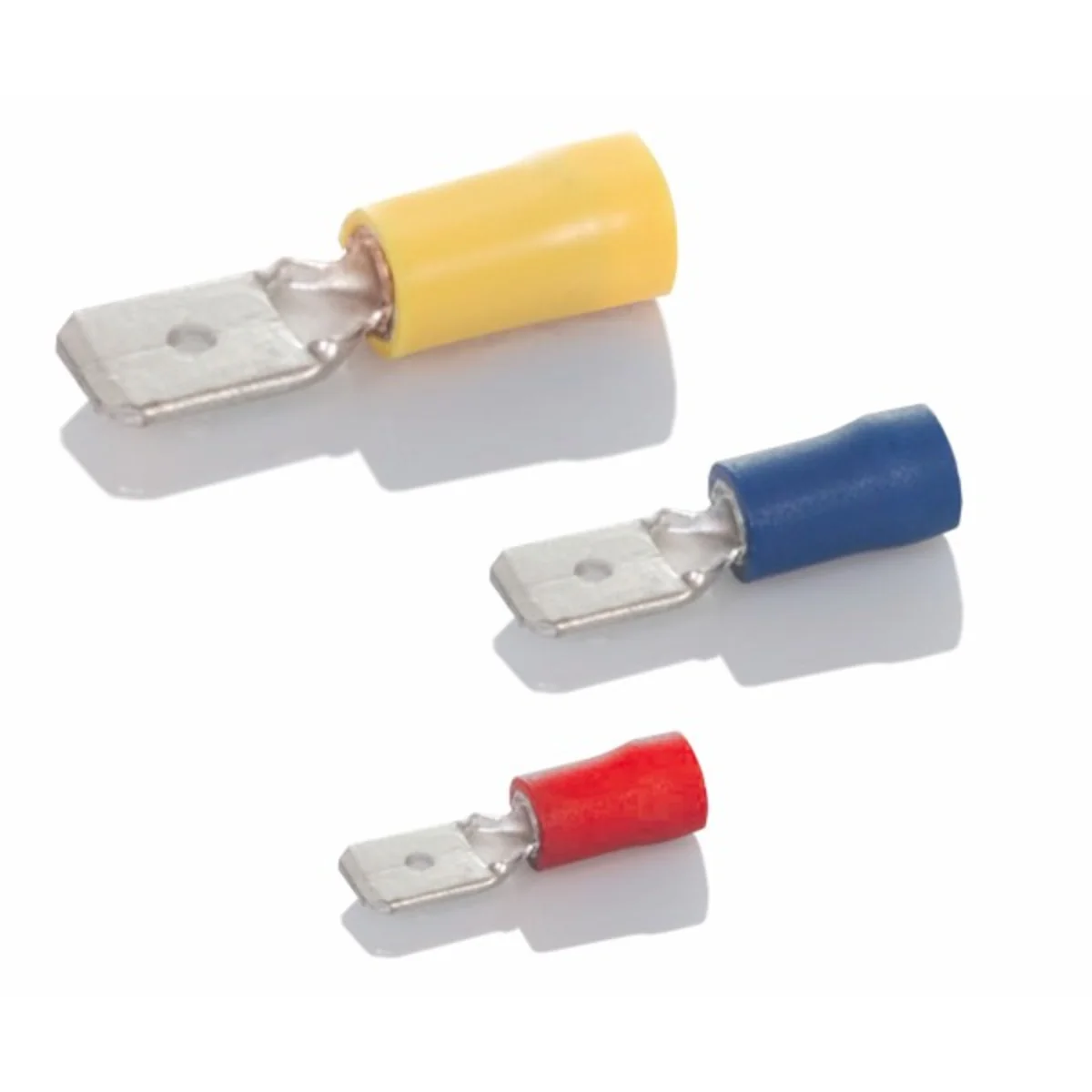

TWI insulated connector terminals - slider.

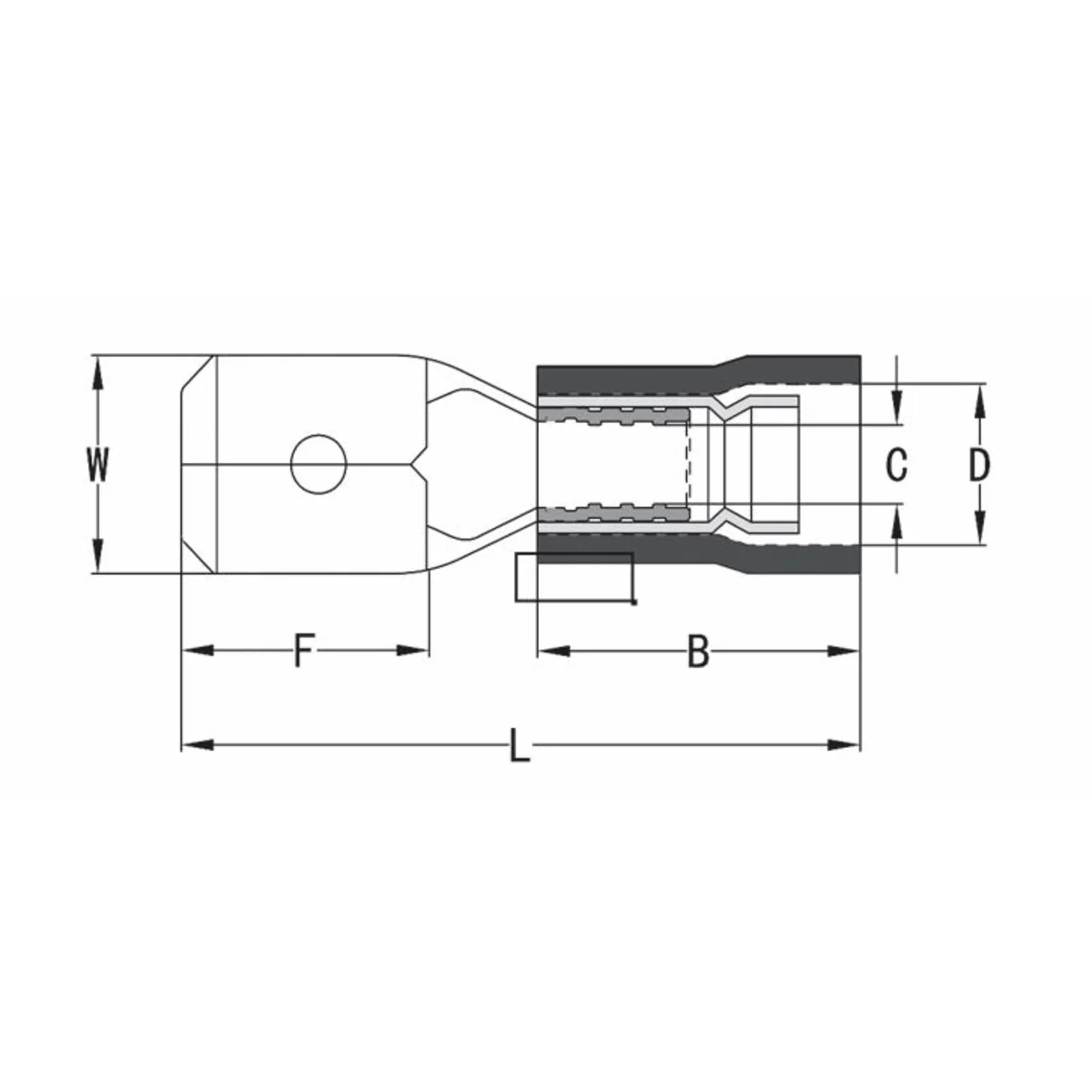

Technical data
-
Length [mm]19.2
-
ColorRed
-
MaterialTinned brass
-
Rated current [A]10
-
Inner diameter [mm]1.7
-
cross section [mm²]0.5-1.5
-
InsulationPVC
-
Maximum operating temperature [°C]75
-
Rated voltage [V]300
-
Pieces in the package100
-
Outer diameter [mm]3.9
-
PKWIU27.33.13.0
Manufacturer details
-
ManufacturerTRYTYT Sp. z o.o.
-
Address43-382 Bielsko-Biała Horeszków 8 Polska
-
