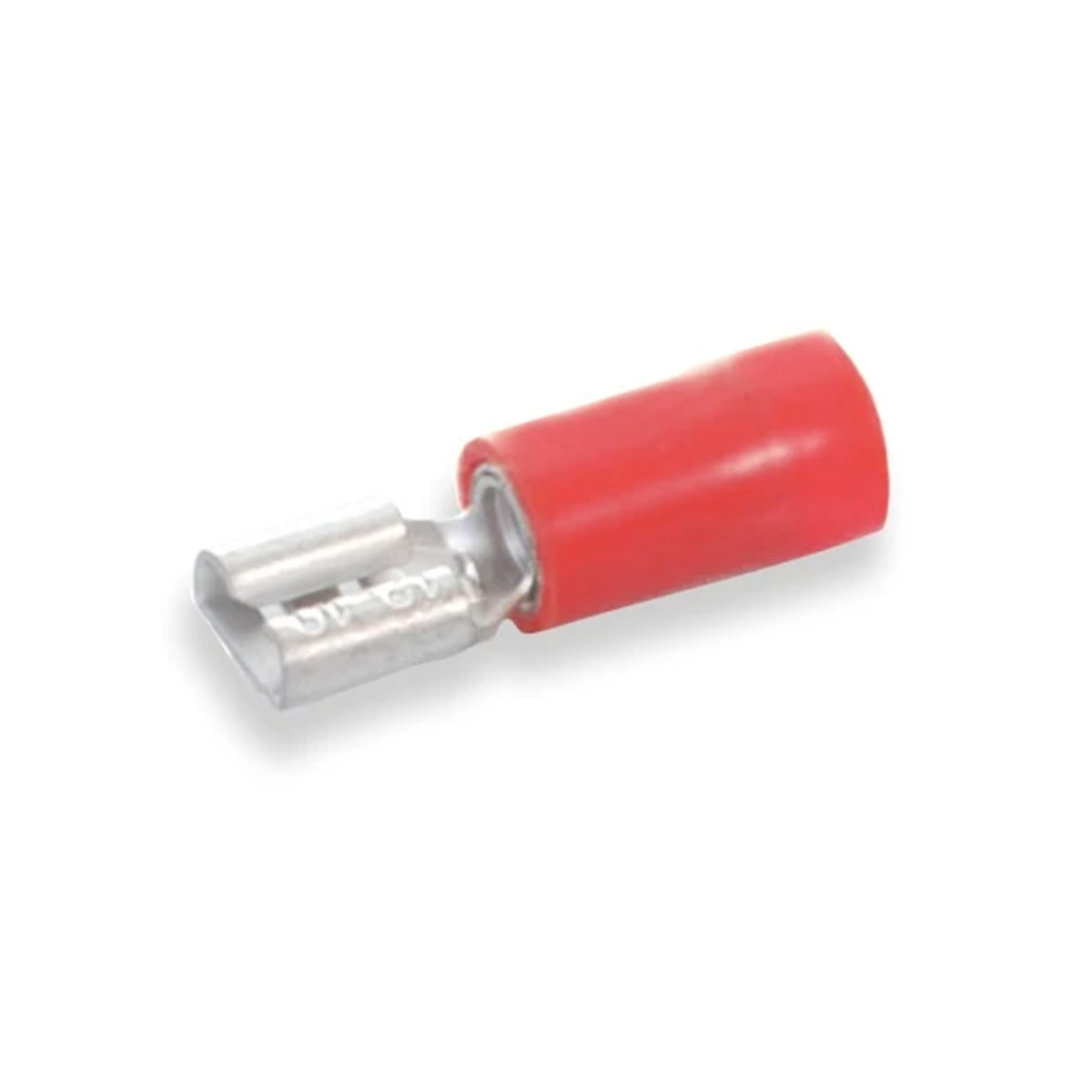

Connector terminal insulated 0.5-1.5mm² TNI-6,3-1,0/0,8CR

local index:
TCC095BORP
Catalog No:
TNI-6,3-1,0/0,8CR
EAN code:
5901924535782
Manufacturer: TRYTYT
Length [mm]: 20.8
Insulation: PVC
Color: Red
Price:
7,38 €
gross / pkg.
(including VAT 23%)
0,07 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

TNI insulated connector terminals - sleeve.

Technical data

  • Length [mm]
    20.8
  • Color
    Red
  • Material
    Tinned brass
  • Rated current [A]
    10
  • Inner diameter [mm]
    1.7
  • cross section [mm²]
    0.5-1.5
  • Insulation
    PVC
  • Maximum operating temperature [°C]
    75
  • Rated voltage [V]
    300
  • Pieces in the package
    100
  • Outer diameter [mm]
    3.9
  • PKWIU
    27.33.13.0
