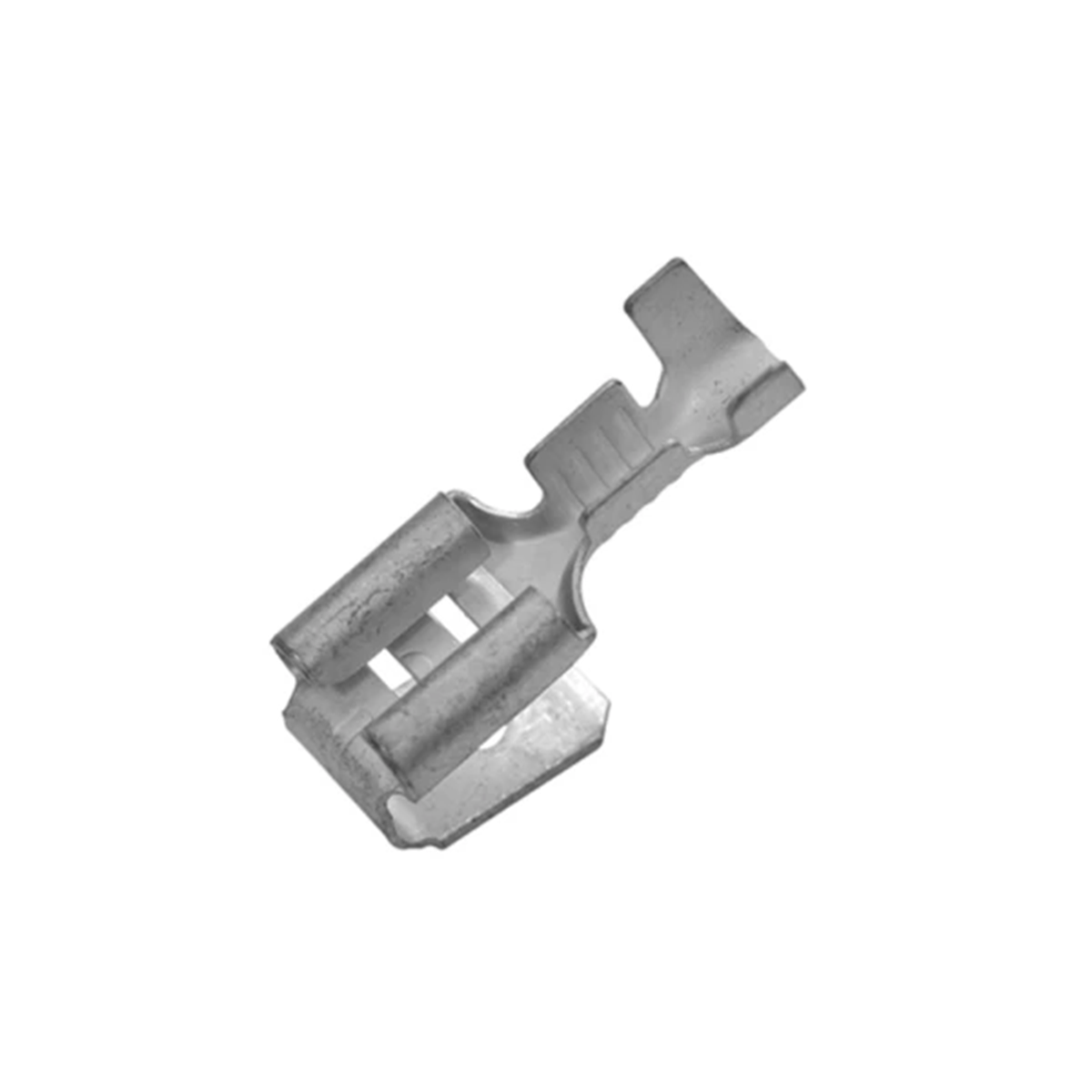

Connector socket with branch tinned brass 1.0 - 2.5 mm² 200 pcs 280094

local index:
TCC034HAUP
Catalog No:
280094
EAN code:
4011923102241
Manufacturer: HAUPA
Length [mm]: 16.2
Model: Nest
Pieces in the package: 200
Price:
47,33 €
gross / pkg.
(including VAT 23%)
0,24 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Flat/round connector: • tinned brass, not insulated • with branch

Technical data

  • Length [mm]
    16.2
  • Pieces in the package
    200
  • Package height [mm]
    40
  • Package weight [kg]
    0.1
  • Socket size
    6.3x0.8
  • cross section [mm²]
    2.5
  • Wire cross-section [mm²]
    2.5
  • Model
    Nest
  • Mesh diameter [mm]
    7.6
  • Package width [mm]
    50
  • Package length [mm]
    80
  • Plug length [mm]
    7.7
  • Insulation material
    Not insulated

Other technical data

  • Model
    Bushing
  • Nominal cross section
    1 ... 2.5 mm²
  • Material
    Brass
  • Plug dimensions
    Flat 6.3x0.8 mm
  • Insulation
    Not isolated
