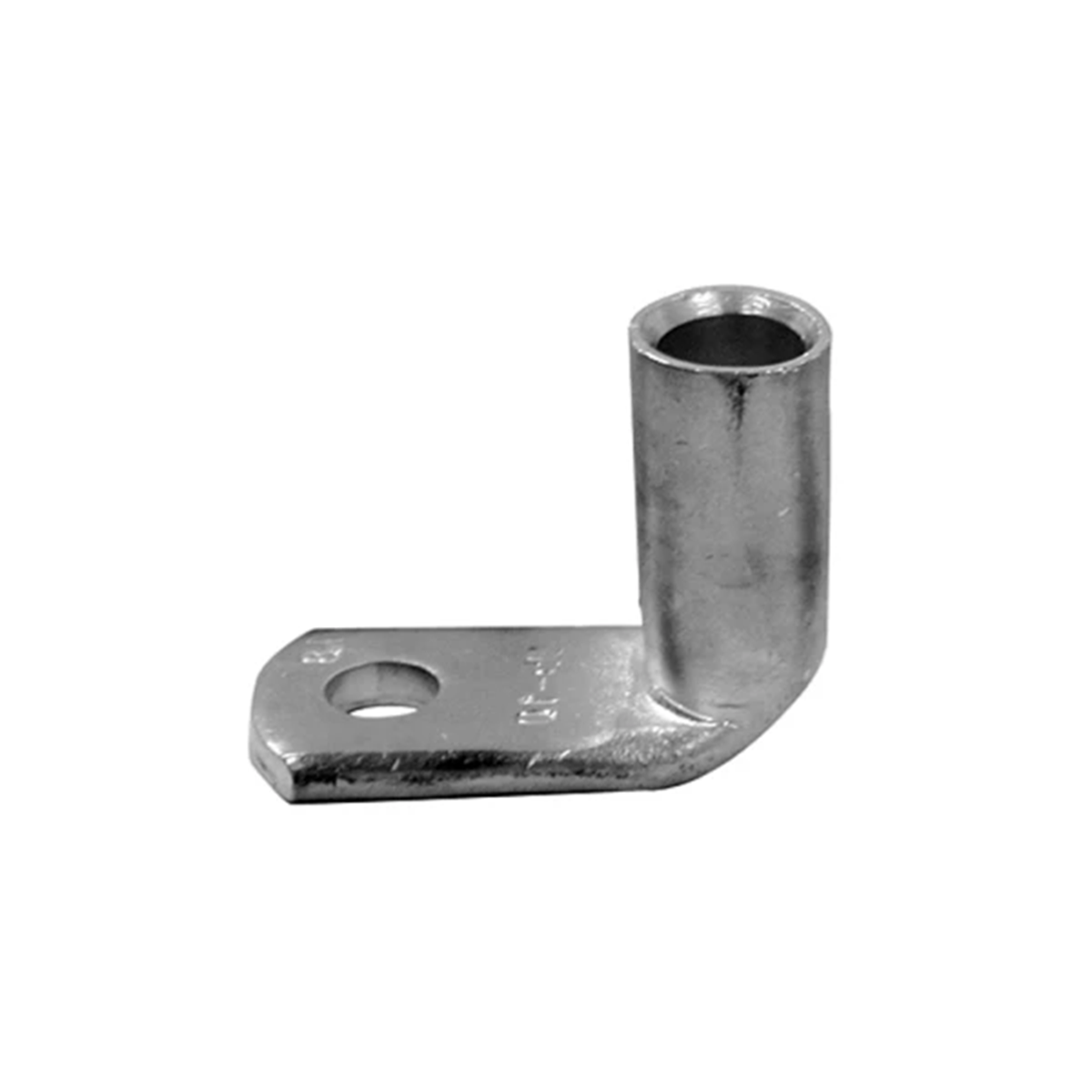

Angled terminal 90° DIN Cu tinned 95/10 10 pcs 291748

local index:
TCC625HAUP
Catalog No:
291748
EAN code:
4011923174156
Manufacturer: HAUPA
angle [°]: 90°
Pieces in the package: 10
Mesh diameter [mm]: 28
Price:
95,20 €
gross / pkg.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Print

Product description

Crimp cable lug for copper conductors according to DIN 46235

Technical data

  • angle [°]
    90°
  • Mesh diameter [mm]
    28
  • Surface protection
    tin plating
  • Package width [mm]
    20
  • Package length [mm]
    60
  • Wire cross-section [mm²]
    95
  • Pieces in the package
    10
  • Hole diameter [mm]
    10.5
  • Package height [mm]
    20
  • Package weight [kg]
    0.6
  • cross section [mm²]
    95

Other technical data

  • Bolt dimension (metric)
    10
  • Number of mounting holes
    1
  • Nominal cross section
    95 mm²
  • Connecting angle
    90°
  • Code digit
    18
