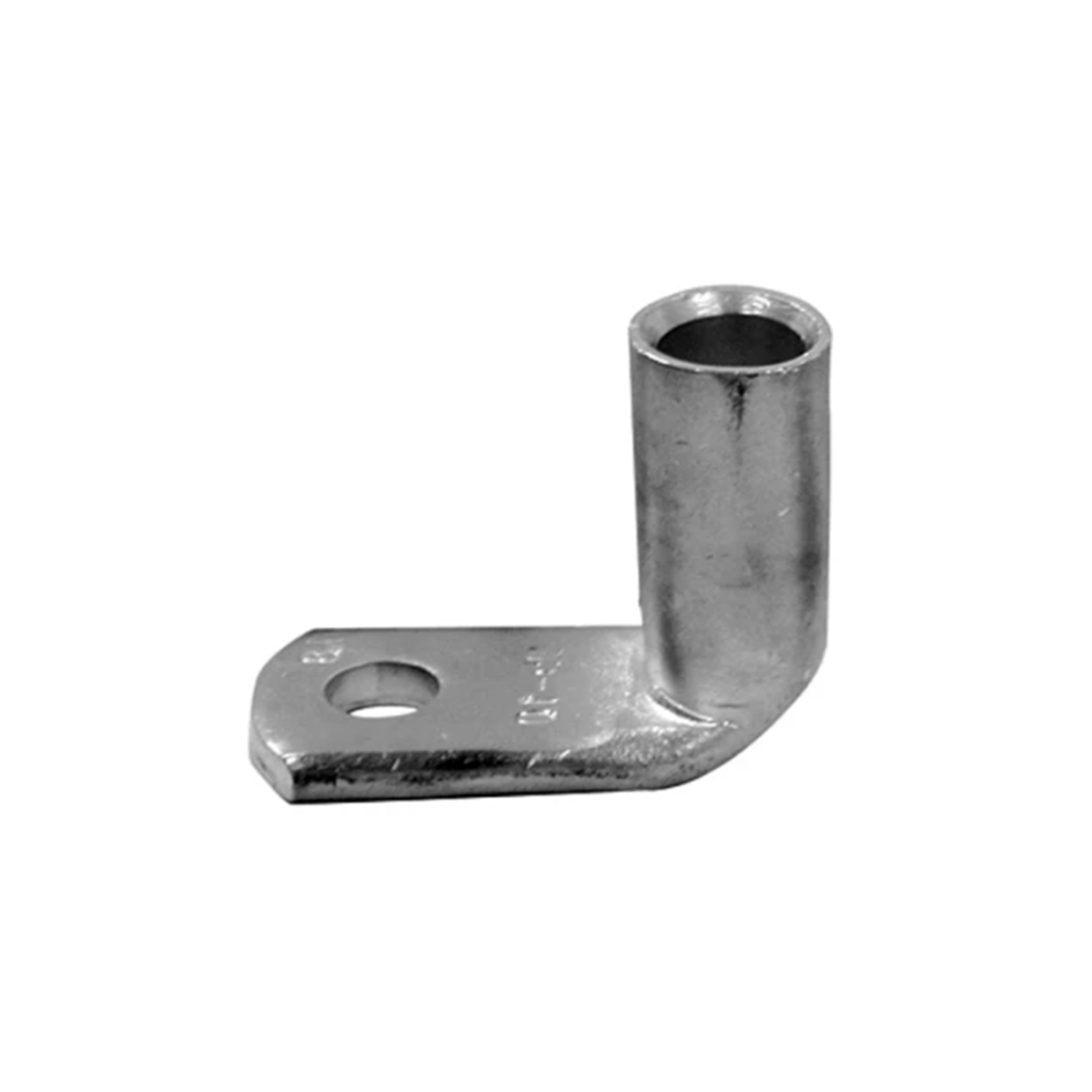

Angled terminal 90° DIN Cu tinned 70/16 30 pcs 291746
local index:
TCC624HAUP
Catalog No:
291746
EAN code:
4011923174149
Price:
201,42 €
gross / pkg.
(including VAT 23%)
6,71 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Crimp cable lug for copper conductors according to DIN 46235
Technical data
-
angle [°]90°
-
Mesh diameter [mm]thirty
-
Outer diameter [mm]11.5
-
Package height [mm]20
-
Package weight [kg]0.4
-
cross section [mm²]70
-
Pieces in the packagethirty
-
Hole diameter [mm]17
-
Surface protectiontin plating
-
Package width [mm]50
-
Package length [mm]100
-
Wire cross-section [mm²]70
Other technical data
-
Bolt dimension (metric)16
-
Number of mounting holes1
-
Nominal cross section70 mm²
-
Connecting angle90°
-
Code digit16
Manufacturer details
-
ManufacturerHAUPA GmbH
-
Address42857 Remscheid Lange Straße 40 Niemcy
-
