Connecting cables and wires
Cable terminals
Cu tips

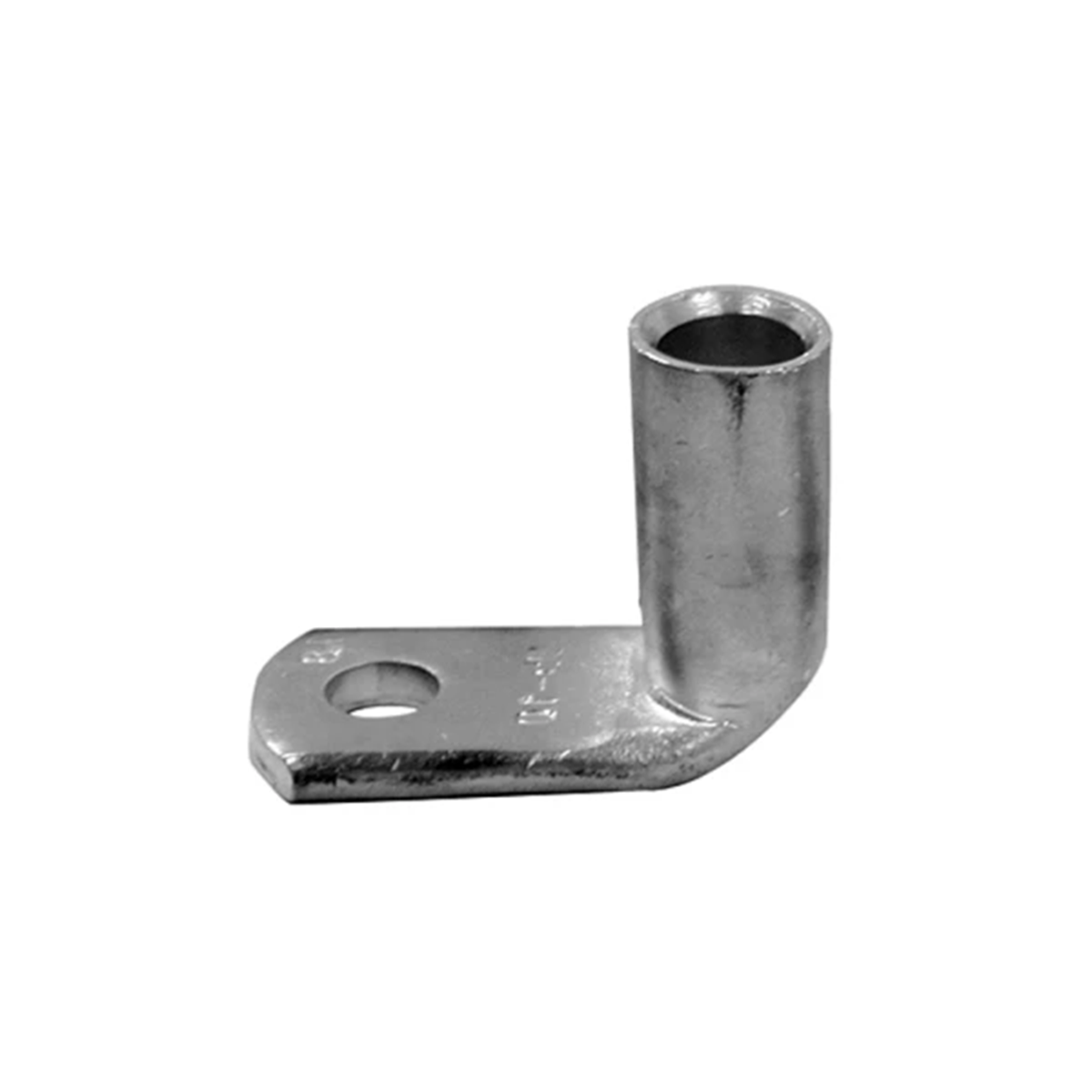

Angled terminal 90° DIN Cu tinned 240/20 10 pcs 291782
local index:
TCC642HAUP
Catalog No:
291782
EAN code:
4011923174323
Click on the photo to enlarge
Manufacturer:
HAUPA
angle [°]:
90°
Pieces in the package:
10
Mesh diameter [mm]:
45
See full description
Price:
285,18 €
gross / pkg.
(including VAT 23%)
28,52 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Product description
Cable terminal crimped to copper wires: • material: 99.9% electrolytic copper • tube dimensions according to DIN 46235 • surface: tin-plated
Technical data
angle [°]
90°
Mesh diameter [mm]
45
Surface protection
tin plating
Package width [mm]
20
Package length [mm]
40
Wire cross-section [mm²]
240
Pieces in the package
10
Hole diameter [mm]
21
Package height [mm]
20
Package weight [kg]
0.4
cross section [mm²]
240
Other technical data
Bolt dimension (metric)
20
Number of mounting holes
1
Nominal cross section
240 mm²
Connecting angle
90°
Code digit
28
Manufacturer details
Manufacturer
HAUPA GmbH & Co. KG
Address
42853 Remscheid Königstr. 165-169 Polska
Phone number
++49 2191 8418-0
E-mail
info@haupa.com
WWW
https://www.haupa.com/de/
