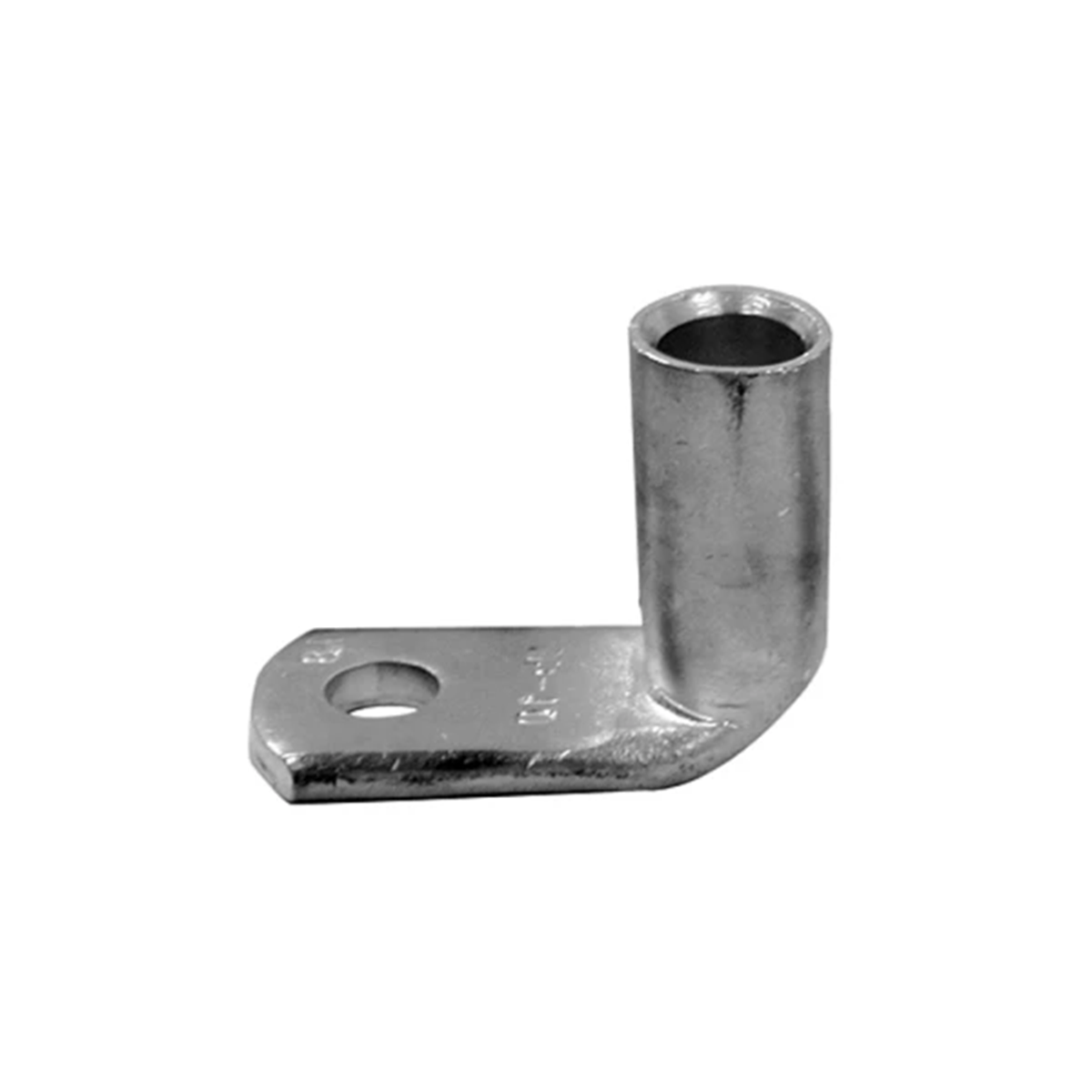

Angled terminal 90° DIN Cu tinned 185/20 10 pcs 291776
local index:
TCC639HAUP
Catalog No:
291776
EAN code:
4011923174293
Price:
200,71 €
gross / pkg.
(including VAT 23%)
20,07 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cable terminal crimped to copper wires: • material: 99.9% electrolytic copper • tube dimensions according to DIN 46235 • surface: tin-plated
Technical data
-
angle [°]90°
-
Mesh diameter [mm]40
-
Surface protectiontin plating
-
Package width [mm]20
-
Package length [mm]40
-
Wire cross-section [mm²]185
-
Pieces in the package10
-
Hole diameter [mm]21
-
Package height [mm]20
-
Package weight [kg]0.4
-
cross section [mm²]185
Other technical data
-
Bolt dimension (metric)20
-
Number of mounting holes1
-
Nominal cross section185 mm²
-
Connecting angle90°
-
Code digit25
Manufacturer details
-
ManufacturerHAUPA GmbH & Co. KG
-
Address42853 Remscheid Königstr. 165-169 Polska
-
