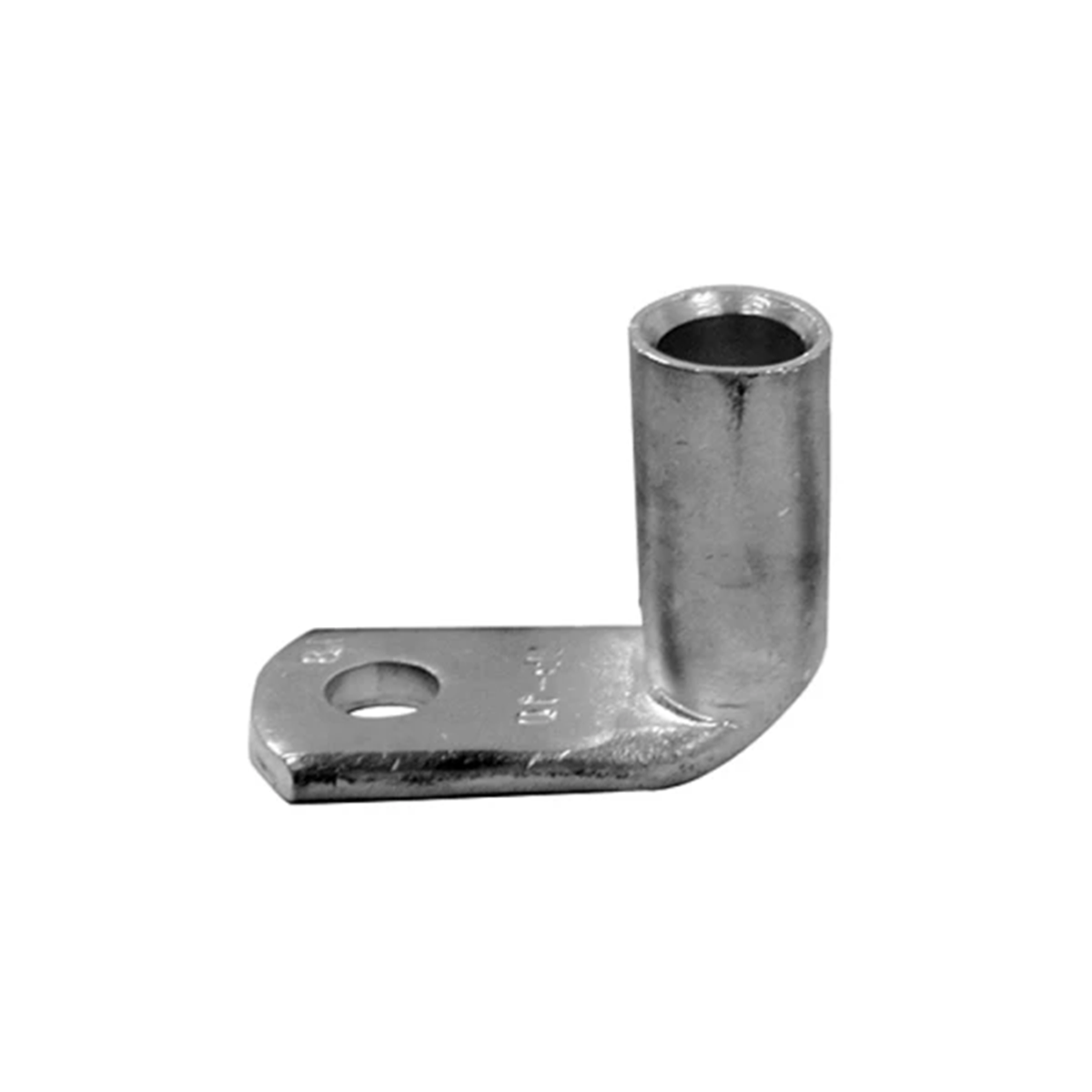

Angled terminal 90° DIN Cu tinned 150/10 15 pcs 291762
local index:
TCC632HAUP
Catalog No:
291762
EAN code:
4011923174224
Price:
257,61 €
gross / pkg.
(including VAT 23%)
17,17 € gross/pcs.
Delivery in 3h
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Cable terminal crimped for copper wires: • material: 99.9% electrolytic copper • tube dimensions according to DIN 46235 • surface: tin-plated
Technical data
-
angle [°]90°
-
Mesh diameter [mm]34
-
Surface protectiontin plating
-
Package width [mm]20
-
Package length [mm]40
-
Wire cross-section [mm²]150
-
Pieces in the package15
-
Hole diameter [mm]10.5
-
Package height [mm]20
-
Package weight [kg]0.4
-
cross section [mm²]150
Other technical data
-
Bolt dimension (metric)10
-
Number of mounting holes1
-
Nominal cross section150 mm²
-
Connecting angle90°
-
Code digit22
Manufacturer details
-
ManufacturerHAUPA GmbH & Co. KG
-
Address42853 Remscheid Königstr. 165-169 Polska
-
