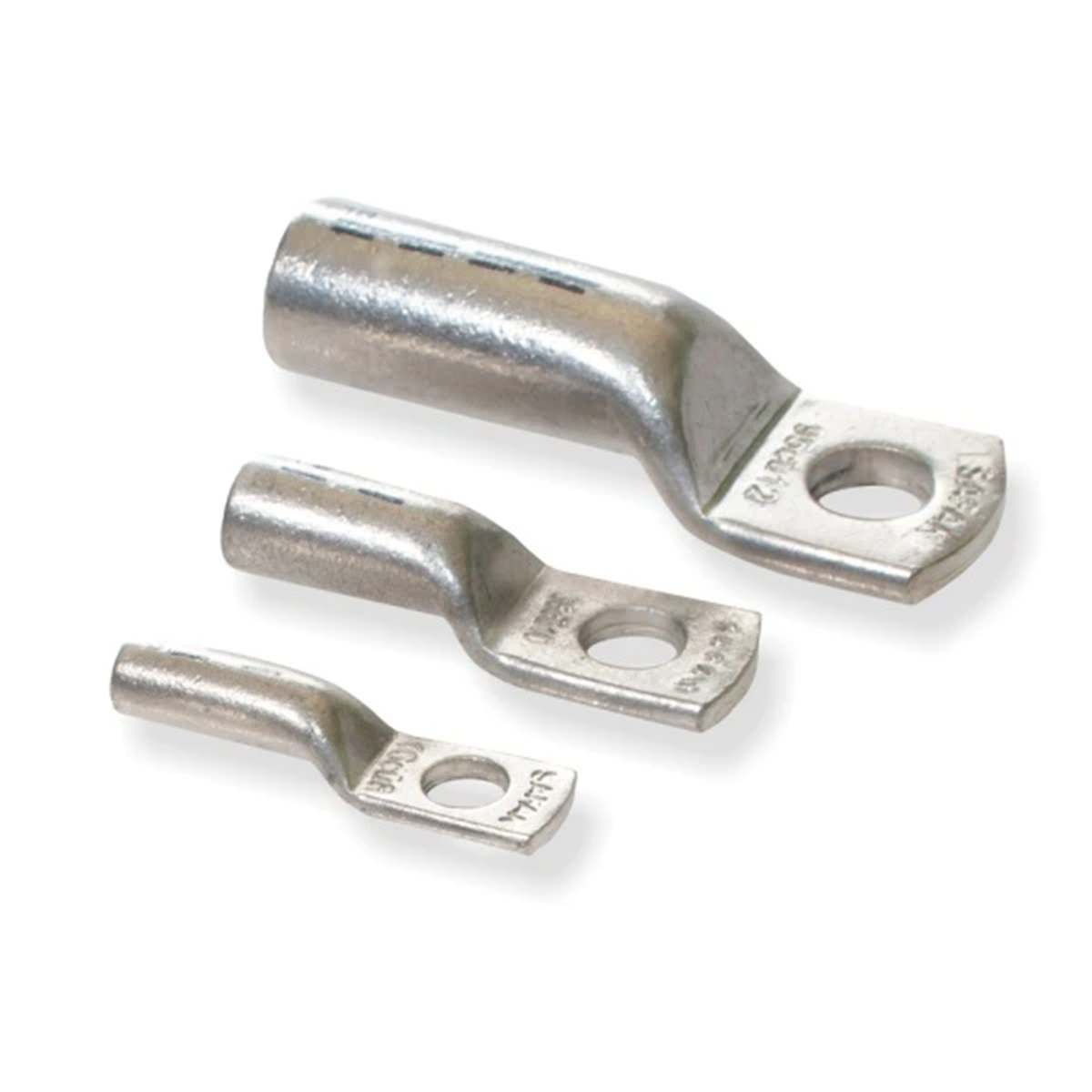

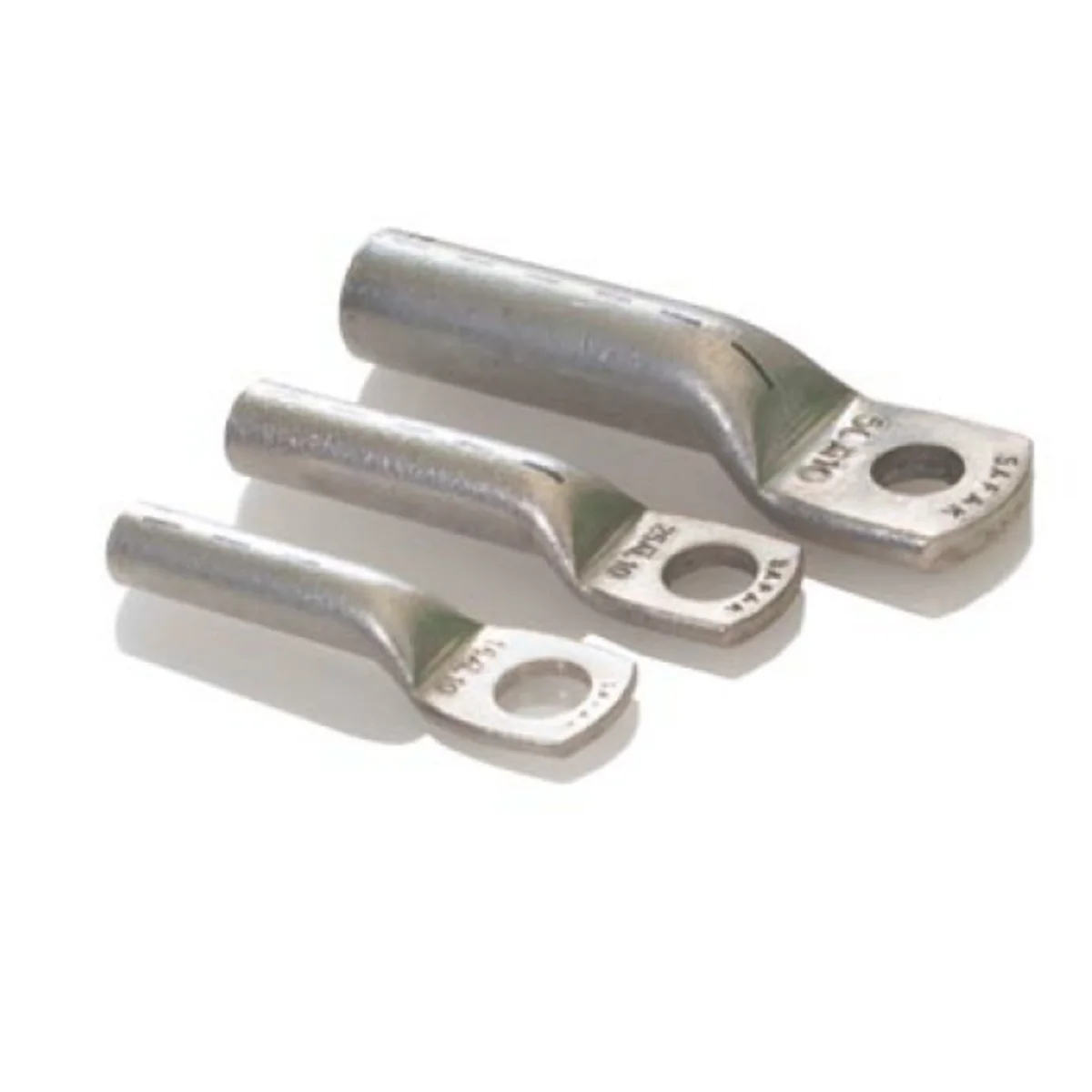

Aluminum tubular ring terminal 95mm² for M16 screw 10 pcs. AL-09516

local index:
TCA013BORP
Catalog No:
AL-09516
EAN code:
8680734701415
Manufacturer: TRYTYT
Length [mm]: 106.5
Material: Aluminum
Type: Oczkowa
Price:
27,17 €
gross / pkg.
(including VAT 23%)
2,72 € gross/pcs.
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Al aluminum tubular ring terminals according to DIN 46329 (tube part), for crimping. They are used where it is necessary to connect the cable to, for example, a switchgear, busbar or other device using a screw terminal. Recommended for use in damp rooms and with high and long-term current loads.

The effectiveness of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.

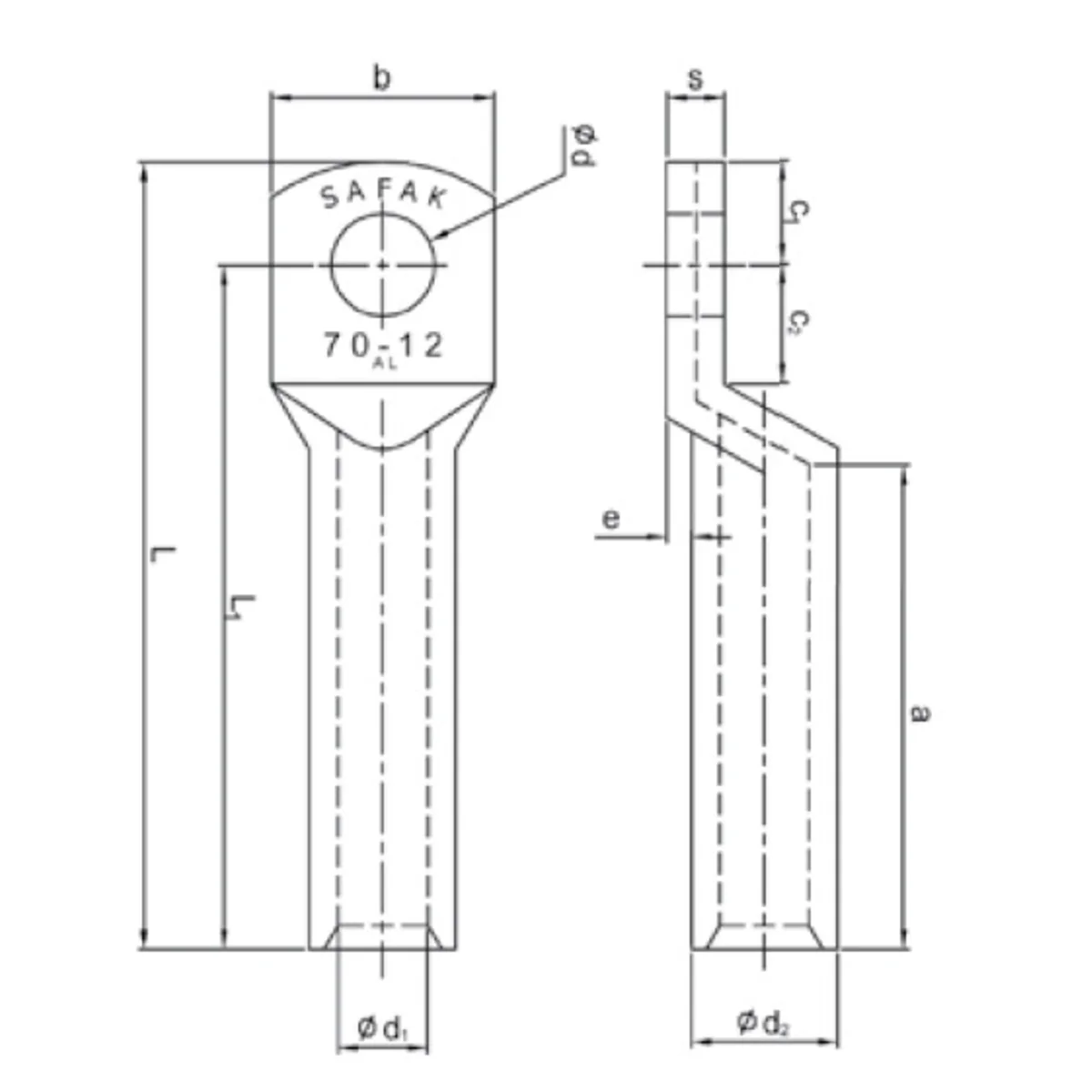

Technical data

  • Length [mm]
    106.5
  • Type
    Oczkowa
  • Pieces in the package
    10
  • Outer diameter [mm]
    21.2
  • cross section [mm²]
    95
  • Material
    Aluminum
  • Width [mm]
    34
  • Inner diameter [mm]
    13.2
  • Screw
    M16
  • PKWIU
    27.33.13.0
