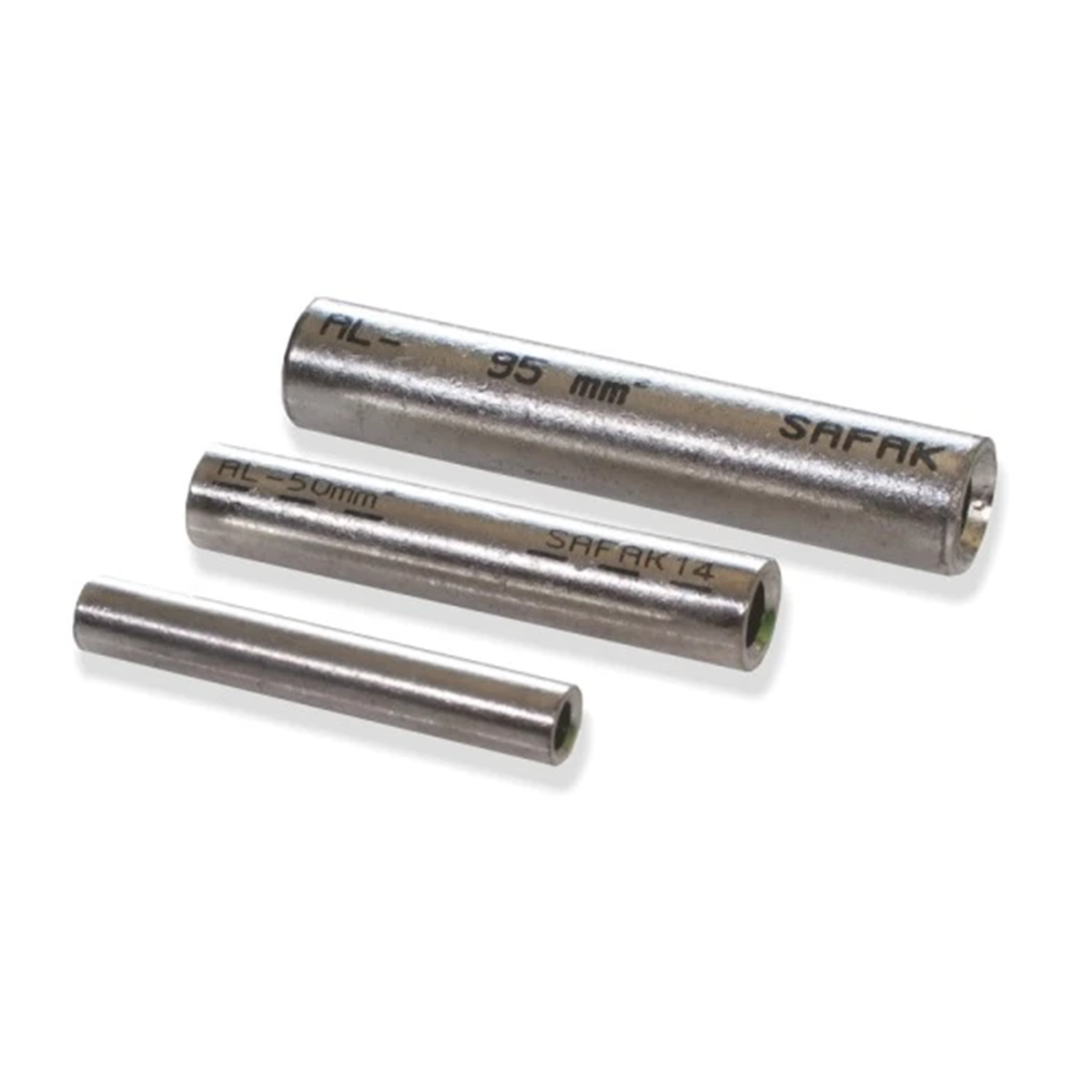

Aluminum butt joint 70mm² 10pcs AL EM-070

local index:
TCT011BORP
Catalog No:
AL EM-070
EAN code:
8680734701637
Manufacturer: TRYTYT
Length [mm]: 99
Material: Aluminum
Pieces in the package: 10
Price:
15,25 €
gross / pkg.
(including VAT 23%)
1,53 € gross/pcs.
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pkg.
(multiplicity:
1
)
Add to clipboard
Print

Product description

AL EM aluminum pipe couplings (according to DIN 46267) are used for butt jointing of two conductors of the same cross-section. The use of pipe connectors increases the safety of the connection and its durability. It is important to remember that this type of connection cannot be mechanically loaded.

The effectiveness of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.

Technical data

  • Length [mm]
    99
  • Pieces in the package
    10
  • Outer diameter [mm]
    18.4
  • PKWIU
    27.33.13.0
  • Material
    Aluminum
  • Inner diameter [mm]
    11.2
  • cross section [mm²]
    70
