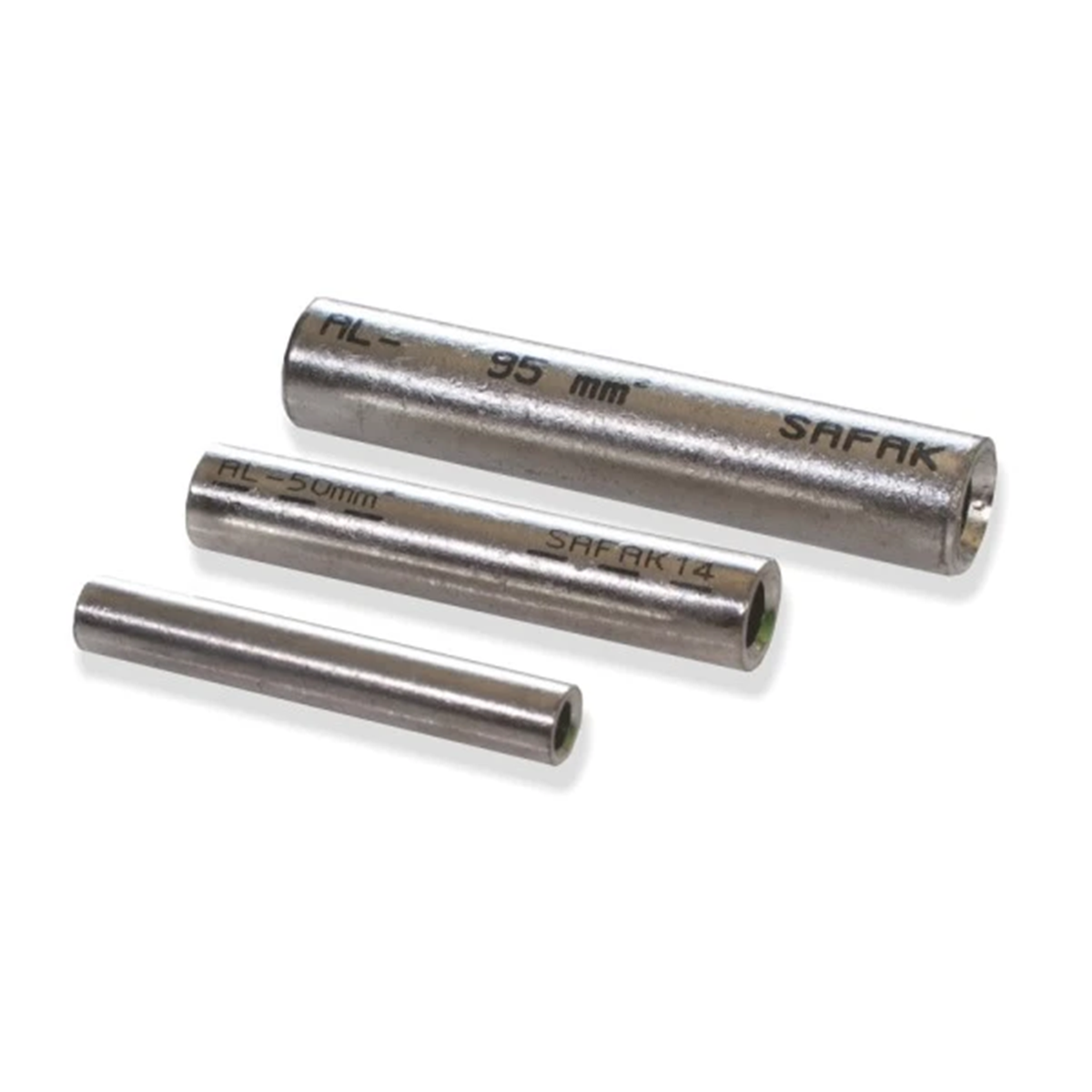

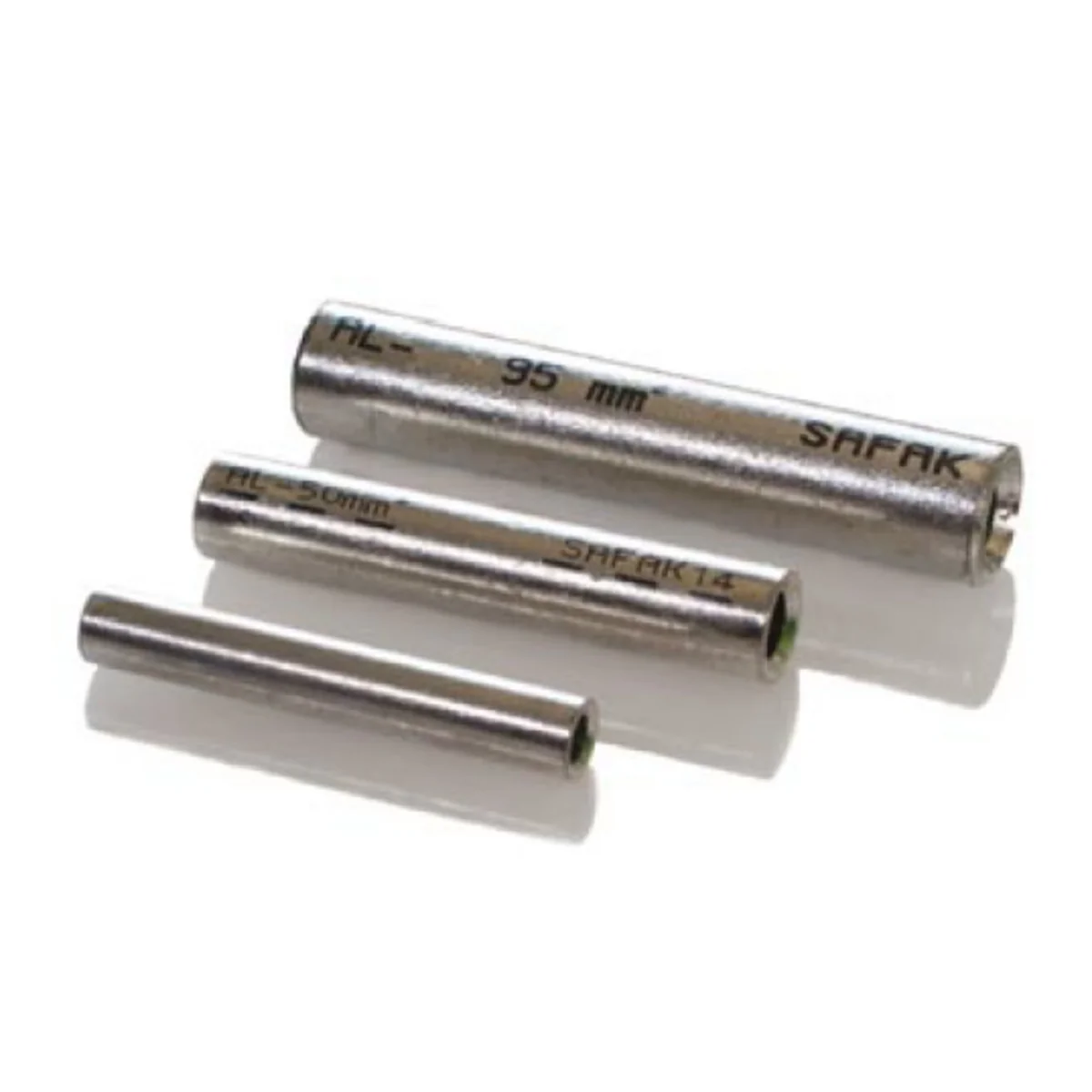

Aluminum butt joint 25mm² 10pcs AL EM-025

local index:
TCT006BORP
Catalog No:
AL EM-025
EAN code:
8680734701606
Price:
8,07 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

AL EM aluminum pipe couplings (according to DIN 46267) are used for butt jointing of two conductors of the same cross-section. The use of pipe connectors increases the safety of the connection and its durability. It is important to remember that this type of connection cannot be mechanically loaded.

The effectiveness of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.

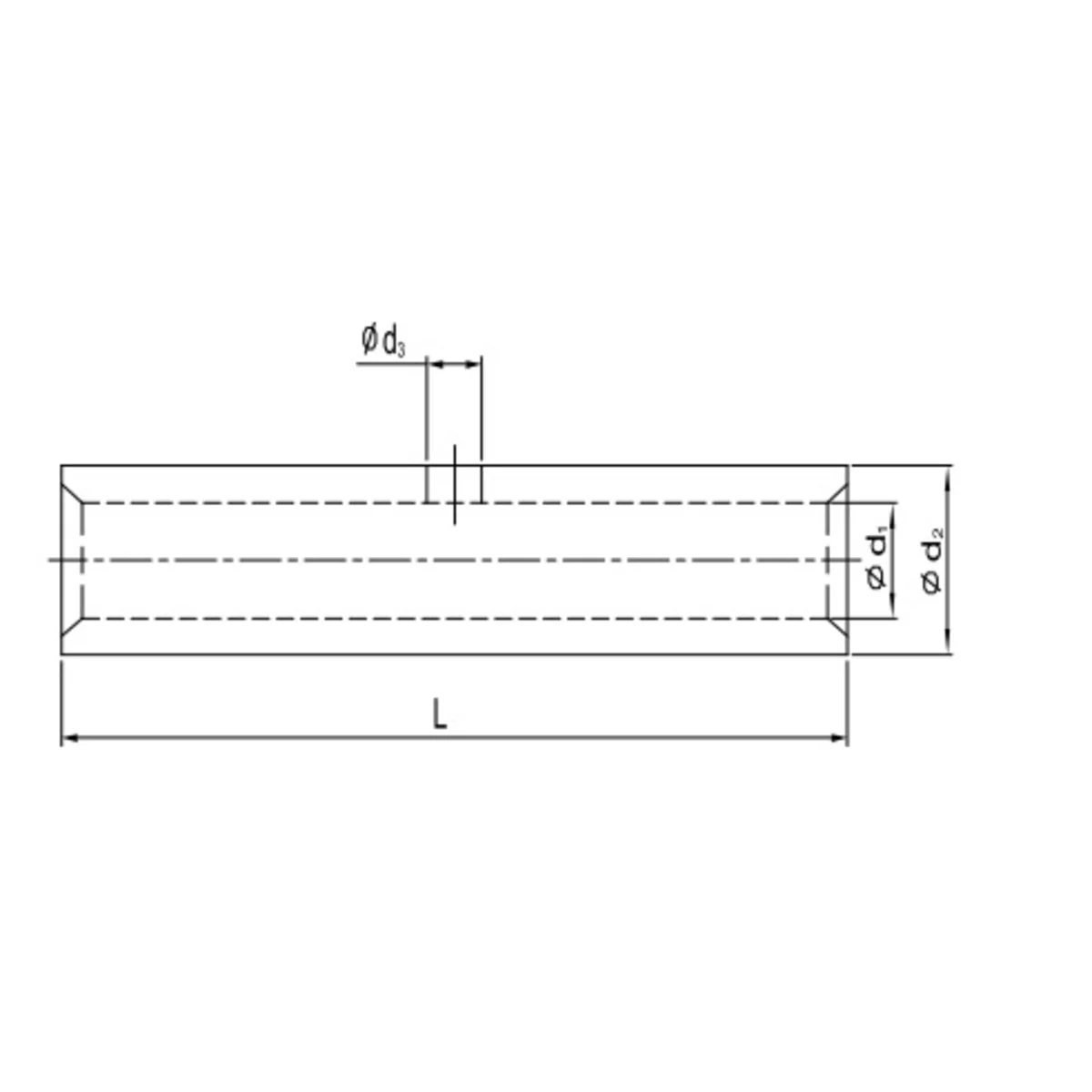

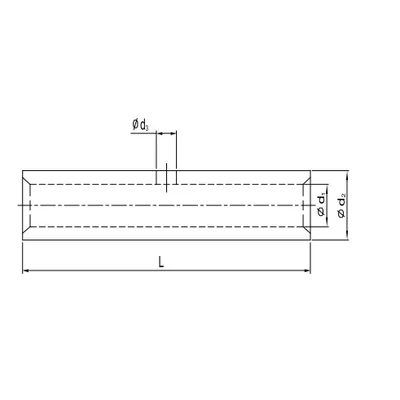

Technical data

  • Length [mm]
    69.5
  • Pieces in the package
    10
  • Outer diameter [mm]
    11.4
  • Material
    Aluminum
  • Inner diameter [mm]
    6.8
  • cross section [mm²]
    25
