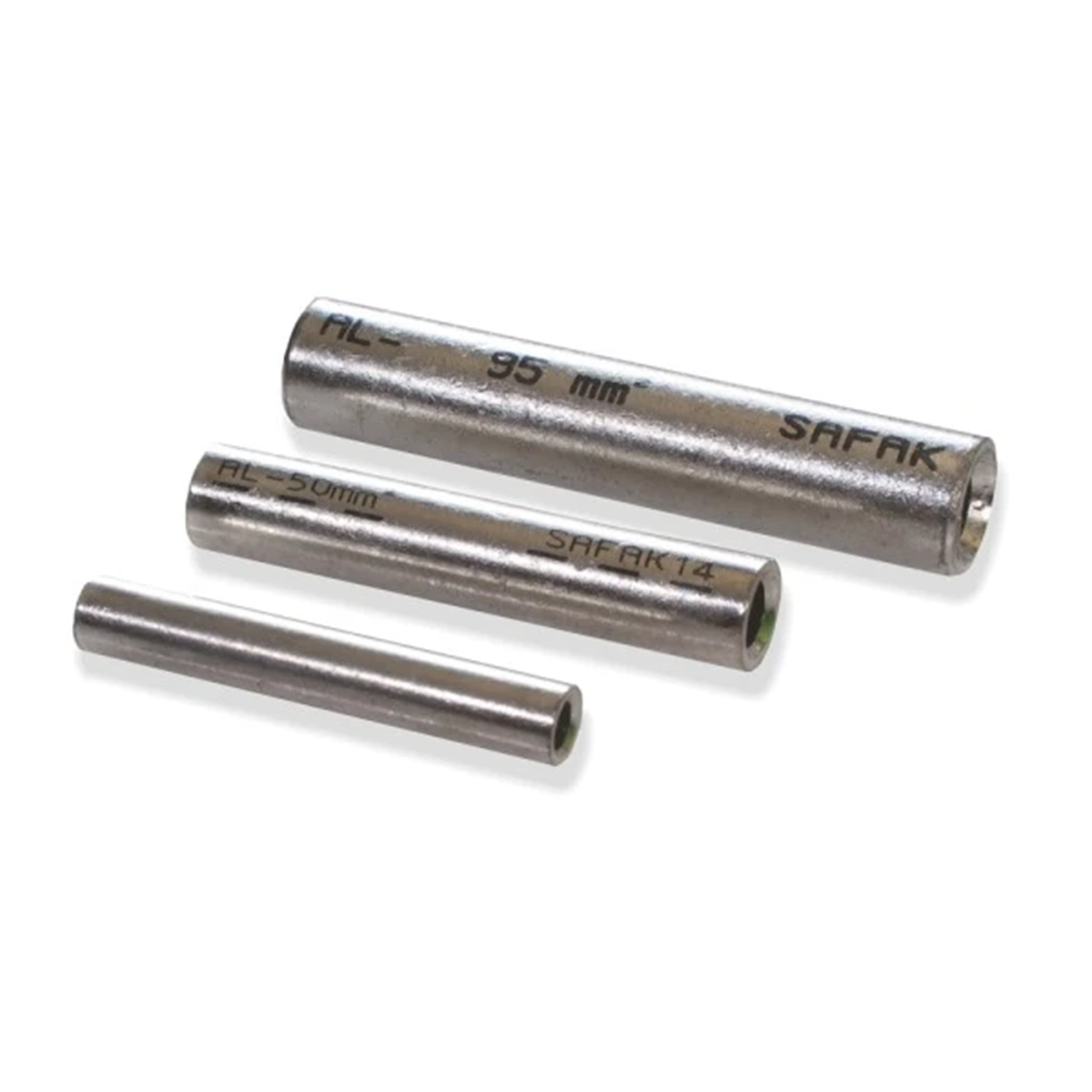

Aluminum butt joint 185mm² AL EM-185

local index:
TCT004BORP
Catalog No:
AL EM-185
EAN code:
8680734701675
Manufacturer: TRYTYT
Length [mm]: 125
Material: Aluminum
Inner diameter [mm]: 18.3
Price:
5,55 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

AL EM aluminum pipe couplings (according to DIN 46267) are used for butt-joining two conductors of the same cross-section. The use of pipe connectors increases the safety of the connection and its durability. It is important to remember that this type of connection cannot be mechanically loaded.

The effectiveness of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.

Technical data

  • Length [mm]
    125
  • Inner diameter [mm]
    18.3
  • cross section [mm²]
    185
  • Material
    Aluminum
  • Outer diameter [mm]
    29
  • PKWIU
    27.33.13.0
