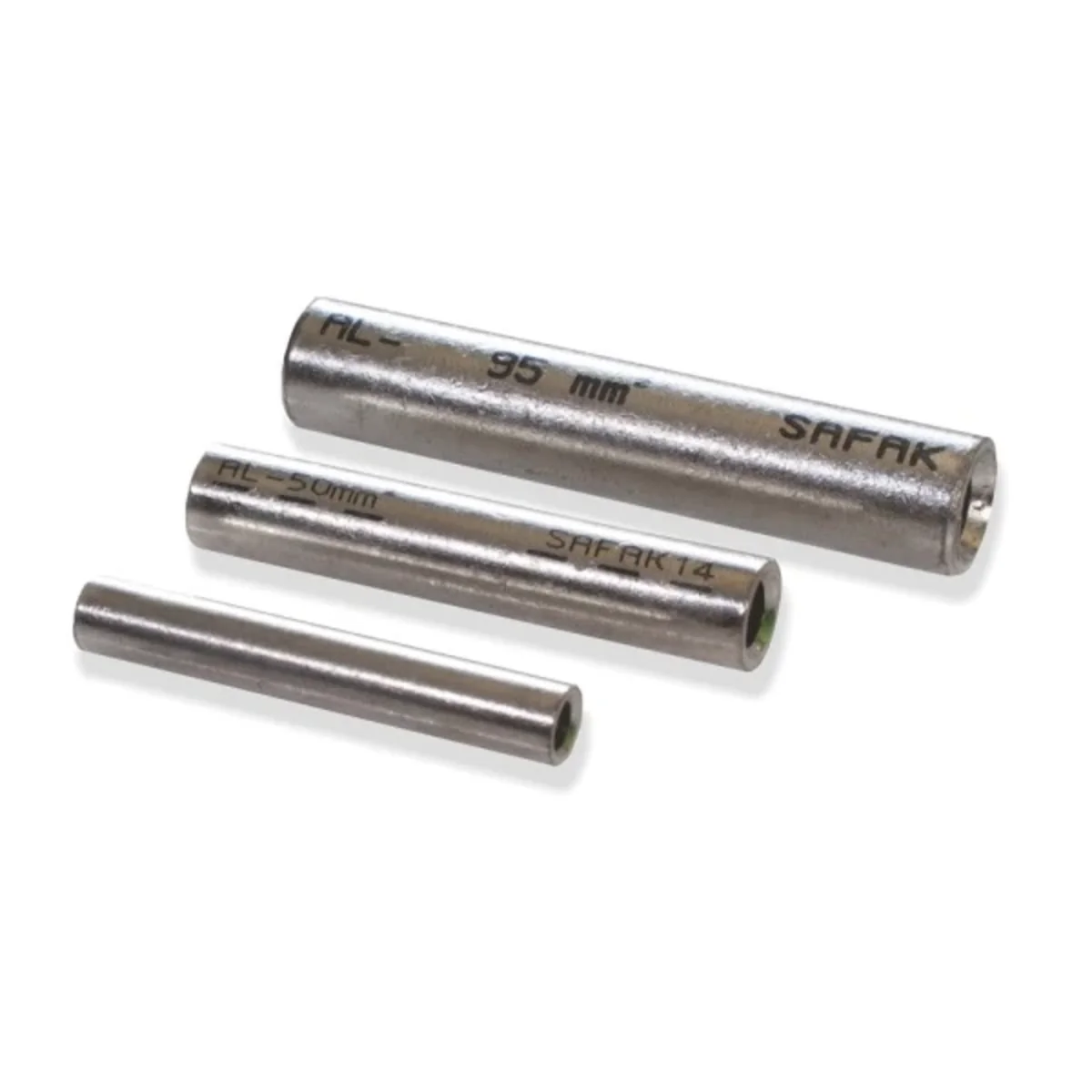

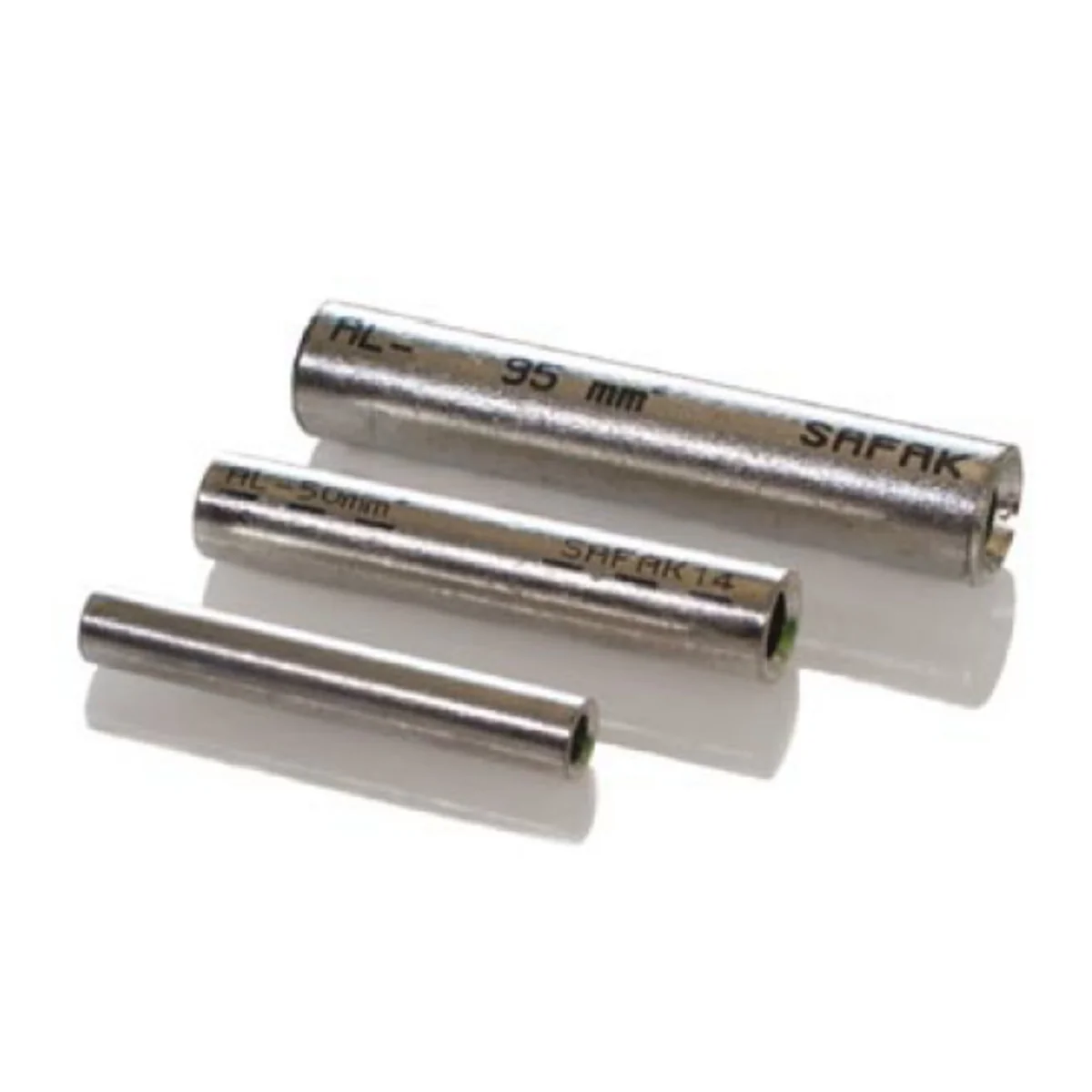

Aluminum butt joint 16mm² 10pcs AL EM-016

local index:
TCT003BORP
Catalog No:
AL EM-016
EAN code:
8680734701590
Price:
9,57 €
gross / pkg.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,68 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

AL EM aluminum pipe couplings (according to DIN 46267) are used for butt jointing of two conductors of the same cross-section. The use of pipe connectors increases the safety of the connection and its durability. It is important to remember that this type of connection cannot be mechanically loaded.

Efficiency of crimping (fixing the terminal on the cable) depends on the use of the appropriate tool and the die adapted to the cross-section.

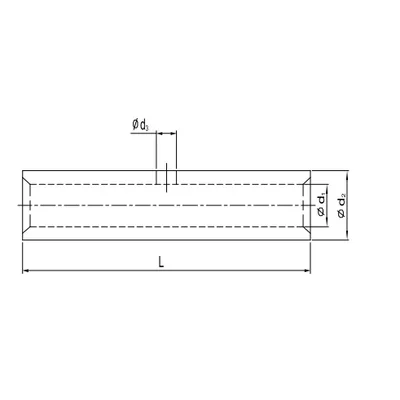

Technical data

  • Length [mm]
    61.5
  • Pieces in the package
    10
  • Outer diameter [mm]
    9.7
  • Material
    Aluminum
  • Inner diameter [mm]
    5.8
  • cross section [mm²]
    16
