Aluminum butt joint 150mm² AL EM-150

local index:
TCT002BORP
Catalog No:
AL EM-150
EAN code:
8680734701668
Price:
4,10 €
gross / pcs.
including VAT 23%
Availability:
up to 4 weeks (business days)
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

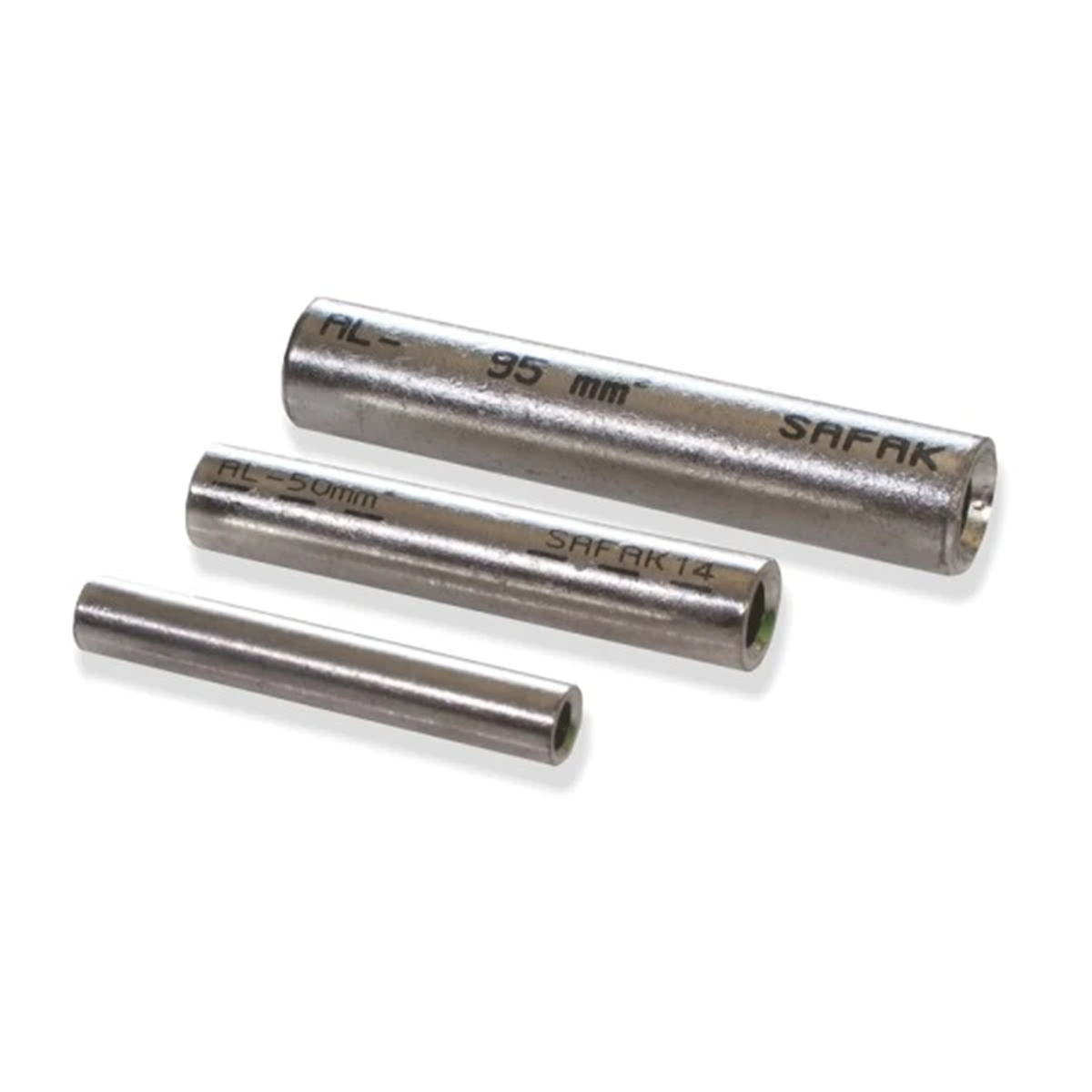

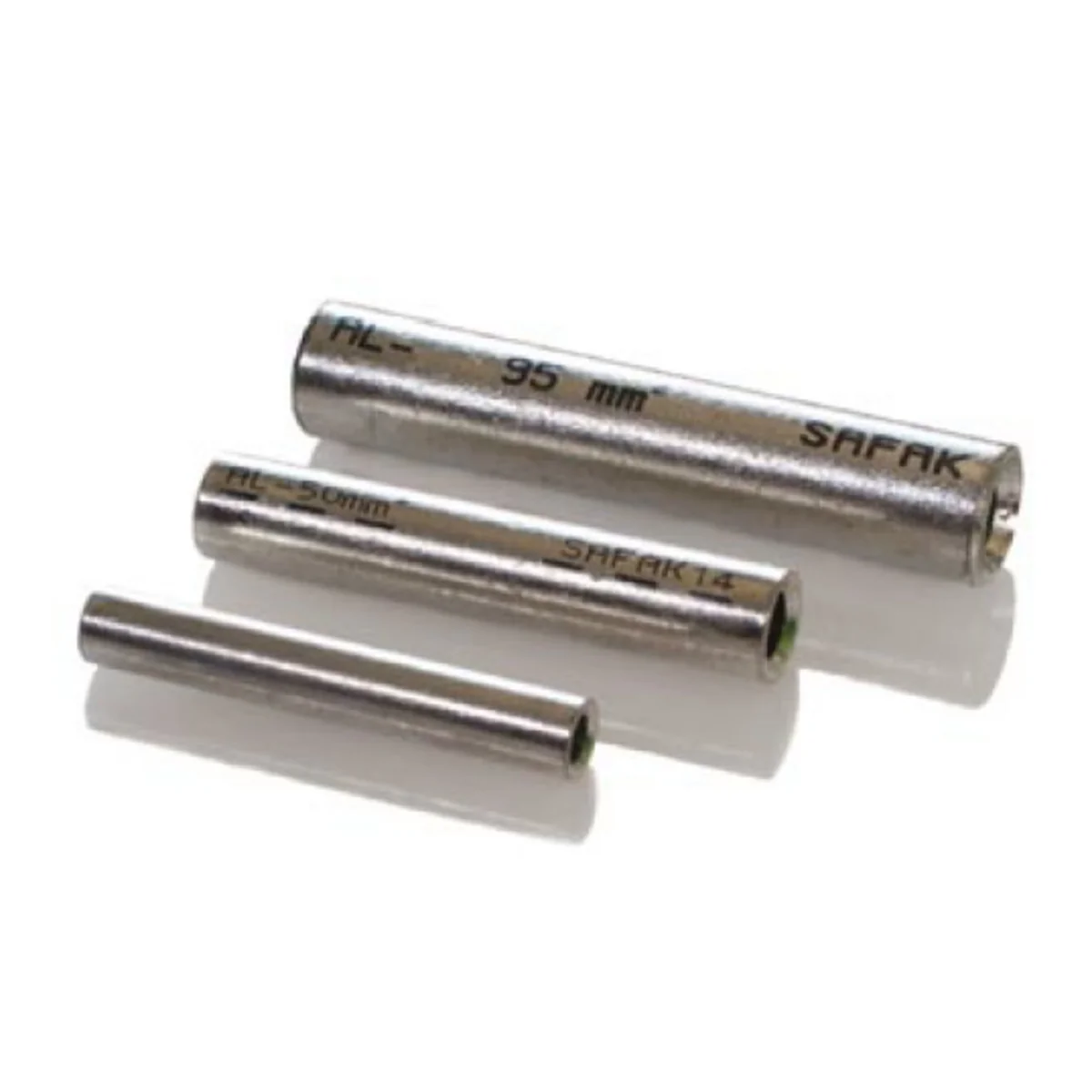

AL EM aluminum pipe couplings (according to DIN 46267) are used for butt-joining two conductors of the same cross-section. The use of pipe connectors increases the safety of the connection and its durability. It is important to remember that this type of connection cannot be mechanically loaded.

The effectiveness of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.

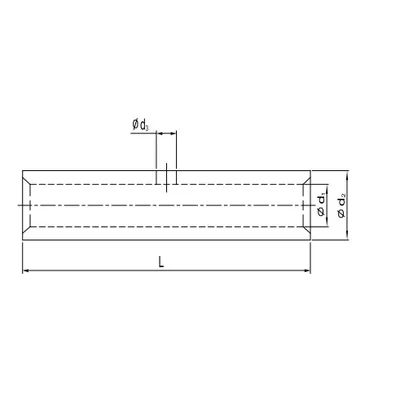

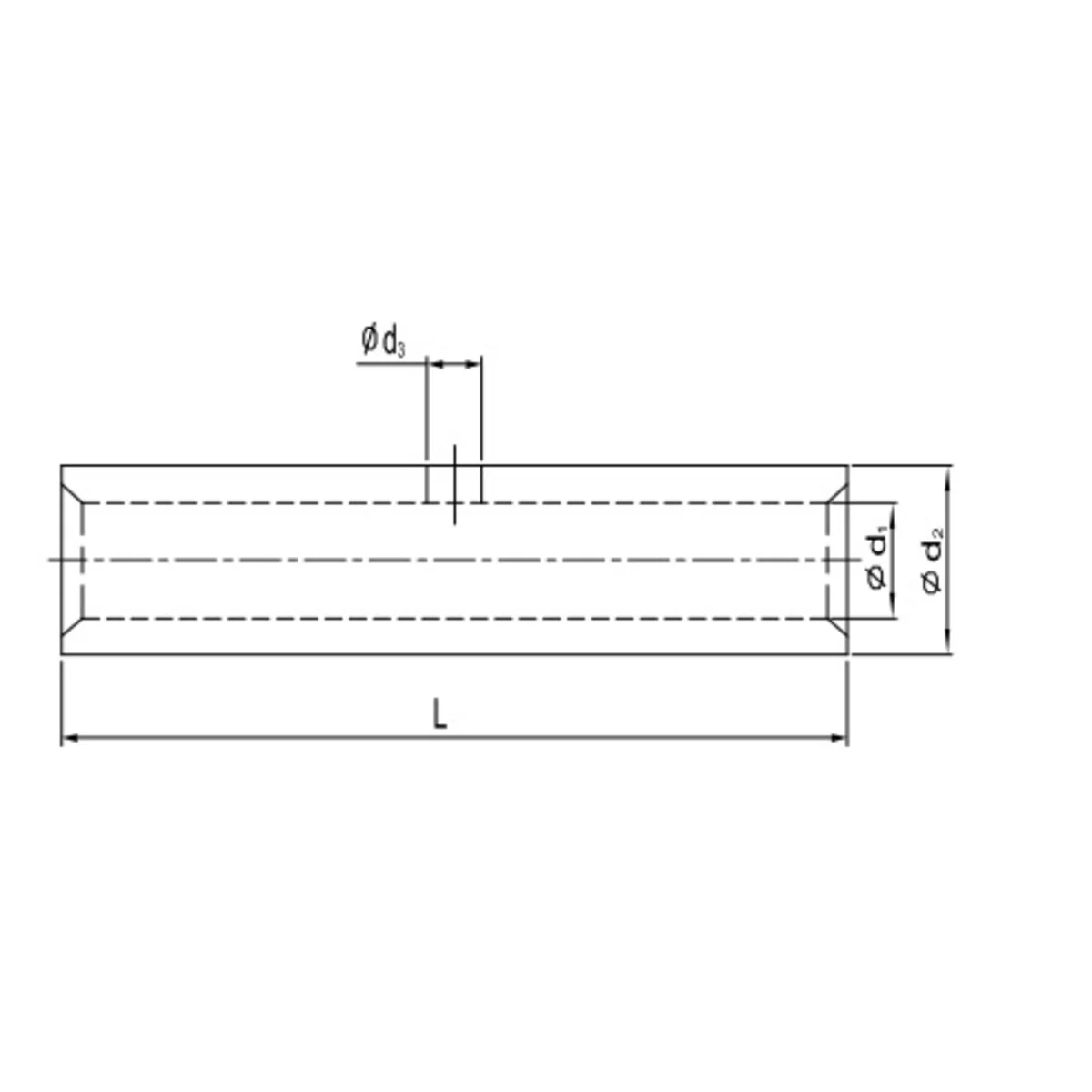

Technical data

  • Length [mm]
    122
  • Inner diameter [mm]
    16.3
  • cross section [mm²]
    150
  • Material
    Aluminum
  • Outer diameter [mm]
    25.5
