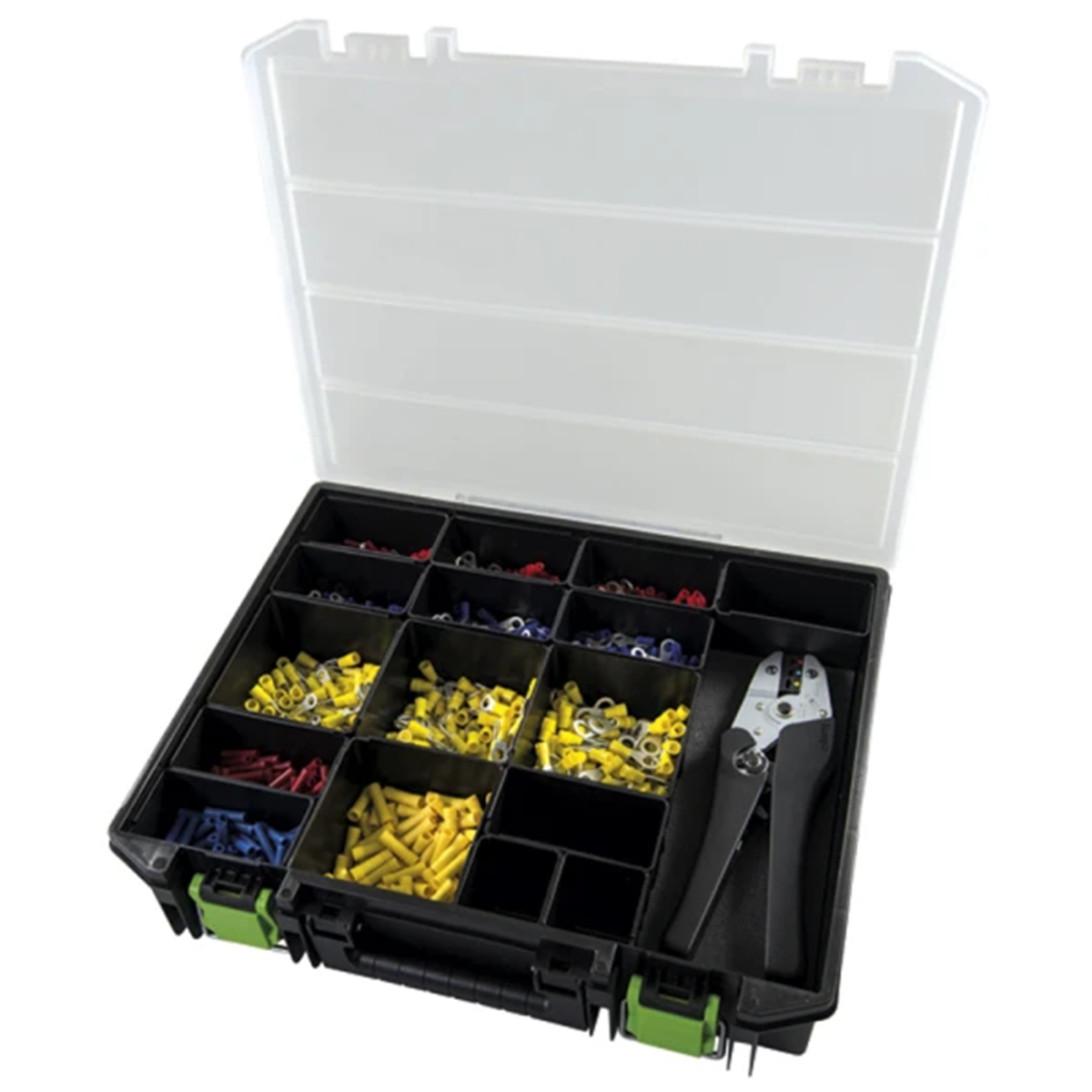

A range of lug terminals and insulated connectors 260765

Haupa 260765- Assortment of ferrule terminals

Content:

1200 crimp terminals.
One crimp, insulated terminals, (Art. 210761) with a crimping range of 0.5 - 6.0 mm²
In a plastic assortment box.

• 100 terminals Insulated ring terminals 0.5-1.0 (wire cross-section) M4 Art.260256
• 100 Insulated ring terminals 0.5-1.0 (wire cross-section) M5 Art .260258
• 100 Insulated lug terminals 0.5-1.0 (wire cross section) M6 Art.260260
• 100 Insulated lug terminals 1 .5-2.5 (wire cross-section) M4 Art.260270
• 100 Insulated ring terminals 1.5-2.5 (wire cross-section) M5 Art. 260272
• 100 Insulated ring terminals 1.5-2.5 (wire cross section) M6 Art.260274
• 100 Insulated ring terminals 4, 0-6.0 (wire cross-section) M5 Art.260286
• 100 Insulated lug terminals 4.0-6.0 (wire cross-section) M6 Art.260288  ;
• 100 Insulated ring terminals 4.0-6.0 (wire cross section) M8 Art.260290
• 100 Insulated terminals 0.5-1, 0 (wire cross-section) Art.260350
• 100 Insulated connectors 1.5-2.5 (wire cross-section) Art.260352
• 100 Insulated connectors 4.0-6.0 (cable cross section) Art.260354

Dimensions: 420 x 350 x 60 mm
